Technical Specifications
| Item | Specification |
|---|---|

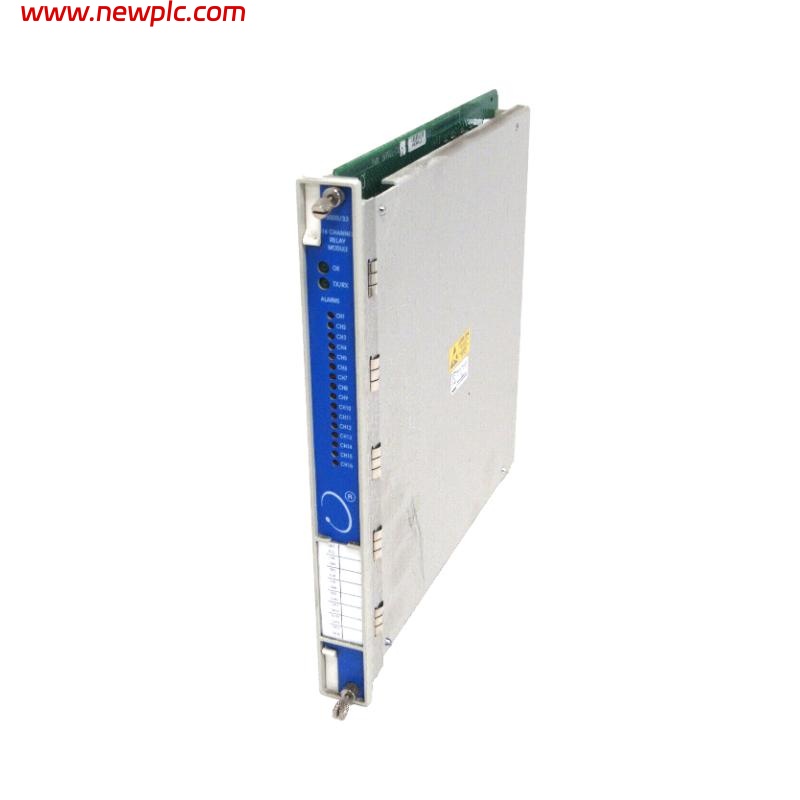

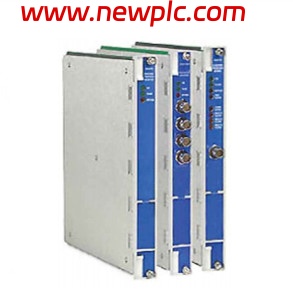

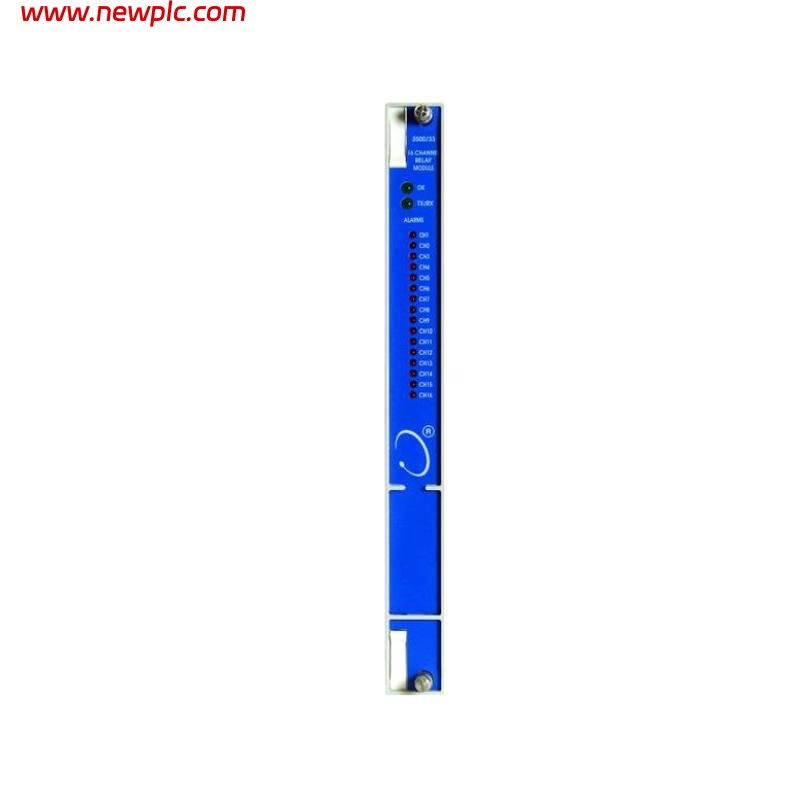

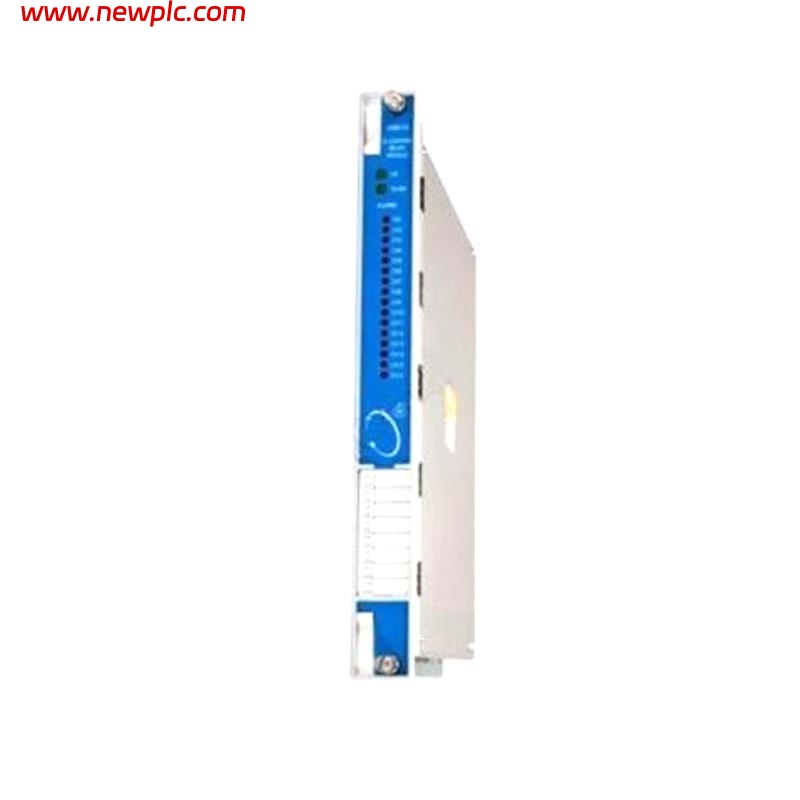

| Model | Bently Nevada 3500/33‑01‑02 |
| Type | Transducer Input Module |
| Product Category | Machinery Protection & Condition Monitoring Module |
| Product Family | Bently Nevada 3500 Series |
| Function | Conditions and routes vibration/displacement signals from sensors |
| Sensor Compatibility | Eddy‑current proximity probes, velocity transducers, speed pickups |
| Signal Conditioning | Filtering, scaling, and analog conditioning of sensor inputs |
| Output Interface | Process values and alarm/trip logic via 3500 rack backplane |
| Protection Support | Works with system logic for alert and trip thresholds |
| Power Supply | From 3500 rack backplane |
| Isolation | Galvanic isolation between sensor inputs and logic circuits |
| Status Reporting | Module health/status via system interface and rack indicators |
| Mounting Method | 3500 rack slot installation |
| Application Environment | Industrial rotating machinery monitoring |
| Operating Temperature Range | 0 °C to +60 °C |
| Dimensions | 160 mm × 120 mm |
| Weight | 0.25 kg |
FAQ
FAQ
Q1: What is the main function of the 3500/33‑01‑02 module?
It conditions vibration and speed sensor signals and delivers them for monitoring and protection in a 3500 system.
Q2: What types of sensors can be connected?
It supports eddy‑current probes, velocity transducers, and speed pickups.
Q3: How does this module interface with the 3500 system?
It communicates sensor data and status through the 3500 rack backplane to the monitoring system.
Q4: Can this module be used for protection logic?
Yes, its processed signals can be utilized by system thresholds for alert and trip actions.
Q5: What power supply does the module use?
It is powered from the 3500 rack backplane.
Q6: Does the module provide electrical isolation?
Yes, it provides galvanic isolation between the inputs and logic circuitry.
Q7: Where is the module installed?
It is installed in a dedicated slot in a 3500 monitoring rack.
Q8: What are the dimensions and weight of the 3500/33‑01‑02?
Dimensions are 160 mm × 120 mm and weight is 0.25 kg.
