Technical Specifications
| Item | Specification |
|---|---|

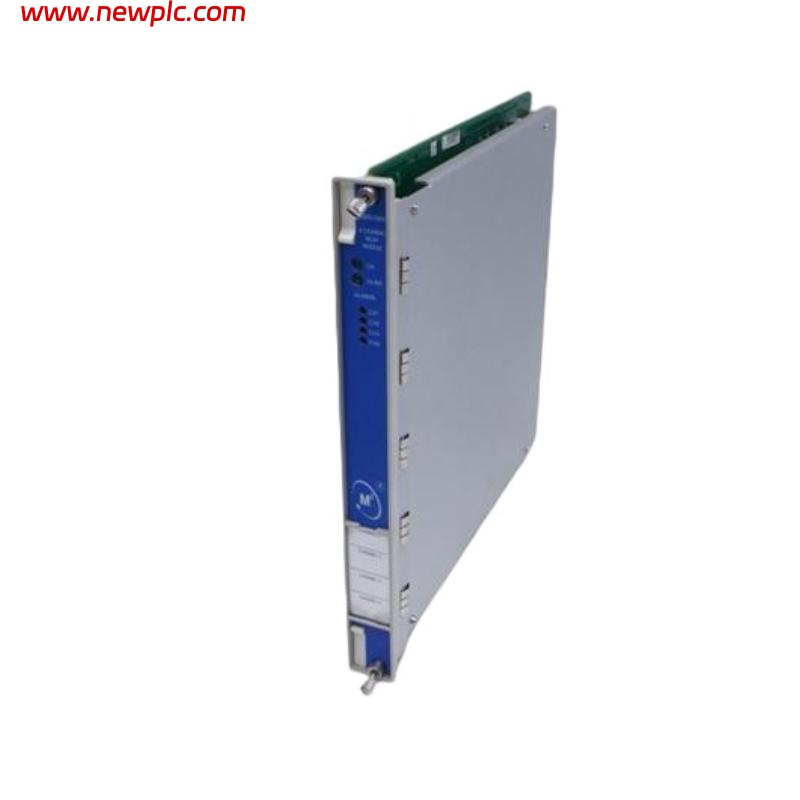

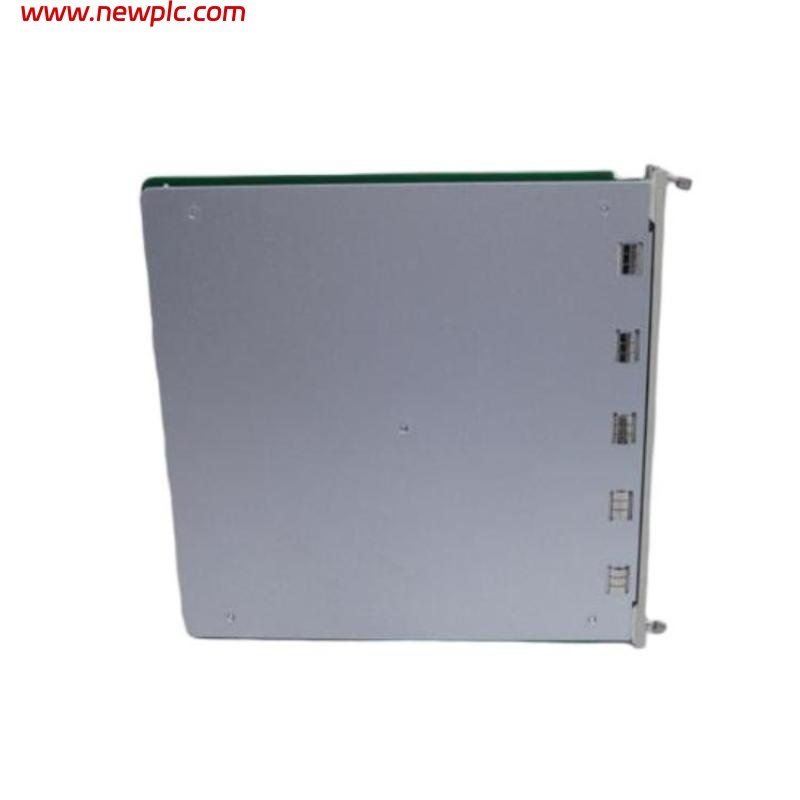

| Product Model | Bently Nevada 3500/33-01-CN |
| Product Type | 16-Channel Relay Module |
| Channel Count | 16 relay output channels |
| Relay Type | Form A (SPST) electromechanical relays |
| Contact Rating | 5 A @ 30 VDC or 250 VAC (resistive load) |
| Response Time | <10 ms typical |
| Isolation | 1000 V RMS between channels and system ground |
| System Compatibility | Fully compatible with Bently Nevada 3500 Machinery Protection System |
| Communication Interface | Backplane bus communication |
| Power Supply | Supplied through the 3500 rack |
| Operating Temperature Range | –40 °C to +85 °C |
| Storage Temperature Range | –50 °C to +100 °C |
| Dimensions | 241 x 24.4 x 242 mm |
| Weight | 0.7 kg |
| Mounting Type | Plug-in rack module |
| Protection Class | IP20 (for control cabinet use) |
FAQ
FAQ
Q1: What is the main function of the 3500/33-01-CN module?
A1: It provides 16 relay outputs for alarm and trip functions within the Bently Nevada 3500 monitoring system.
Q2: What type of relays are used in this module?
A2: It uses Form A (SPST) electromechanical relays for reliable signal switching.
Q3: How many output channels are available?
A3: The module supports 16 independent relay output channels.
Q4: What is the maximum contact rating per relay?
A4: Each relay can handle up to 5 A at 30 VDC or 250 VAC resistive load.
Q5: Can this module be used in redundant configurations?
A5: Yes, it supports redundant alarm and trip logic when configured within the 3500 system.
Q6: What are the dimensions and weight of the module?
A6: Dimensions are 241 x 24.4 x 242 mm, with a weight of 0.7 kg.
Q7: How is the module powered?
A7: It is powered directly from the 3500 rack backplane, requiring no external power.
Q8: What environments is this module suitable for?
A8: It is designed for use in industrial control cabinets with IP20 protection rating.
