Technical Specifications
| Parameter | Description |
|---|---|

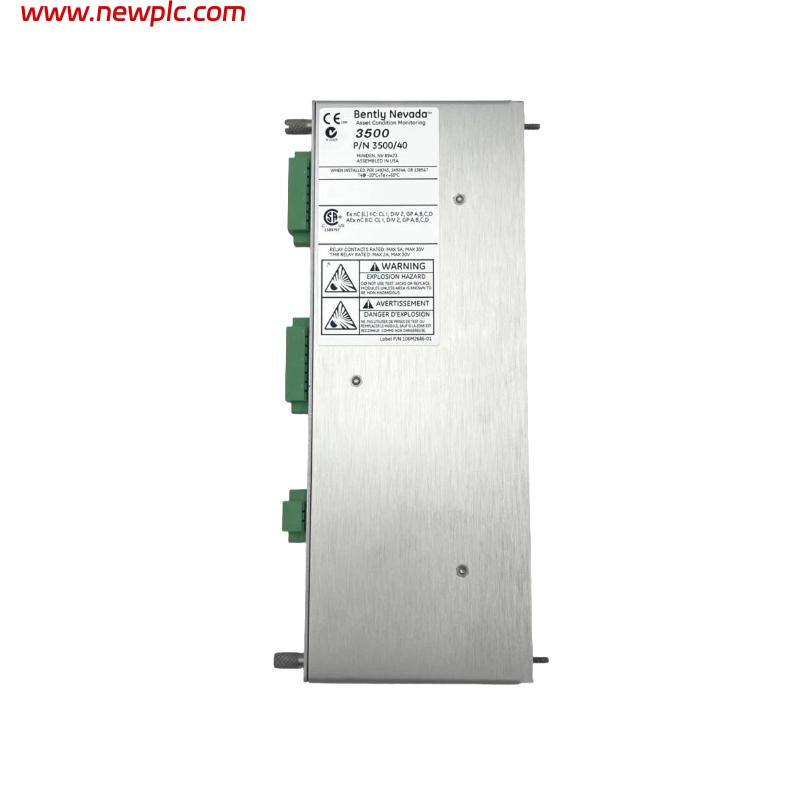

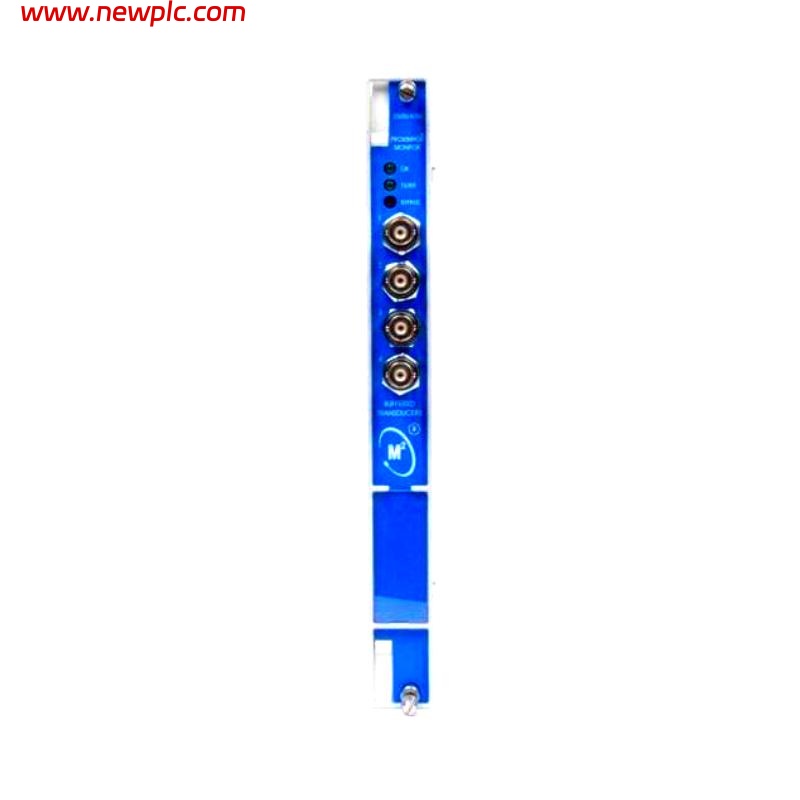

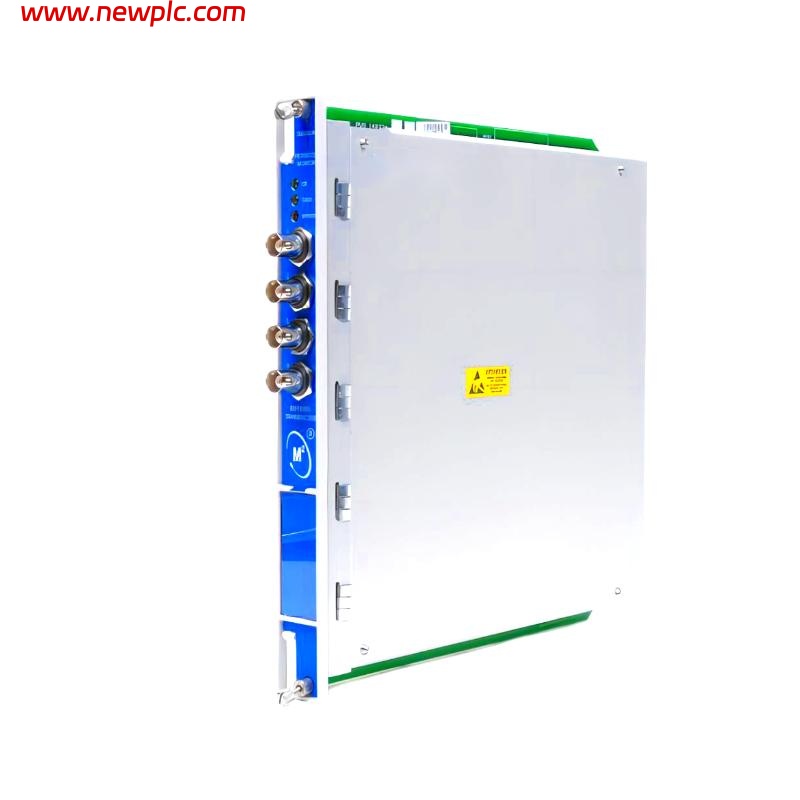

| Model | Bently Nevada 3500/40 176449-01 + 125680-01 Four-Channel Proximitor Monitor |
| Input Channels | Accepts 1 to 4 proximity transducer signals |
| Power Consumption | 7.7 W (typical) |
| Input Impedance | 10 kΩ (Proximitor & acceleration inputs) |
| Sensitivity | Radial Vibration / Thrust / Eccentricity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil) Differential Expansion: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil) REBAM: 40 mV/μm (1000 mV/mil) or 80 mV/μm (2000 mV/mil) |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 VDC |
| Frequency Response | Radial Vibration: 4 Hz–4 kHz or 1 Hz–600 Hz (Direct) Gap Filter: -3 dB at 0.09 Hz |
| Accuracy | ±0.33% typical, ±1% maximum (Direct & Gap) |
| Alarm Setpoints | Adjustable 0–100% full-scale, accuracy ±0.13% |
| Operating Temperature | -30°C to +65°C (Internal/External Termination I/O) 0°C to +65°C (Internal Barrier I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
FAQ
FAQ
Q1: What is the main function of the 3500/40 Four-Channel Proximitor Monitor?
A1: It receives, conditions, and monitors vibration and displacement signals from proximity probes, providing machine protection based on user-defined alarm thresholds.
Q2: How many input signals can the module accept?
A2: It can accept up to 4 proximity probe inputs.
Q3: What is the typical power consumption of this unit?
A3: The typical power consumption is 7.7 W.
Q4: What is the input impedance of this module?
A4: The input impedance is 10 kΩ.
Q5: What is the accuracy of the alarm setpoints?
A5: Alarm setpoint accuracy is ±0.13%.
Q6: What is the operating temperature range?
A6: -30°C to +65°C for Internal/External Termination I/O modules, 0°C to +65°C for Internal Barrier I/O modules.
Q7: What are the physical dimensions and weight?
A7: The dimensions are 241.3 × 24.4 × 241.8 mm, and the weight is 0.91 kg.
Q8: Does it support multiple measurement modes?
A8: Yes, it supports multiple measurement functions including radial vibration, eccentricity, thrust position, differential expansion, and REBAM.
