Technical Specifications
| Parameter | Description |
|---|---|

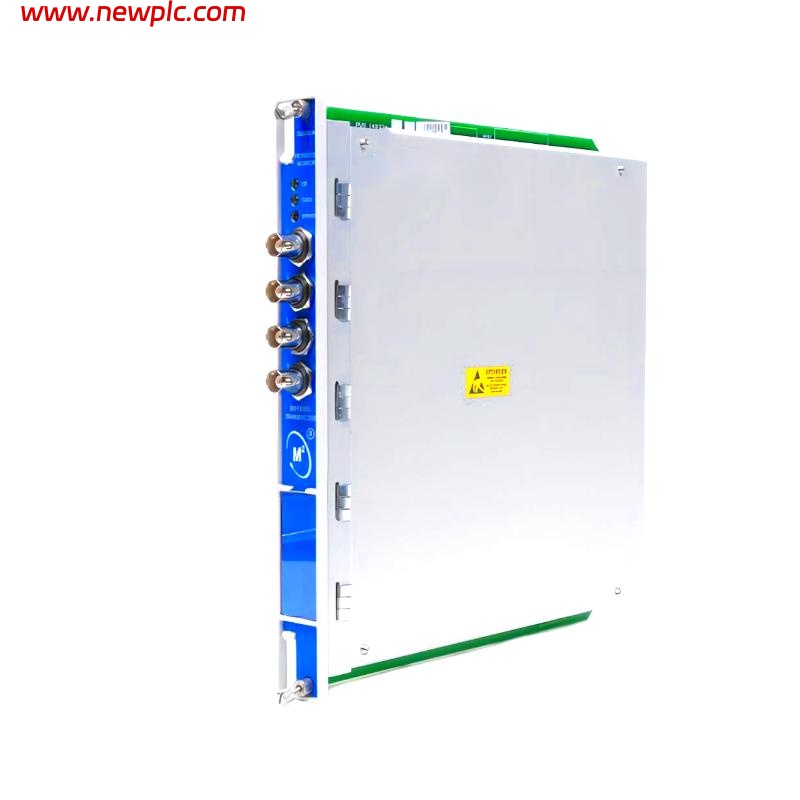

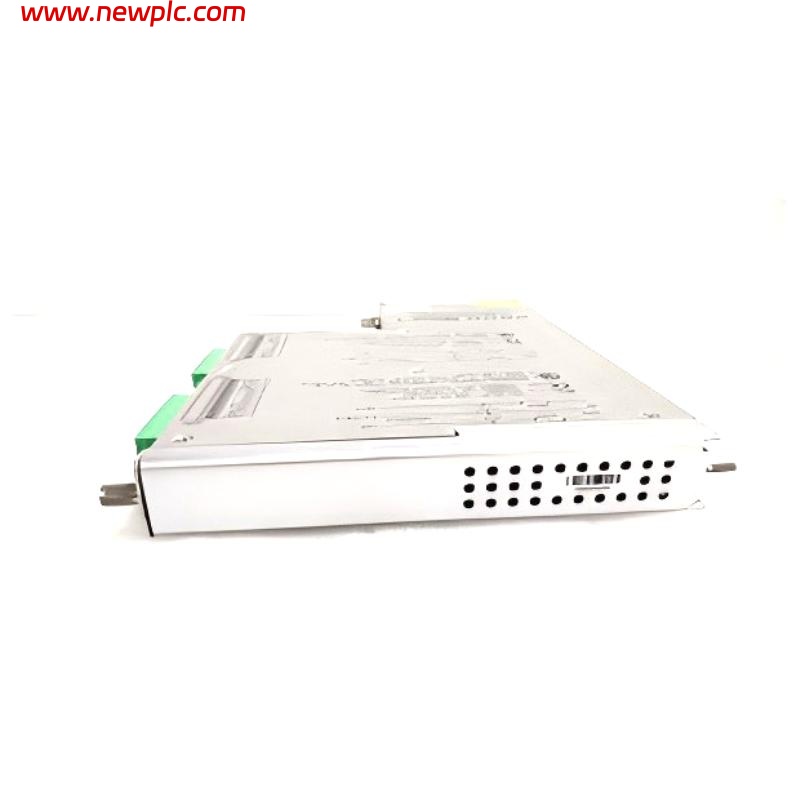

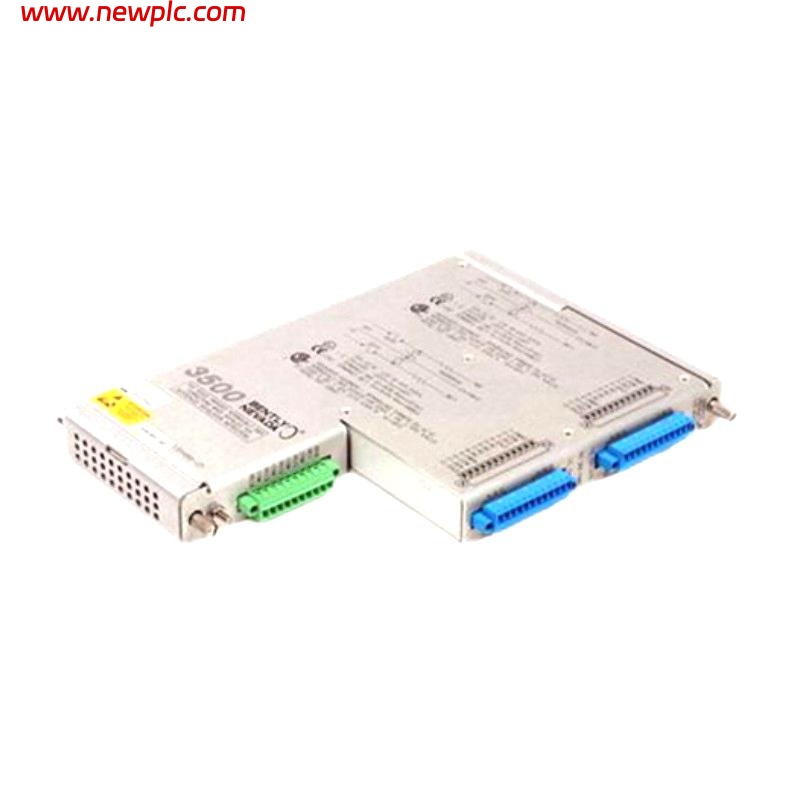

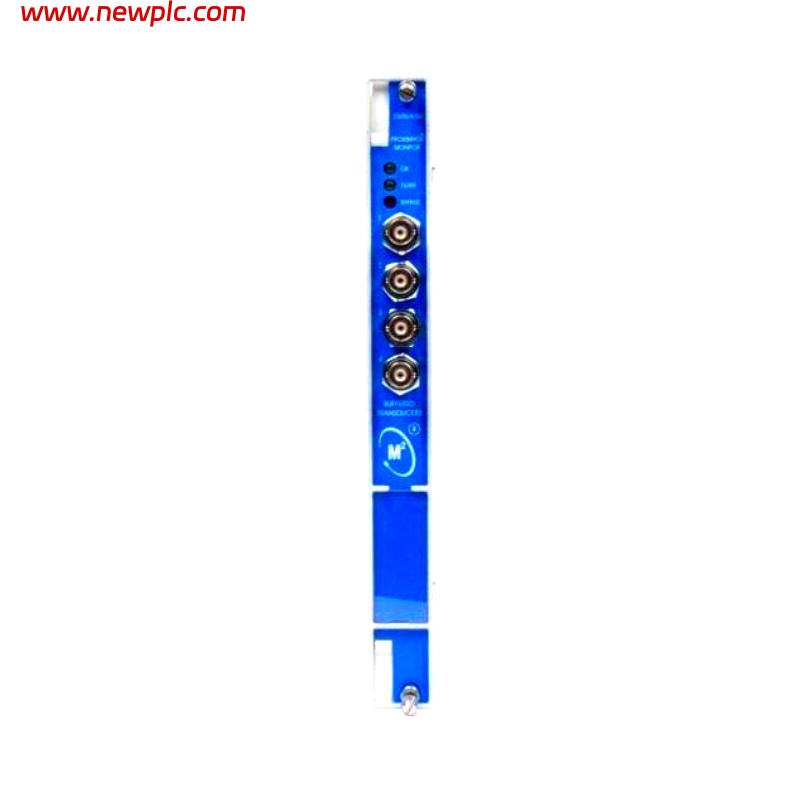

| Model | Bently Nevada 3500/40 176449-01 + 135489-04 Four-Channel Proximitor Monitor |
| Input Channels | 1 to 4 proximity transducer signals |
| Power Consumption | 7.7 W (typical) |
| Input Impedance | 10 kΩ |
| Sensitivity | Radial/Thrust/Eccentricity: 3.94 mV/μm or 7.87 mV/μm; Differential Expansion: 0.394 mV/μm or 0.787 mV/μm; REBAM: 40 mV/μm or 80 mV/μm |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 VDC |
| Accuracy | Within ±0.33% FS typical, ±1% maximum (varies by mode) |
| Environmental Limits | Operating Temperature: -30°C to +65°C (standard), 0°C to +65°C (with barrier); Storage Temperature: -40°C to +85°C; Humidity: 95% non-condensing |
| Physical Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| Rack Space Requirement | 1 full-height front slot (monitor) and 1 full-height rear slot (I/O module) |
FAQ
FAQ
Q1: What type of input signals does the 3500/40 monitor accept?
A1: It accepts 1 to 4 proximity transducer signals.
Q2: What is the primary function of this monitor?
A2: It measures vibration and position parameters, compares them to alarm setpoints, and provides machinery protection.
Q3: Can each channel be configured independently?
A3: Channels are configured in pairs, with each pair capable of performing one measurement function.
Q4: What are the typical measurement functions available?
A4: Radial vibration, thrust position, eccentricity, differential expansion, and REBAM.
Q5: What is the typical power consumption?
A5: 7.7 watts.
Q6: What is the output impedance of the buffered transducer outputs?
A6: 550 ohms.
Q7: What environmental conditions can it operate under?
A7: Operating temperature from -30°C to +65°C (standard), 0°C to +65°C (barrier option), with up to 95% non-condensing humidity.
Q8: What is the size and weight of the monitor module?
A8: 241.3 × 24.4 × 241.8 mm and 0.91 kg.
