Technical Specifications
| Parameter | Description |
|---|---|

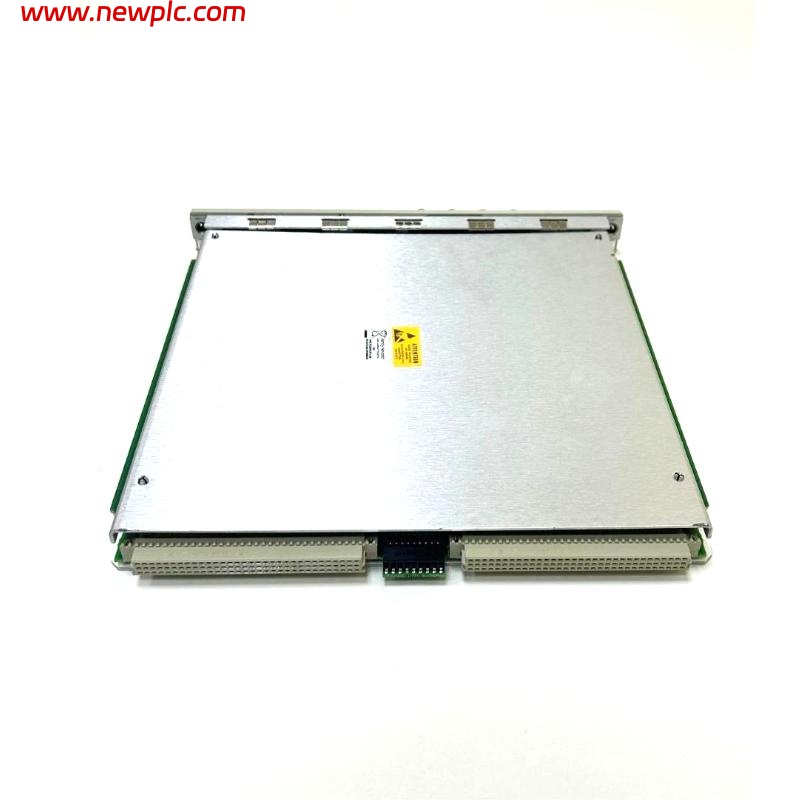

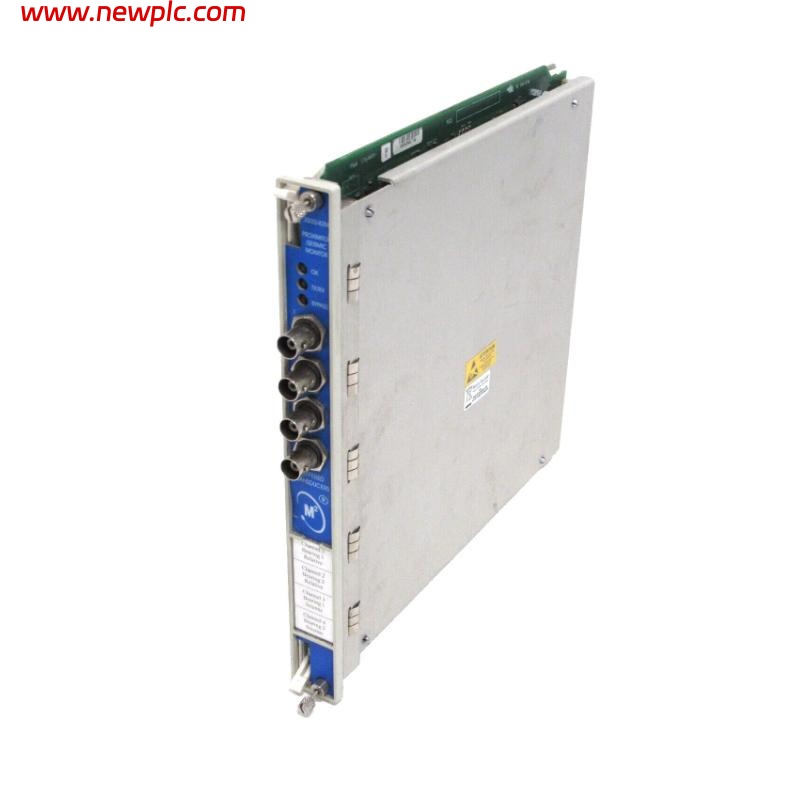

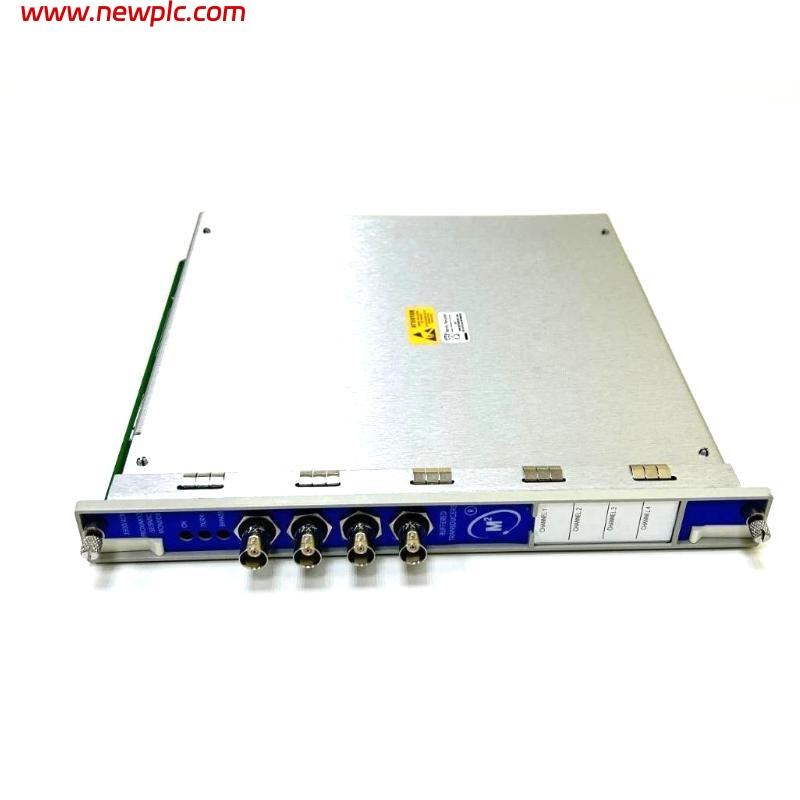

| Product Model | Bently Nevada 3500/42-04-02 3500 Series Proximitor Seismic Monitor |
| Function | Four-channel monitor for radial vibration, thrust position, eccentricity, differential expansion, acceleration, and velocity measurements |
| Input Types | Proximitor and seismic transducers |
| Compatible Transducers | 3300, 7200 Series Proximitors; 3000 Series; RAM; Velomitor series; High Temperature Velomitor; acceleration and velocity sensors |
| Alarm Types | Alert (Alarm 1) and Danger (Alarm 2) |
| Alarm Delay | Configurable from 1 to 60 seconds (Alert and Danger); 100 ms option for Danger |
| Output | 4–20 mA proportional to measured value; OK, Alert, Danger, and Bypass status |
| Configuration | Via 3500 Rack Configuration Software |
| Power Supply | Supplied by 3500 rack |
| Installation | Fits in 3500 rack slots 2–15 |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
FAQ
FAQ
Q1: What is the main application of the 3500/42-04-02?
A1: It is used for monitoring and protecting rotating machinery by continuously comparing measurements with preset alarm limits to trigger alerts.
Q2: What types of sensors does it support?
A2: It supports Bently Nevada Proximitor displacement sensors, accelerometers, and velocity sensors including 3300, 7200, and 3000 series.
Q3: How many parameters can it monitor simultaneously?
A3: Up to four channels, with each channel configurable for different monitoring types such as radial vibration, thrust position, and eccentricity.
Q4: What are the key alarm features?
A4: Dual-level alarms (Alert and Danger), with adjustable delays and an optional 100 ms fast trip for Danger alarms.
Q5: How is the module configured?
A5: Using the 3500 Rack Configuration Software to set channel type, alarm values, delays, and sensor type.
Q6: What is the output signal format?
A6: 4–20 mA signal proportional to the measured value, along with OK, Alert, Danger, and Bypass status indications.
Q7: What installation precautions should be taken?
A7: Install in slots 2–15 of the 3500 rack and avoid electrostatic discharge damage to the circuit board.
Q8: Does it support redundant configuration?
A8: Yes, it supports Triple Modular Redundant (TMR) configuration for increased reliability and prevention of single-point failures.
