Technical Specifications
| Parameter | Description |
|---|---|

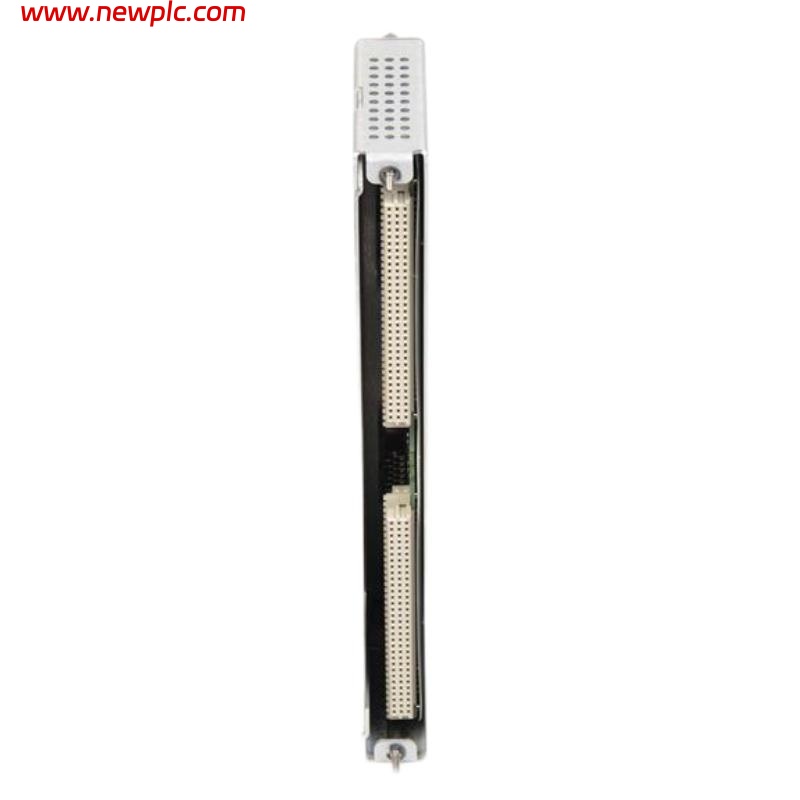

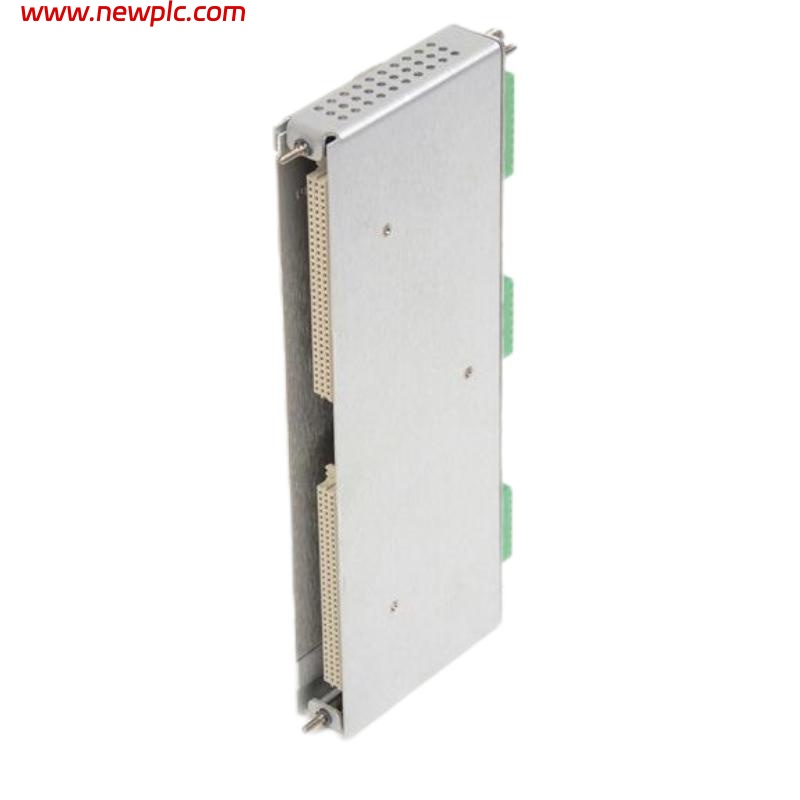

| Model Number | 3500/42 138708-01 |
| Product Type | Shaft Absolute I/O Module |
| Input Channels | 2 independent channels |
| Measurement Type | Shaft absolute vibration and position |
| Input Signal | Proximitor® sensor signals |
| Output | 4–20 mA proportional output per channel |
| Power Supply | Supplied by 3500 rack backplane |
| Communication Interface | Direct interface with 3500/22M or 3500/20 modules |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 95% non-condensing |
| Dimensions | 241.3 × 24.4 × 163.1 mm |
| Weight | 0.46 kg |
FAQ
FAQ
-
Q1: What is the primary function of the 3500/42 138708-01 module?
A1: It measures shaft absolute vibration and position, providing accurate monitoring for rotating machinery. -
Q2: Which sensors are compatible with this module?
A2: It works with Bently Nevada Proximitor® sensors for vibration and position measurement. -
Q3: How many channels does this module support?
A3: It supports two independent measurement channels. -
Q4: Does it provide an analog output?
A4: Yes, each channel offers a 4–20 mA proportional output. -
Q5: How is the module powered?
A5: It is powered through the 3500 rack backplane, requiring no separate power supply. -
Q6: Can this module operate in harsh environments?
A6: Yes, it can operate in temperatures from -30°C to +65°C and withstand high humidity. -
Q7: Is it hot-swappable in the 3500 rack?
A7: Yes, it can be replaced without shutting down the rack, minimizing downtime. -
Q8: What industries commonly use this module?
A8: It is widely used in oil & gas, power generation, petrochemical, and other rotating equipment applications.
