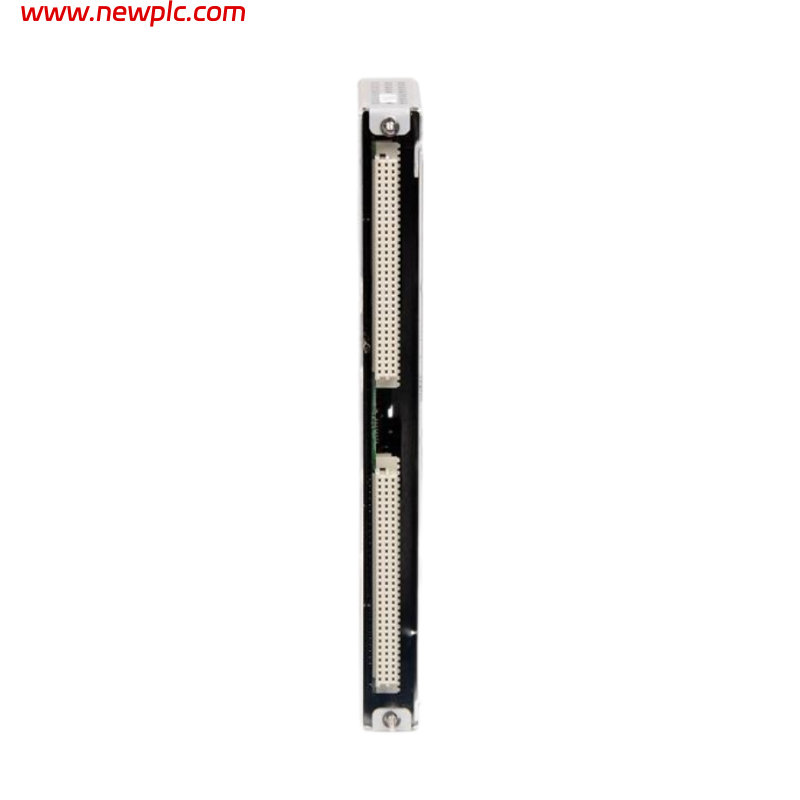

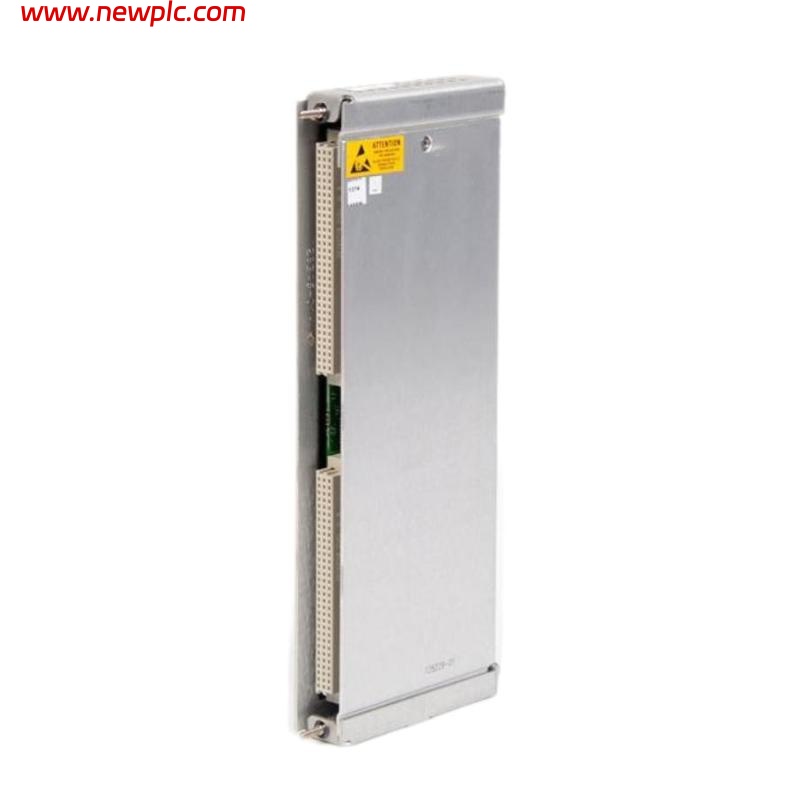

Bently Nevada 3500/42M 176449-02 3500 Series Proximitor Seismic Monitor

FAQ

Q1: What is the main function of the 3500/42M?
A1: It continuously monitors machine vibration, position, and other parameters, comparing them with alarm thresholds to provide machine protection and condition monitoring.

Q2: Which sensor types are supported?
A2: It supports Proximitor proximity probes, Velomitor velocity sensors, and acceleration transducers.

Q3: How many channels does this model have?
A3: It has 4 channels, which can be configured in pairs for different monitoring functions.

Q4: What output formats are available?
A4: Provides +4 to +20 mA recorder outputs and buffered transducer outputs.

Q5: What is the operating temperature range?
A5: -30°C to +65°C with Internal/External Termination I/O Module, 0°C to +65°C with Internal Barrier I/O Module.

Q6: What is the accuracy of alarm setpoints?
A6: The alarm setpoint accuracy is within ±0.13%.

Q7: What are the dimensions and weight?
A7: Dimensions are 241.3 × 24.4 × 241.8 mm, weight is 0.91 kg.

Q8: Which certifications does the device comply with?
A8: Complies with FCC, CE, RoHS, ABS, and DNV GL standards for industrial and marine applications.
