Technical Specifications
| Item | Specification |
|---|---|

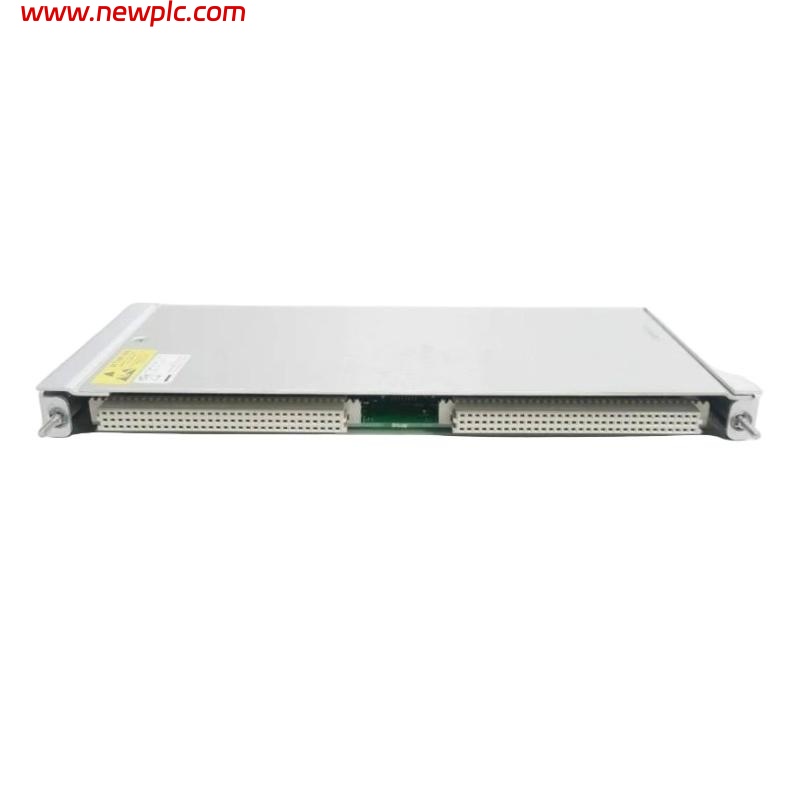

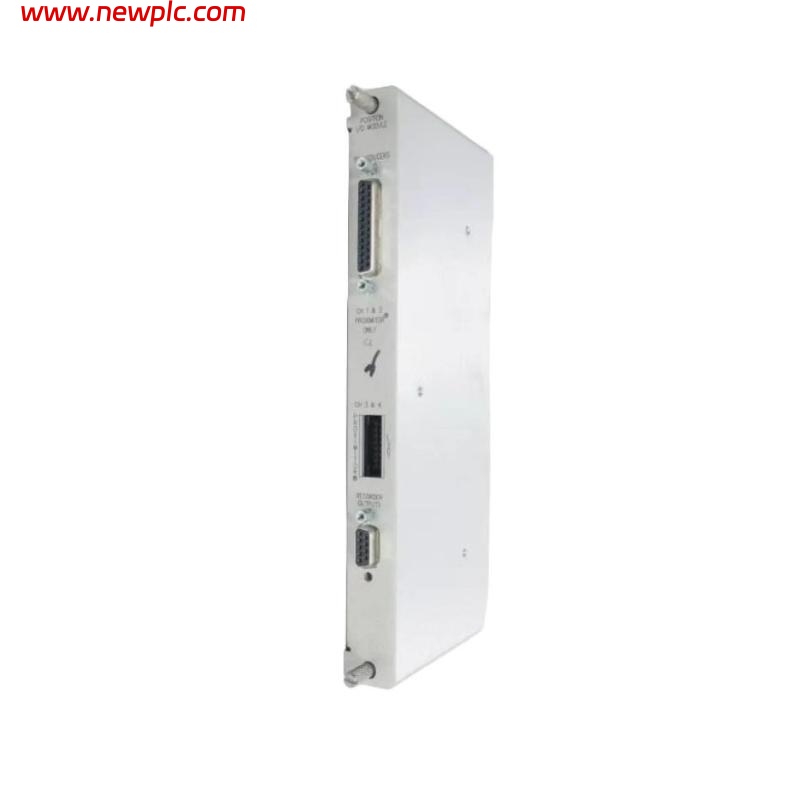

| Product Name | Bently Nevada 3500/45 Position Monitor I/O Module |
| Part Number | 135145-01 |
| System Compatibility | Bently Nevada 3500 Machinery Protection System |
| Function | Provides interface for position measurements such as radial vibration, axial position, and rotary position |
| Channels | Multiple (dependent on configuration, typically supports radial and axial probes) |
| Communication | Interfaces with the 3500/45 Position Monitor |
| Power Supply | From the rack (no external power required) |
| Operating Temperature | 0 °C to +65 °C (32 °F to 149 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Humidity | 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: What is the primary function of the Bently Nevada 3500/45 135145-01 module?
The module provides the interface for position measurements, including radial and axial position sensing, in the 3500 monitoring system.
Q2: Is this module compatible with all Bently Nevada 3500 racks?
Yes, it is fully compatible with standard 3500 racks that support the Position Monitor.
Q3: Does the module require external power supply?
No, it is powered directly through the 3500 rack.
Q4: Can it work with proximity probes for position monitoring?
Yes, it supports Bently Nevada proximity probes for accurate displacement and position measurements.
Q5: What environments is this module suitable for?
It is designed for industrial environments with operating temperatures from 0 °C to +65 °C and up to 95% non-condensing humidity.
Q6: How is this module typically used in machinery monitoring?
It is used to measure shaft position, thrust position, and other displacement-related parameters in rotating machinery.
Q7: Can the module be replaced online without shutting down the system?
Yes, with proper hot-swapping procedures, the module can be replaced without shutting down the rack.
Q8: What is the difference between part number 135137-01 and 135145-01?
Both are I/O modules for the 3500/45 Position Monitor, but they have different configuration and compatibility options depending on the monitoring setup.
