Technical Specifications
| Parameter | Description |
|---|---|

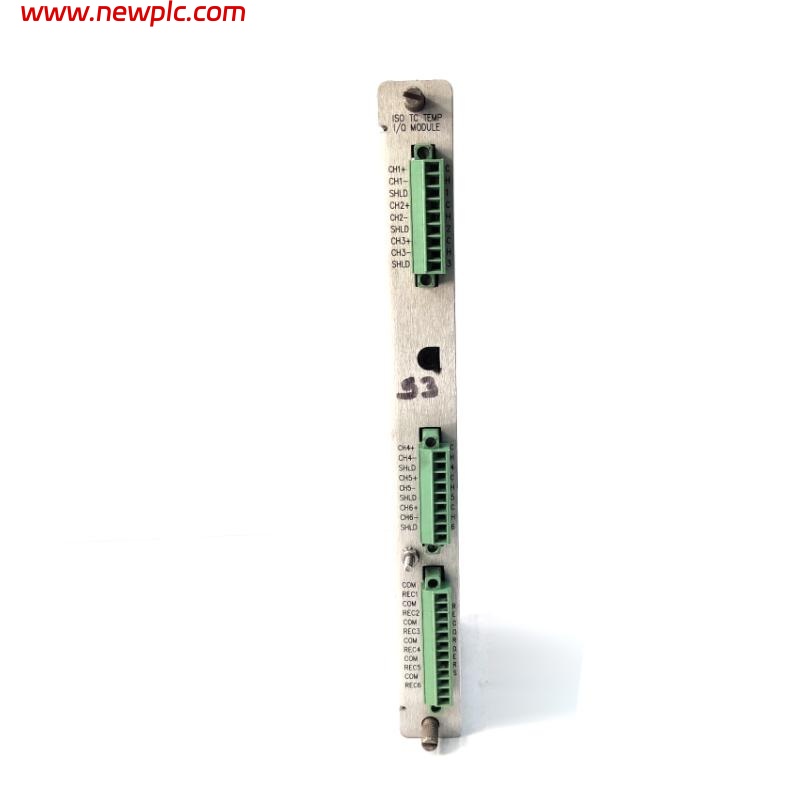

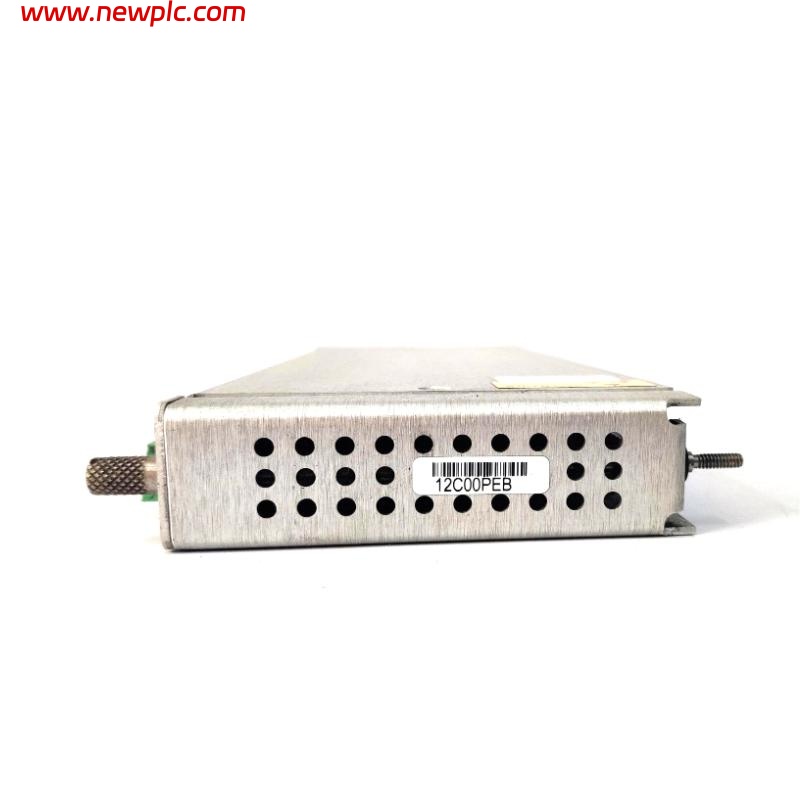

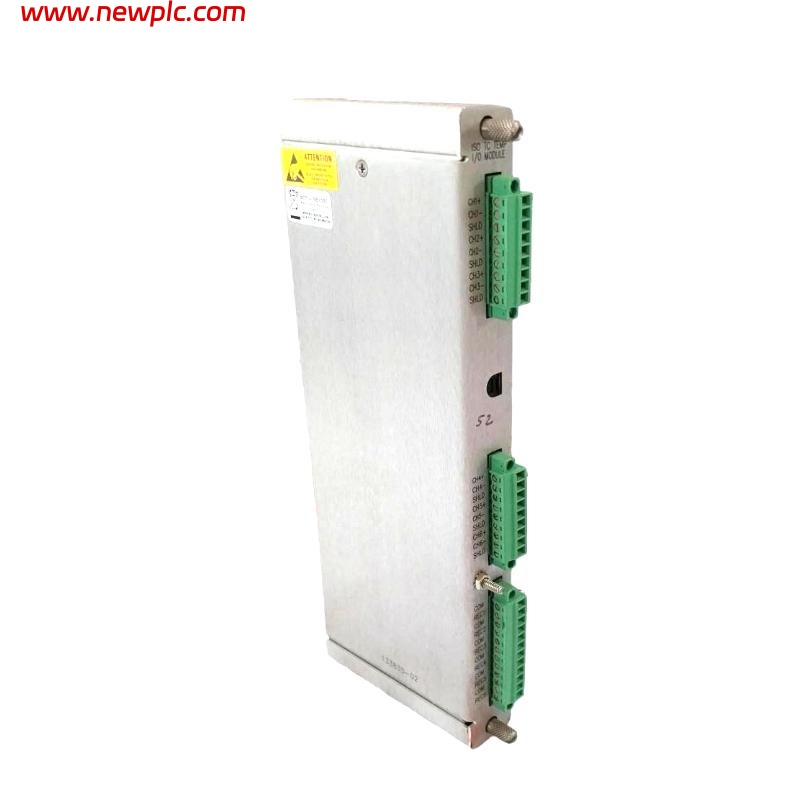

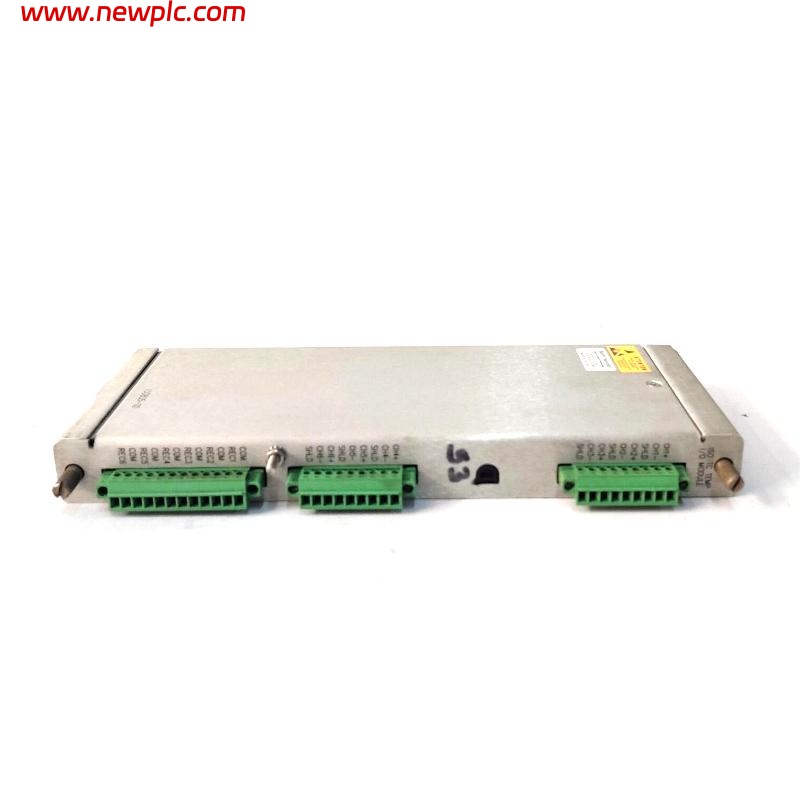

| Model Number | 3500/61 133835-02 |
| Product Type | TC Isolated I/O Module with Internal Terminations |
| Function | Provides thermocouple (TC) input signal isolation and conditioning for the Bently Nevada 3500 system |
| Input Channels | 12 independent thermocouple input channels |
| Supported Thermocouple Types | Types J, K, E, T, R, S, B, N |
| Input Range | Dependent on thermocouple type; designed for high accuracy and stability |
| Isolation Voltage | 250 V RMS channel-to-channel and channel-to-ground |
| Accuracy | ±0.1% of full scale typical |
| Resolution | 16-bit A/D conversion |
| Signal Update Rate | 100 ms per channel typical |
| Power Consumption | < 5 W |
| Operating Temperature Range | -30 °C to +65 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | Rack-mounted in 3500 system rack |
| Dimensions (W x H x D) | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.45 kg |
FAQ
FAQ
Q1: What is the primary function of the 3500/61 133835-02 TC Isolated I/O Module?
A1: It is designed to isolate, condition, and process thermocouple input signals for accurate temperature measurement in machinery protection and monitoring systems.
Q2: Which thermocouple types are compatible with this module?
A2: It supports Types J, K, E, T, R, S, B, and N thermocouples.
Q3: How many input channels does the module provide?
A3: The module offers 12 independent thermocouple input channels.
Q4: What level of electrical isolation does the module provide?
A4: It provides 250 V RMS isolation between channels and between channels and ground.
Q5: What is the typical measurement accuracy of the module?
A5: The module achieves a typical accuracy of ±0.1% of full scale.
Q6: How is the module installed within the 3500 system?
A6: It is rack-mounted within a compatible 3500 system rack with internal terminations.
Q7: What is the operating temperature range for the module?
A7: The operating temperature range is -30 °C to +65 °C.
Q8: What is the signal update rate per channel?
A8: The typical update rate is 100 ms per channel.
