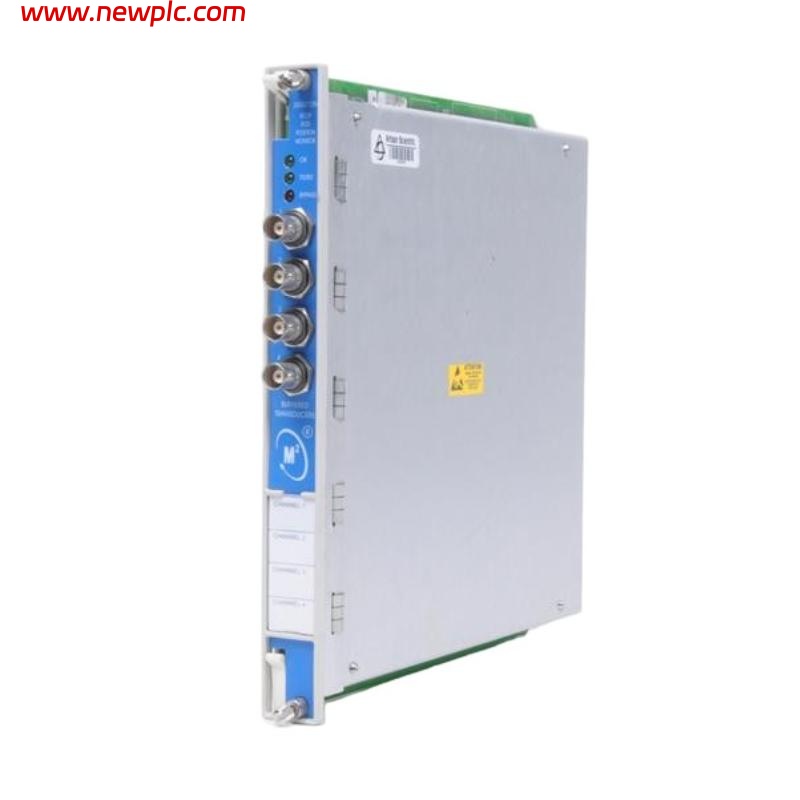

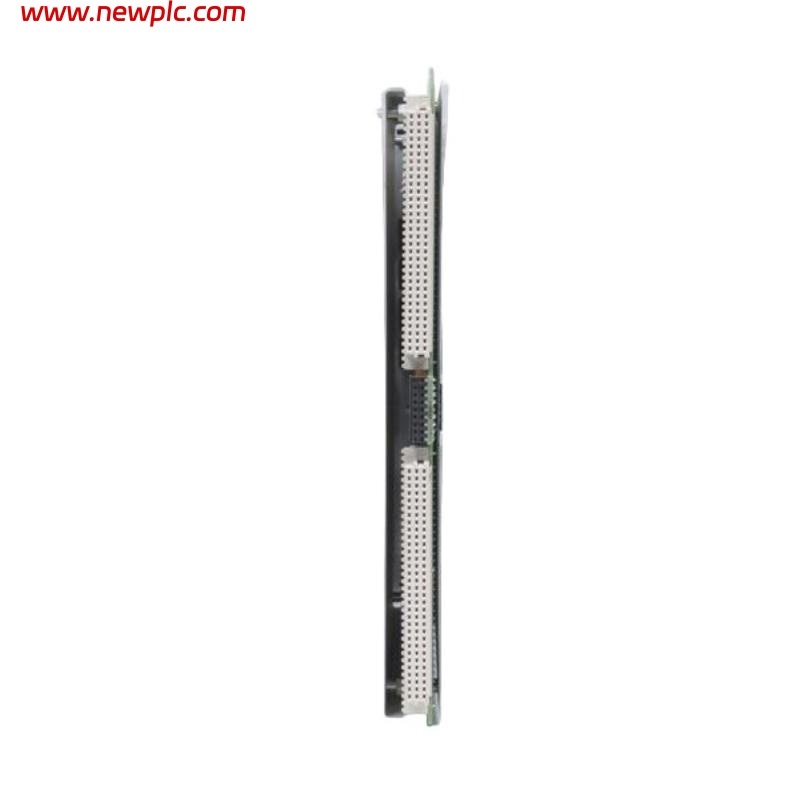

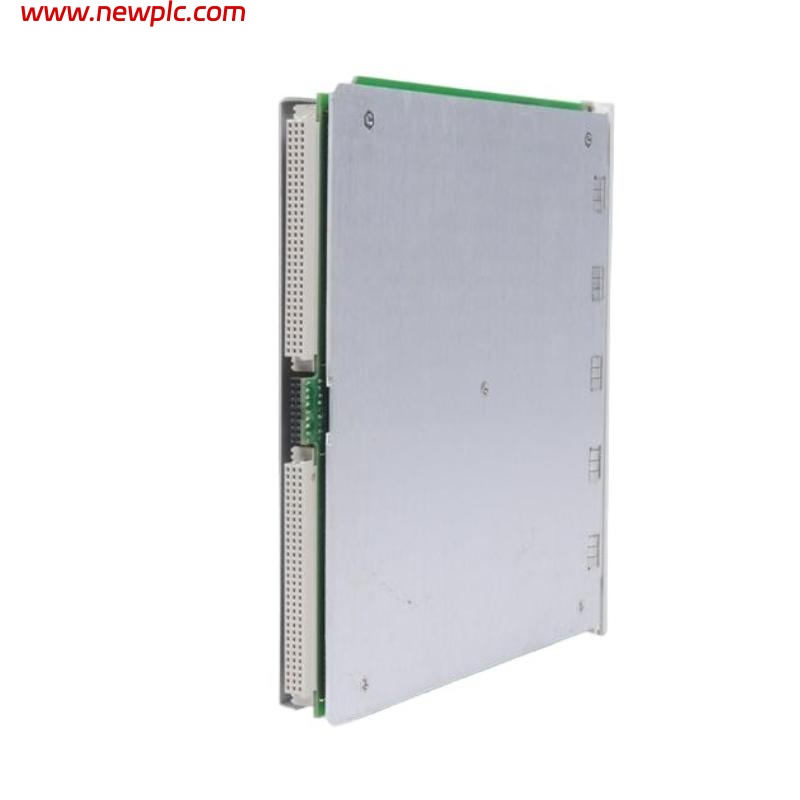

Bently Nevada 3500/72 140734-08 3500 Series Recip Rod Position Monitor

FAQ

• What types of measurements can the 3500/72M provide?
  The module provides rod position magnitude, rod angle, crank angle, peak-to-peak amplitude, gap, 1X and 2X amplitudes, instantaneous piston position, and hyper-compressor displacement.

• How is the module configured for a specific compressor application?
  Configuration is performed using the 3500 Rack Configuration Software, allowing selection of channel type, alarm setpoints, and measurement parameters.

• What is the recommended maintenance routine for this module?
  It is recommended to perform periodic channel verification and check LED indicators; modules are not field-repairable.

• What input transducers are compatible with this monitor?
  The monitor is compatible with Bently Nevada proximity probes, including the 3300 XL series, which provide linear displacement signals.

• How accurate are the rod position measurements?
  The system provides accuracy of ±0.1% of full scale across its configured measurement range.

• Can the 3500/72M detect hyper-compressor operation anomalies?
  Yes, the module can measure hyper-compressor displacement and provide early warning for abnormal operation.

• What are the power requirements for the 3500/72M?
  The module operates on -24 VDC with a nominal power consumption of 7.7 watts.

• What environmental conditions must be considered for installation?
  Standard 3500 series rack environmental conditions apply, including ambient temperature, humidity, and vibration limitations.

140734-08 3500 Series 3500/72 Bently Nevada Recip Rod Position Monitor
