Technical Specifications
| Parameter Category | Technical Description |
|---|---|

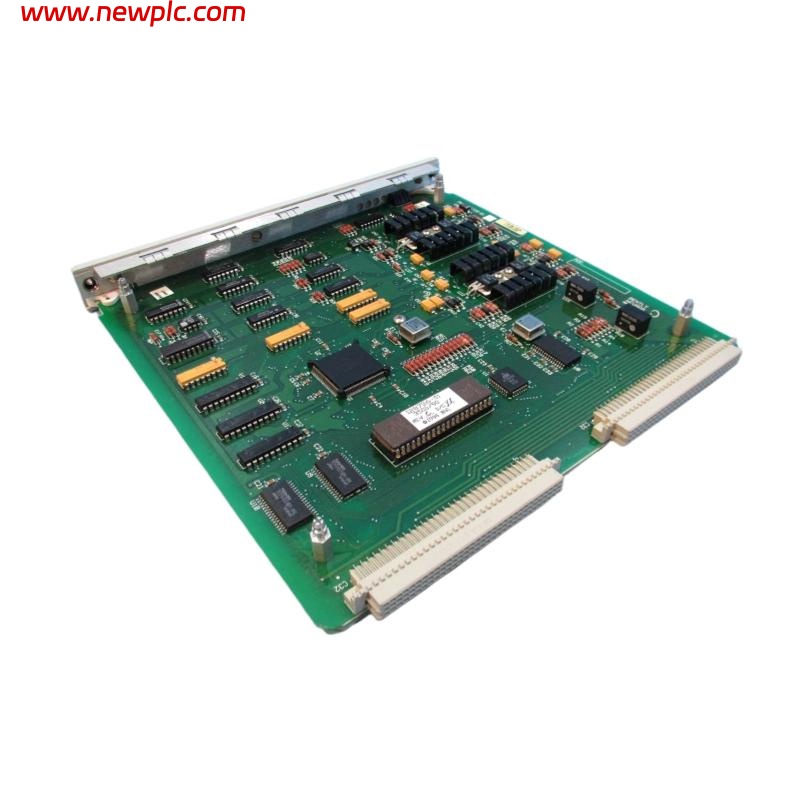

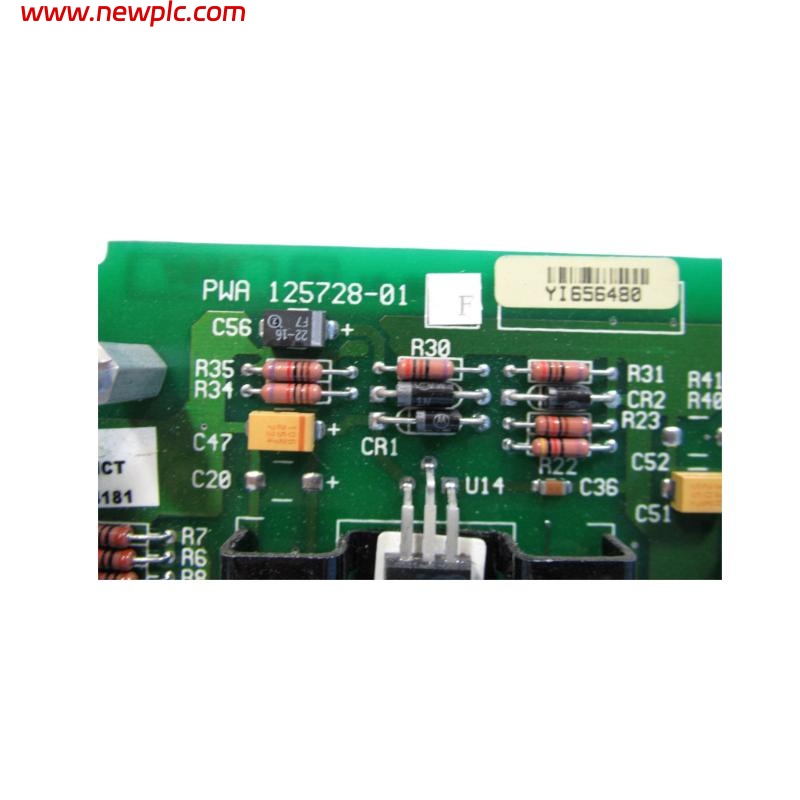

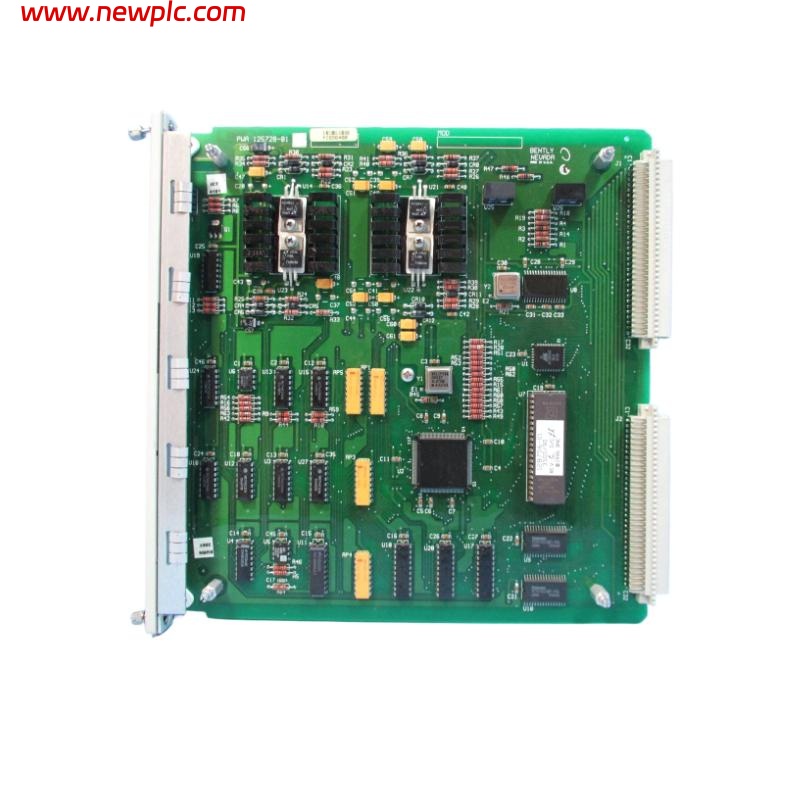

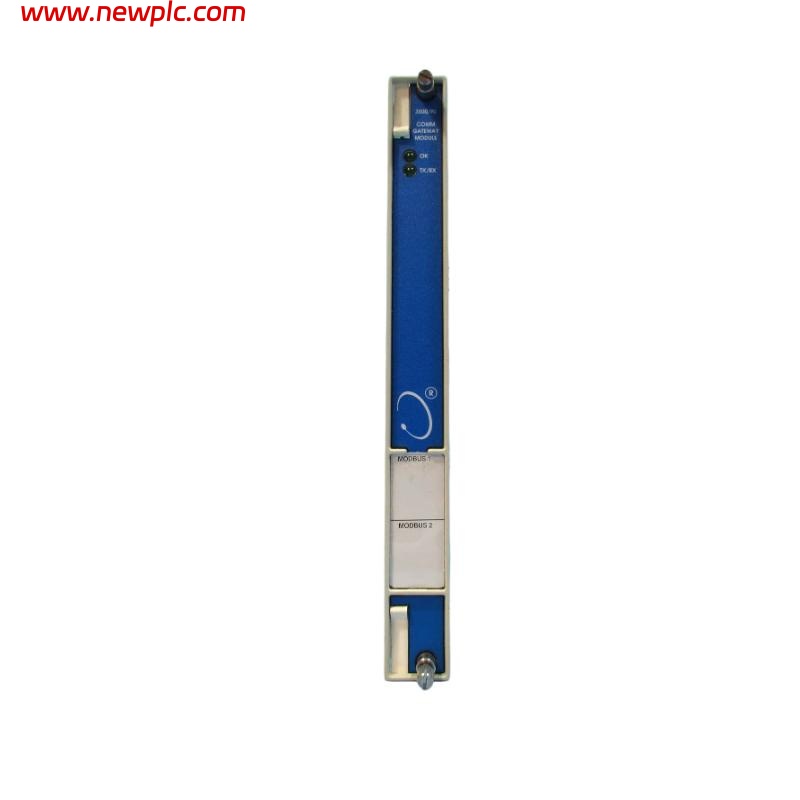

| Product Model | Bently Nevada 3500/90 125728-01 Communication Gateway Module |
| Function | Provides communication between 3500 monitoring system and external systems |
| Input Interface | Interfaces with the 3500 rack internal data bus |
| Output Interface | Ethernet (10/100 Mbps), Serial (RS232/RS422/RS485) |
| Supported Protocols | Modbus RTU, Modbus TCP, Ethernet TCP/IP, SNMP |
| Power Requirement | Powered from 3500 rack, power consumption ≤ 7 W |
| Data Update Rate | Up to once per second |
| Operating Environment | Operating temperature: 0 ~ +65°C; Storage: -40 ~ +85°C; Humidity: 95% non-condensing |
| EMC Compliance | Meets CE and FCC industrial electromagnetic compatibility standards |
| Redundancy Support | Supports dual Ethernet port redundancy |
| Diagnostic Function | Built-in self-test with communication status indicators |
| Dimensions | 160 x 160 x 120 mm |
| Weight | 0.8 kg |
FAQ
FAQ
Q1: Which communication protocols are supported?
A1: Modbus RTU, Modbus TCP, Ethernet TCP/IP, and SNMP.
Q2: What is the data update frequency?
A2: Data can be refreshed as fast as once per second.
Q3: Does the module support redundant communication?
A3: Yes, it supports dual Ethernet port redundancy.
Q4: How is the module powered?
A4: It is powered from the 3500 rack with power consumption not exceeding 7W.
Q5: How does the module perform self-diagnostics?
A5: It has built-in self-test functions and LED indicators for communication status and fault detection.
Q6: What network speed does the module support?
A6: It supports Ethernet 10/100 Mbps auto-negotiation.
Q7: What are the operating environment requirements?
A7: Operating temperature range is 0 ~ +65°C, with humidity up to 95% non-condensing.
Q8: Can the module communicate via serial ports?
A8: Yes, it supports RS232, RS422, and RS485 serial communication.
