Technical Specifications
| Parameter | Specification |
|---|---|

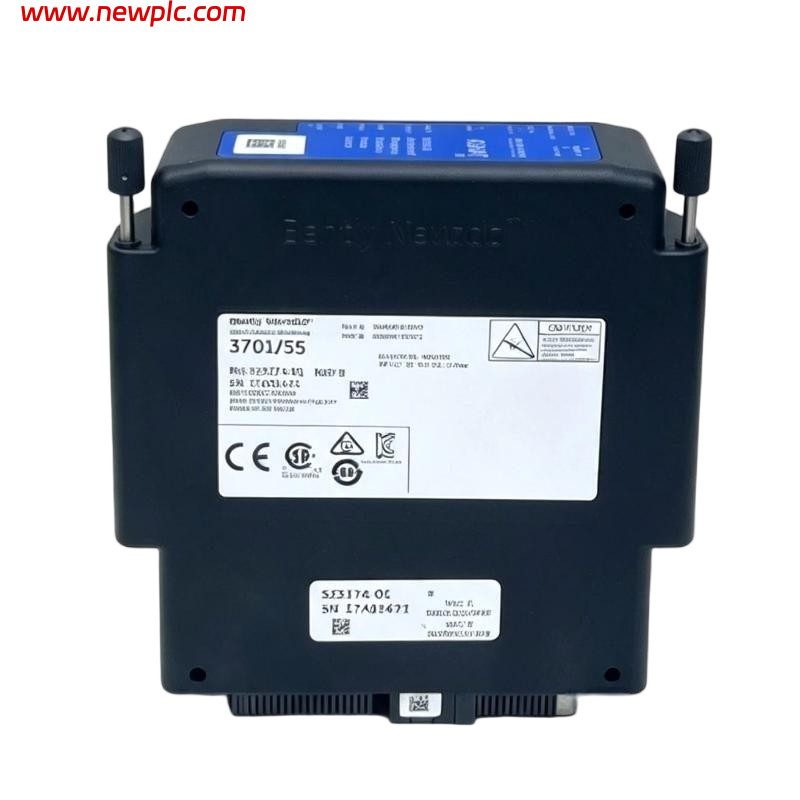

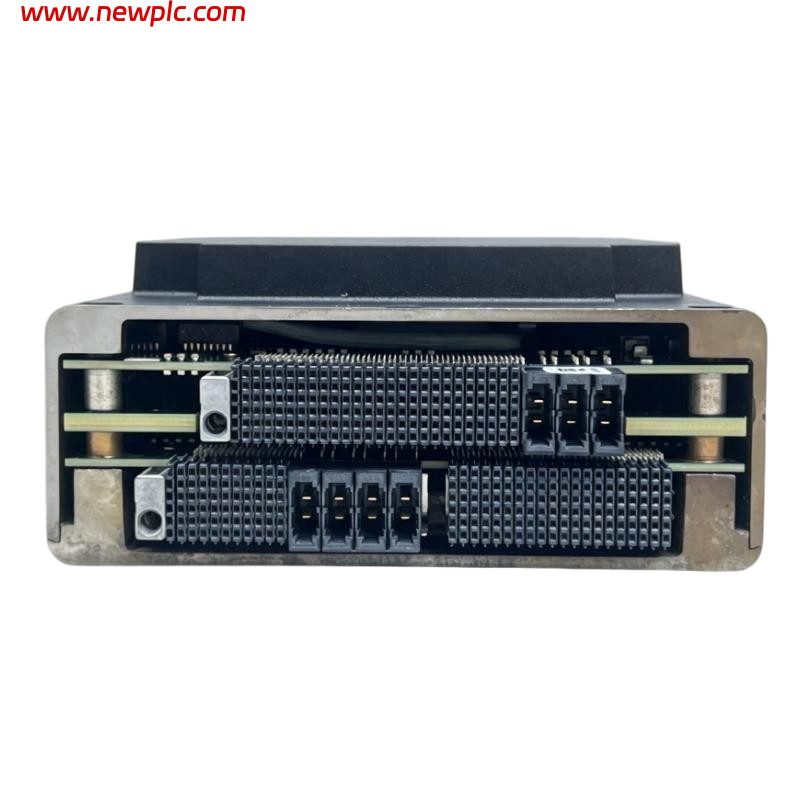

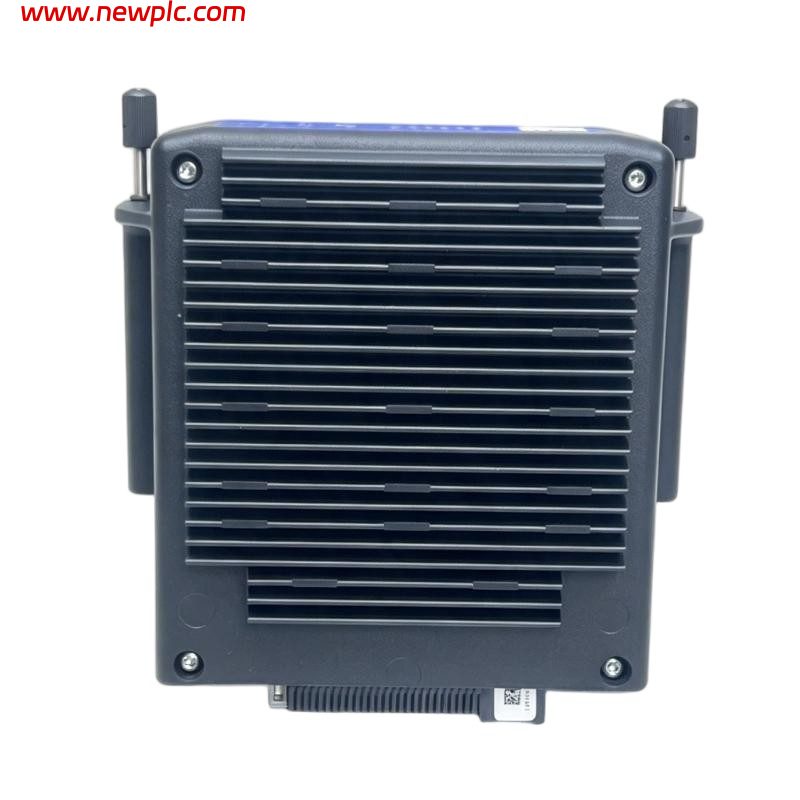

| Manufacturer | Bently Nevada |
| Part Number | 3701/55 |
| Product Series | ADAPT |
| Product Type | Emergency Shutdown Device (ESD) |
| System Type | Safety PLC / Overspeed Protection System |
| Architecture | Triple Modular Redundant (TMR) |
| Primary Function | Emergency shutdown and overspeed protection |
| Speed Inputs | 6 |
| Discrete Inputs | 32 |
| Analog Inputs | 12 |
| Trip Relay Outputs | 12 independent outputs |
| Recorder Outputs | 2 internally powered 4–20 mA outputs |
| Logic Processing Time | Approx. 2 ms |
| Relay State Change | Approx. 8 ms |
| Network Interface | Ethernet, TCP/IP / Modbus TCP |
| Ethernet Ports | 6 |
| Ethernet Speed | 10/100 Mbps |
| Configuration Software | Bently Nevada Monitor Configuration (BNMC) |
| Safety Certification | SIL 3 |
| Applicable Standards | API 670, API 612, IEC 61508 |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 0–95%, non-condensing |
| Mounting | Bulkhead mount |
| Approx. Dimensions | 293 × 254 mm (11.5 × 10 in.) |
| Approx. Weight | 5–8 kg* |
| Typical Applications | Steam turbines, gas turbines, hydro turbines, expanders and other rotating machinery |
| Product Status | Industrial machinery safety / protection system |
FAQ
FAQ
Q1: What is Bently Nevada 3701/55?
A: The 3701/55 is the ADAPT Emergency Shutdown Device (ESD), a safety PLC with integrated overspeed detection for protecting critical rotating machinery.
Q2: What is the main function of the 3701/55?
A: Its primary function is to detect dangerous operating conditions, particularly overspeed conditions, and execute the programmed shutdown logic to protect the machine.
Q3: What type of architecture does the 3701/55 use?
A: It uses a triple-modular-redundant (TMR) architecture with three CPU modules, providing high availability and fault tolerance for safety-critical applications.
Q4: How many inputs and outputs does the system support?
A: The system supports 6 speed inputs, 32 discrete inputs and 12 analog inputs, together with 12 independent trip relay outputs and two internally powered 4–20 mA recorder outputs.
Q5: How fast can the 3701/55 respond to a trip condition?
A: The nominal logic processing time is approximately 2 ms, while the relay state-change time is approximately 8 ms. This fast response is particularly important for overspeed protection.
Q6: What communication protocol does the 3701/55 use?
A: The system uses Ethernet with TCP/IP, and integration with plant controls, HMI or other automation systems can be performed through Modbus TCP. It provides six physical Ethernet interfaces.
Q7: What are the dimensions and weight of the 3701/55?
A: The published overall dimensions for the 3701/55 ESD are approximately 293 × 254 mm (11.5 × 10 in.). A practical shipping reference is approximately 5–8 kg, although the actual weight depends on the installed configuration.
Q8: Where is the 3701/55 commonly used?
A: It is designed for critical rotating equipment such as steam turbines, gas turbines, hydro turbines, expanders and other process machinery where independent overspeed protection and emergency shutdown are required.
