Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |

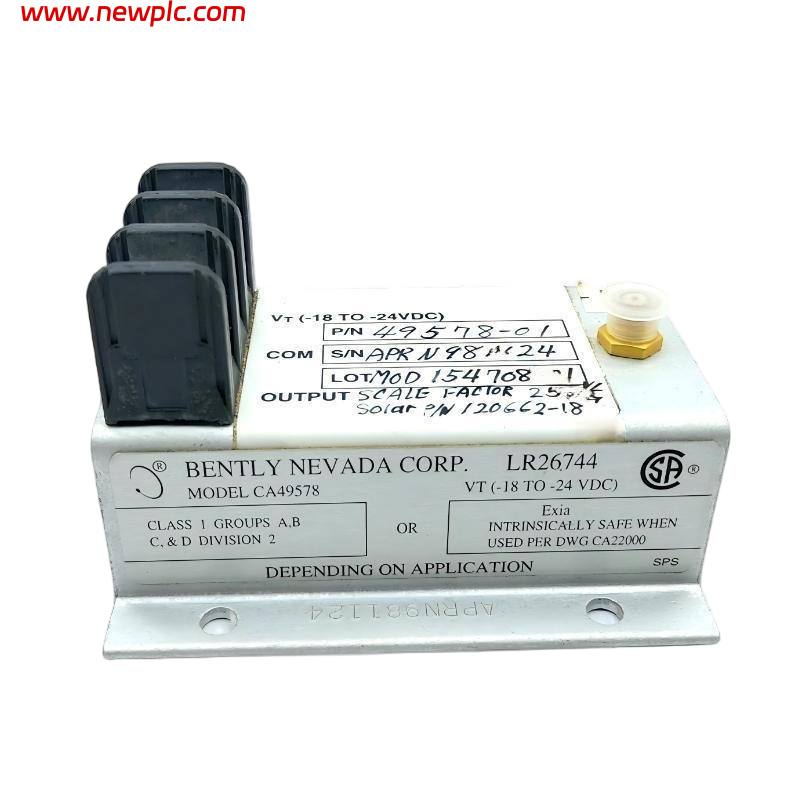

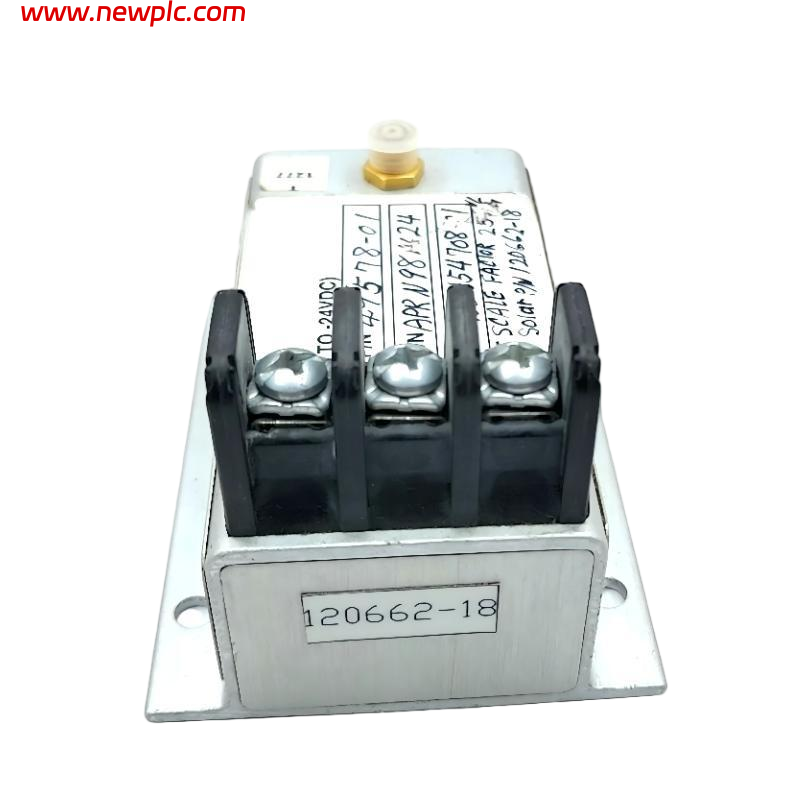

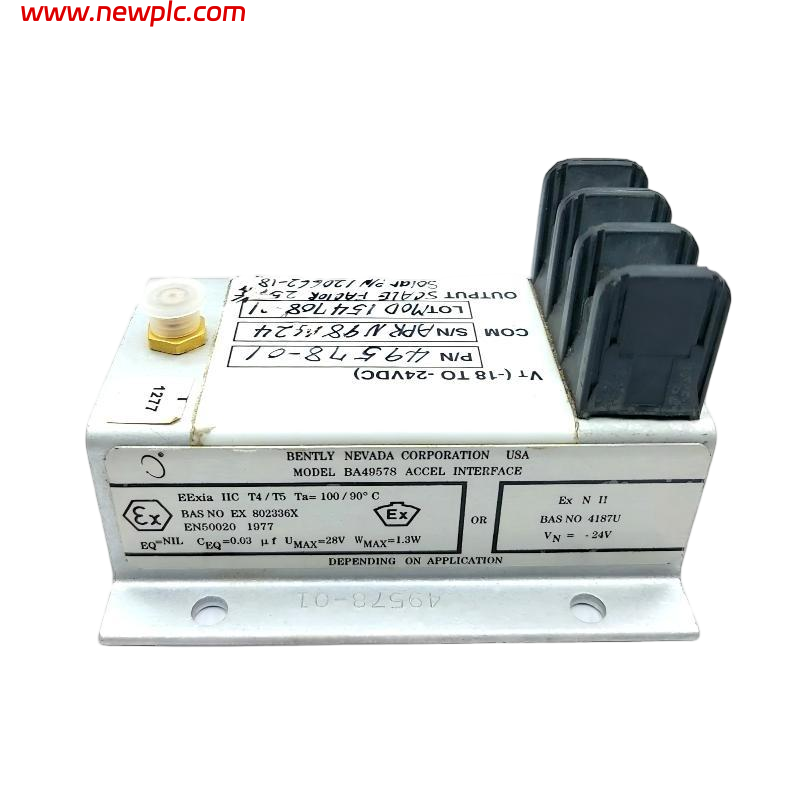

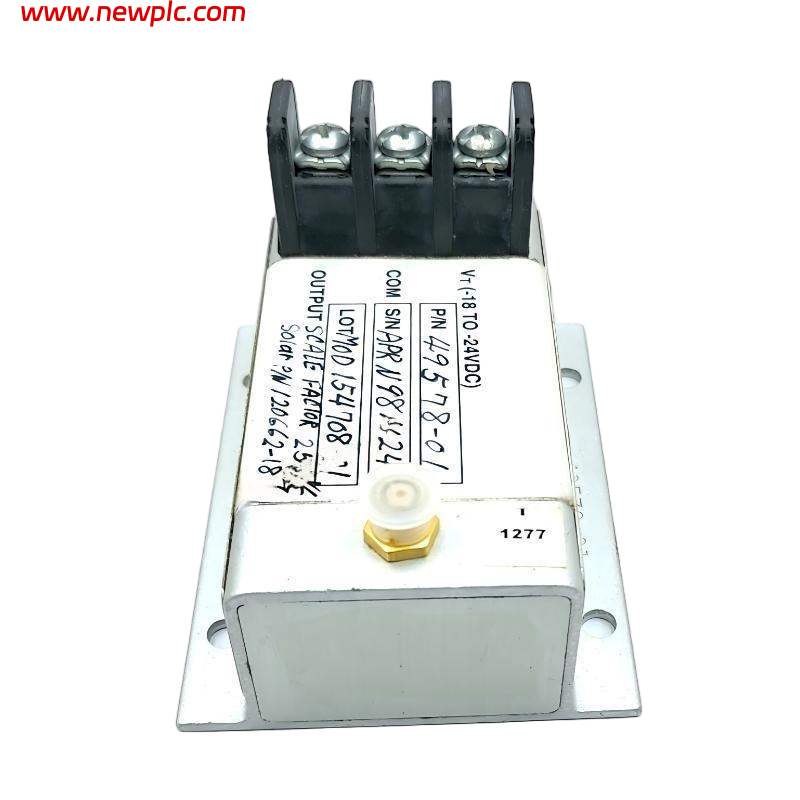

| Model / Part Number | 49578‑01 |
| Product Type | Standard Acceleration Interface Module |
| Function | Interface module for acceleration transducers in machinery protection systems |
| Compatible Systems | Bently Nevada 3500/42 and similar monitoring systems |
| Sensor Interface | Standard acceleration sensor interface for acceleration measurement |
| Output Signal | Interface output suitable for monitoring racks (dependent on system configuration) |
| Supported Measurement Ranges | Up to 0‑500 m/s² peak / 0‑50 g peak (module range options available) |
| Mounting / Form Factor | Plug‑in module for rack system (standard Bently Nevada rack form factor) |
| Dimensions (L × W × H) | Typical 6.5 × 1.0 × 4.0 inches (approx. 165 × 25 × 100 mm) – typical for rack interface modules |
| Weight (Unit) | Approx. 0.25‑0.4 kg (0.55‑0.88 lb) – typical for electronic interface modules |
| Operating Temperature | -20°C to +70°C (common industrial range for 3500 modules) |
| Environmental Protection | Designed for industrial machine room environments |
FAQ
FAQ
Q1: What is the main purpose of the 49578‑01 module?
It serves as a standard acceleration interface module that conditions and routes acceleration sensor signals into a machinery protection monitoring system.
Q2: Which systems typically use the 49578‑01 interface module?
This module is commonly used with Bently Nevada 3500 series monitor racks and compatible machinery protection systems.
Q3: What types of sensors can be connected through the 49578‑01?
Standard acceleration sensors or accelerometers designed for Bently Nevada monitoring systems can be interfaced through this module.
Q4: What measurement ranges does the module support?
The interface can support acceleration ranges up to approximately 0‑50 g peak or 0‑500 m/s² peak depending on system configuration and sensor choice.
Q5: How is the 49578‑01 module installed?
It typically installs as a plug‑in card into a compatible 3500 series rack in the monitoring system.
Q6: What environmental conditions can the module tolerate?
The module is designed to operate within industrial cabinets and machinery rooms, commonly from about ‑20 °C to +70 °C.
Q7: Does the 49578‑01 include any physical housing or rack assembly?
No, it is an electronic interface module intended to mount into the system rack; the housing is part of the overall rack assembly.
Q8: Is the module suitable for standalone measurement without a monitoring system?
No, it is intended as part of a larger protection and monitoring system; on its own it does not display or log data.
