Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 60R/PNL01 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Series | Orbit 60 Series |

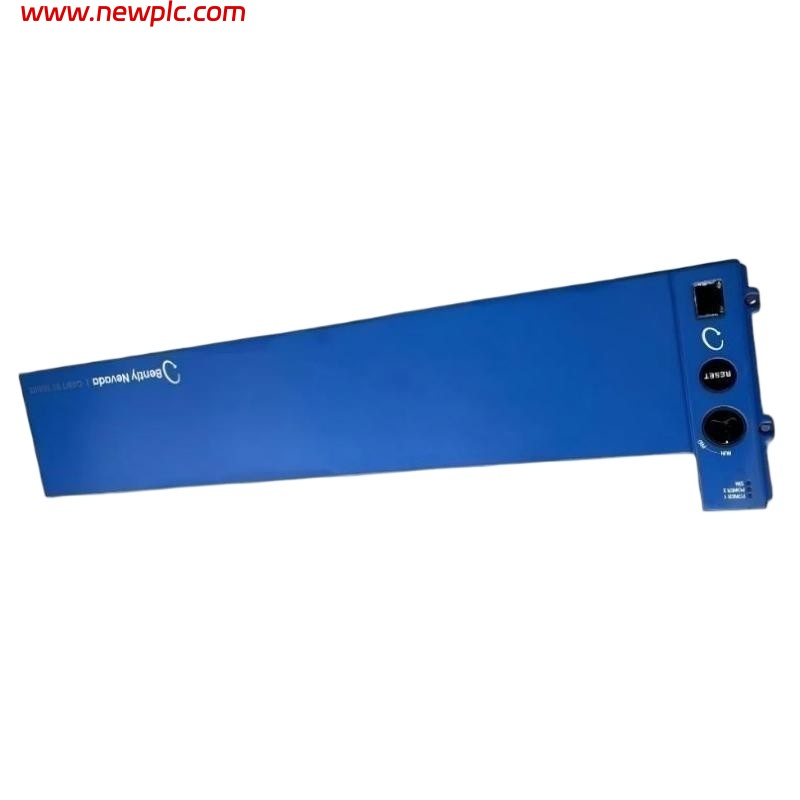

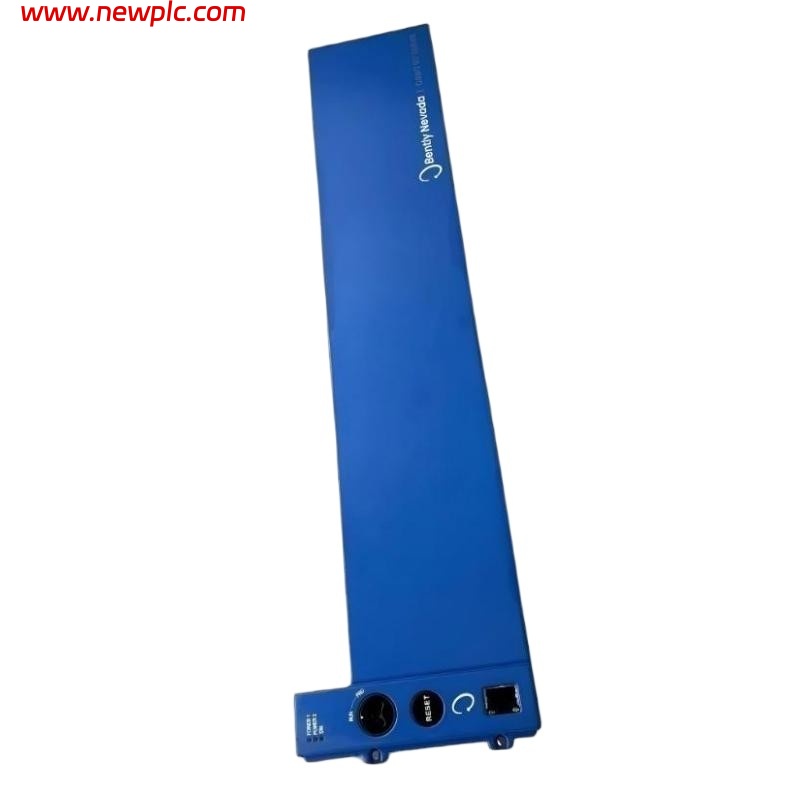

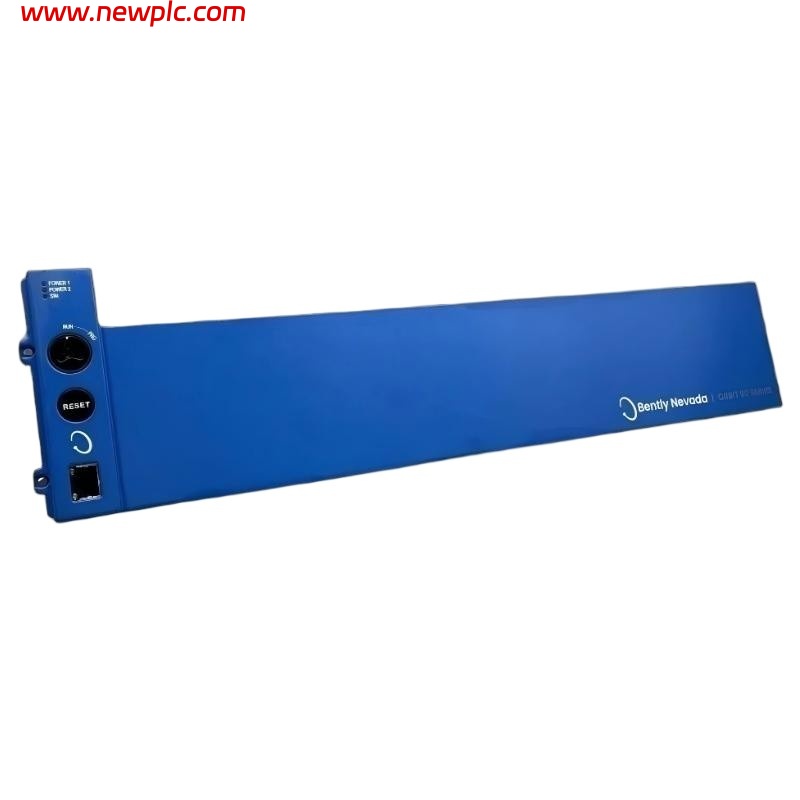

| Product Type | Operator Interface / Control Panel |
| Main Function | Provides local monitoring, control, and visualization for Orbit 60 system |
| Display | LED indicators and status LEDs for module and system health |
| Control Functions | System reset, run/stop key switch, and alarm acknowledgment |
| Communication Interface | Connected via Orbit 60 system backplane |
| System Compatibility | Orbit 60 machinery protection and condition monitoring system |
| Installation Method | Panel-mounted in control cabinet or local console |
| Diagnostic Features | Displays module status, system faults, and warnings |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | −40°C to +85°C |
| Dimensions | Approx. 160 mm × 100 mm × 25 mm |
| Weight | Approximately 0.4 kg |
| Typical Applications | Industrial turbines, compressors, pumps, generators, and rotating machinery monitoring |
| Compliance Standards | API 670 compatible machinery protection systems |
FAQ
FAQ
Q1. What is the purpose of the 60R/PNL01 panel?
It provides local monitoring, control, and visualization for the Orbit 60 machinery protection system.
Q2. Which system is this panel compatible with?
It is compatible with the Bently Nevada Orbit 60 system.
Q3. What control functions does the panel provide?
It allows system reset, run/stop control, and alarm acknowledgment.
Q4. How does the panel communicate with the Orbit 60 system?
It connects via the Orbit 60 internal backplane.
Q5. Where is the panel installed?
It is panel-mounted in a control cabinet or local console near the machinery.
Q6. What diagnostic features are included?
It displays module status, system faults, and alarm warnings.
Q7. What industries use this control panel?
It is used in power generation, oil and gas, petrochemical, and other heavy industries with rotating machinery.
Q8. Why is a local interface panel important in monitoring systems?
It allows operators to quickly view system health and respond to alarms without needing remote access.
