Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada (a Baker Hughes company) |
| Model / Part Number | 70M303-10-01-00-02 |

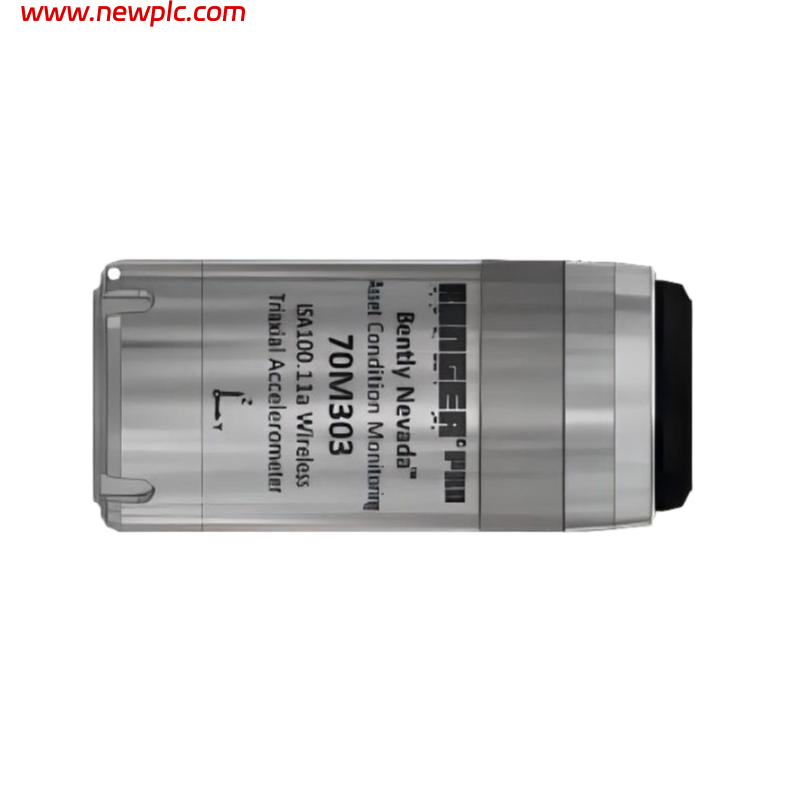

| Product Type | Wireless triaxial vibration and temperature sensor (Ranger Pro series) |
| Measurement Axes | Triaxial acceleration (X, Y, Z) + temperature |
| Acceleration Range | ±1 g to ±20 g (typical) |
| Frequency Range | Z-axis: ~5 Hz – 10 kHz; X/Y-axes: ~5 Hz – 4 kHz (typical) |
| Temperature Range | −40°C to +125°C |
| Wireless Protocol | ISA100.11a / Ranger Pro proprietary (supports ISA100 or WirelessHART) |
| Wireless Range | Up to ~150 m line-of-sight |
| Data Logging | Up to ~10,000 datapoints per sensor |
| Power / Battery | Replaceable 3.6 V D-cell lithium-thionyl chloride battery; up to ~5 years life |
| Mounting | Direct mount on rotating machinery (stud/adapter options may apply) |
| Enclosure Rating | IP67 (dust-tight and water resistant) |
| Housing Material | Stainless steel with reinforced protective cover |
| Dimensions (H × W × D) | ~33 × 25 × 4 cm (subject to sensor configuration) |
| Weight | ~0.3 kg (300 g) |
| Typical Use | Wireless vibration and temperature condition monitoring for rotating equipment (motors, pumps, compressors, turbines) |
FAQ
FAQ
Q1: What type of device is the 70M303-10-01-00-02?
It’s a wireless triaxial vibration and temperature sensor designed for condition monitoring in industrial machinery.
Q2: What measurement capabilities does this sensor provide?
It measures triaxial acceleration (vibration) along X, Y, and Z axes and also captures surface temperature data.
Q3: What wireless communication protocol does it use?
The sensor primarily uses the ISA100.11a wireless protocol and can support other Ranger Pro compatible communication standards.
Q4: How far can the sensor transmit data wirelessly?
Under line-of-sight conditions, the sensor can communicate up to approximately 150 meters to a gateway or access point.
Q5: What environmental protection does the sensor have?
The sensor is rated IP67, making it dust-tight and resistant to water ingress, suitable for harsh industrial environments.
Q6: What is the operating temperature range?
It is built to operate from about −40 °C up to +125 °C, covering typical industrial conditions.
Q7: How long does the battery last?
With typical usage, the replaceable lithium battery can last up to around 5 years, depending on sampling rate and environment.
Q8: What kinds of machinery is this sensor typically used on?
It is used for predictive and condition monitoring of rotating equipment such as motors, pumps, compressors, and turbines.
