Technical Specifications
| Parameter | Specification |
|---|---|
| Cable Length | 33 ft (10.06 m) |
| Weight | 0.65 kg (1.43 lbs) |
| Sensitivity | 3.94 mV/mm/s (100 mV/in/s) ±5% |
| Frequency Response | 4.5 Hz to 5 kHz (270 cpm to 300 kcpm) ±3.0 dB |
| 6.0 Hz to 2.5 kHz (360 cpm to 150 kcpm) ±0.9 dB | |
| Temperature Sensitivity | -14% to +7.5% typical over the operating temperature range |
| Velocity Range | 1270 mm/s (50 in/s) peak |
| Transverse Sensitivity | Less than 5% of sensitivity |
| Amplitude Linearity | ±2% to 152 mm/s (6 in/s) peak |
| Mounted Resonant Frequency | Greater than 12 kHz |
| Broadband Noise Floor | 0.004 mm/s (160 μin/s) rms, nominal |
| Maximum Cable Length | 305 meters (1,000 feet) without signal degradation |
| Weight | 142 grams (5.0 oz) |
| Diameter | 25.3 mm (0.995 in) |
| Height | 63.2 mm (2.49 in) |
| Case Material | 316L stainless steel |
| Mounting Torque | 46 kg cm (40 in-lb) max |
FAQ
FAQ

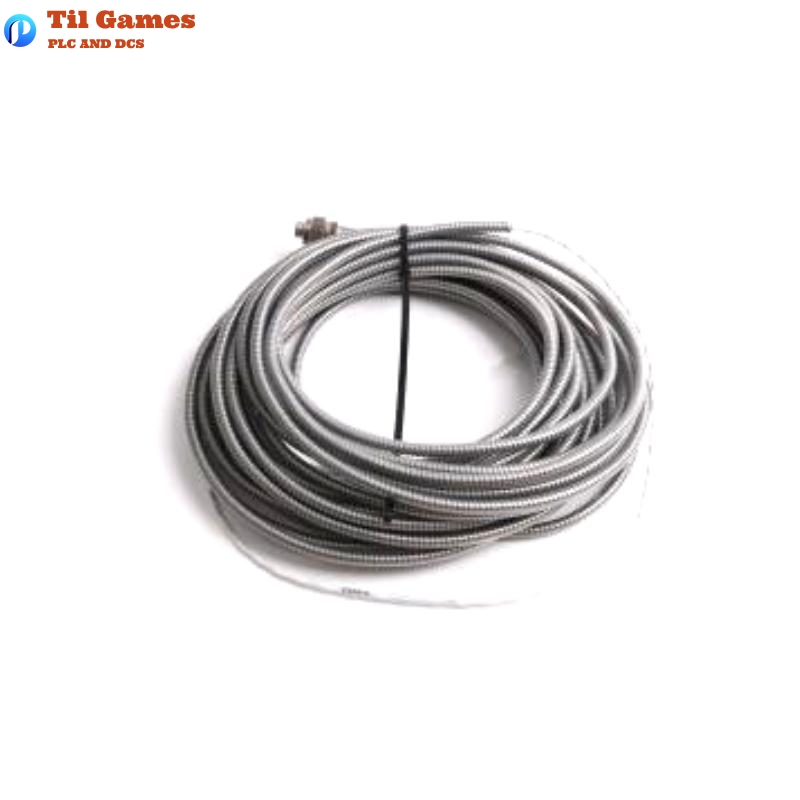

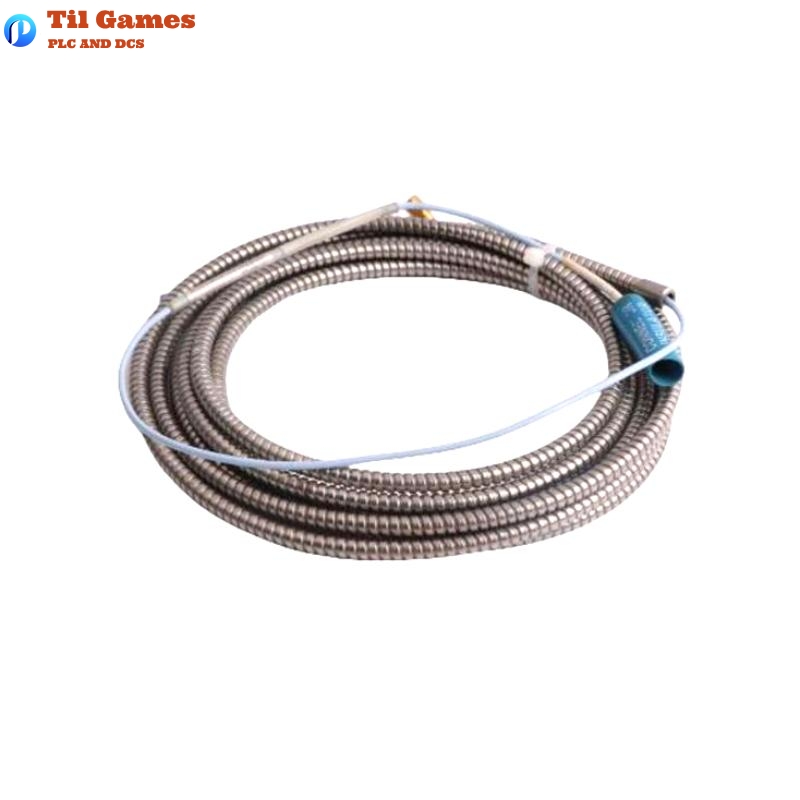

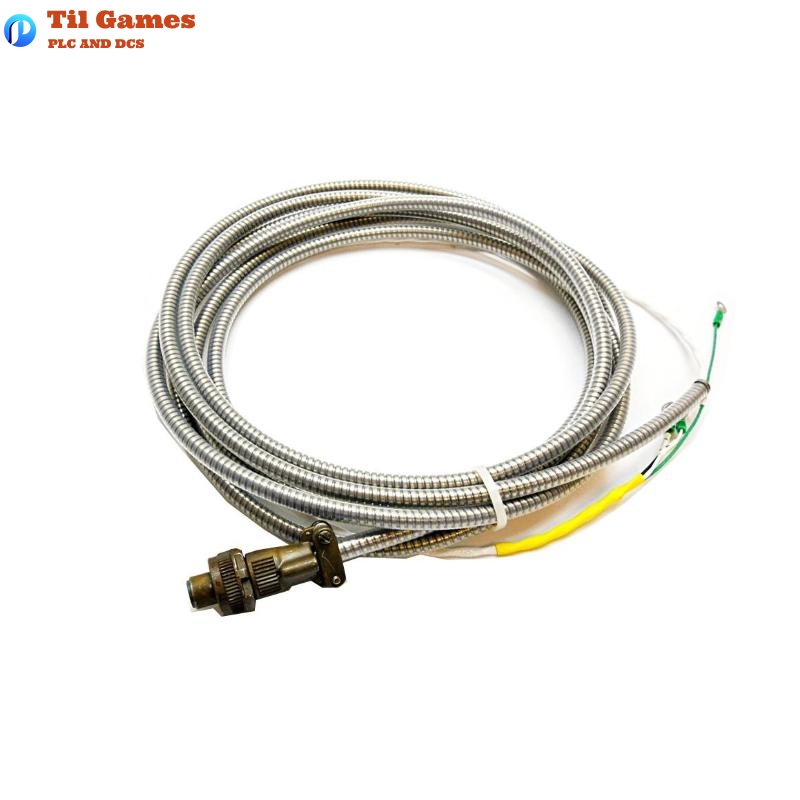

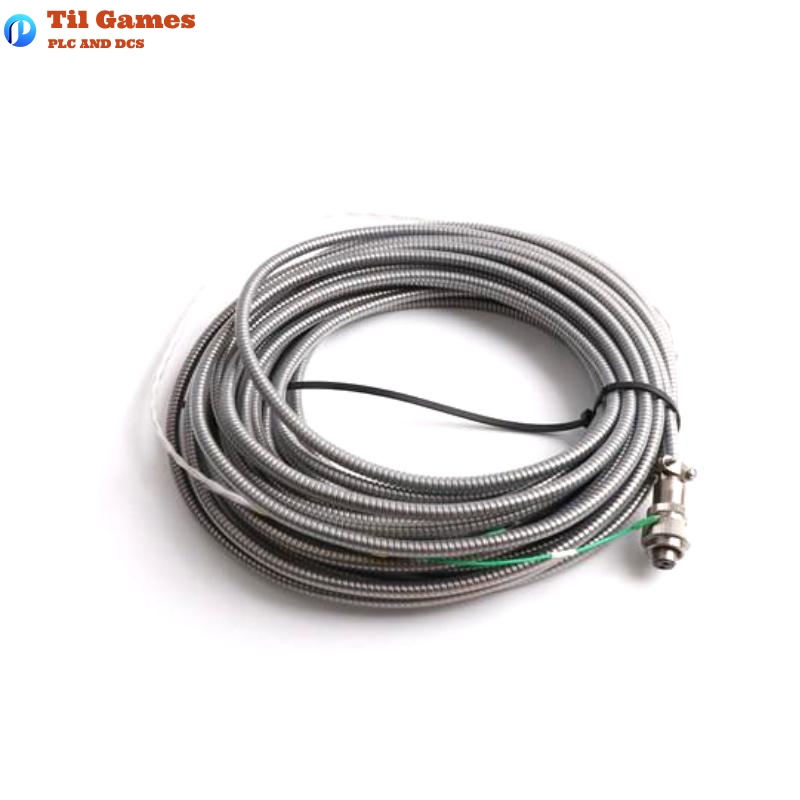

Q1: What is the maximum cable length for the Bently Nevada 84661-33 Velomitor Interconnect Cable?
A1: The maximum cable length is 305 meters (1,000 feet) without degradation of signal.
Q2: What type of connector does the Bently Nevada 84661-33 use?
A2: It uses a 2-pin MIL-C-5015 hermetically-sealed connector with a 304 stainless steel shell.
Q3: What is the weight of the Bently Nevada 84661-33 Velomitor Interconnect Cable?
A3: The weight is 0.65 kg (1.43 lbs).
Q4: Can this cable be used in hazardous areas?
A4: Yes, it is certified for use in hazardous areas, including certifications by CSA, ATEX, and IECEx.
Q5: What is the operating temperature range of this cable?
A5: The operating temperature range is from -55°C to 121°C (-67°F to 250°F).
Q6: What is the diameter of the cable?
A6: The diameter of the cable is 25.3 mm (0.995 in).
Q7: What is the velocity range supported by the sensor?
A7: The velocity range is 1270 mm/s (50 in/s) peak.
Q8: What material is the cable casing made from?
A8: The casing is made of 316L stainless steel.
