Technical Specifications
| Item | Specification |
|---|---|

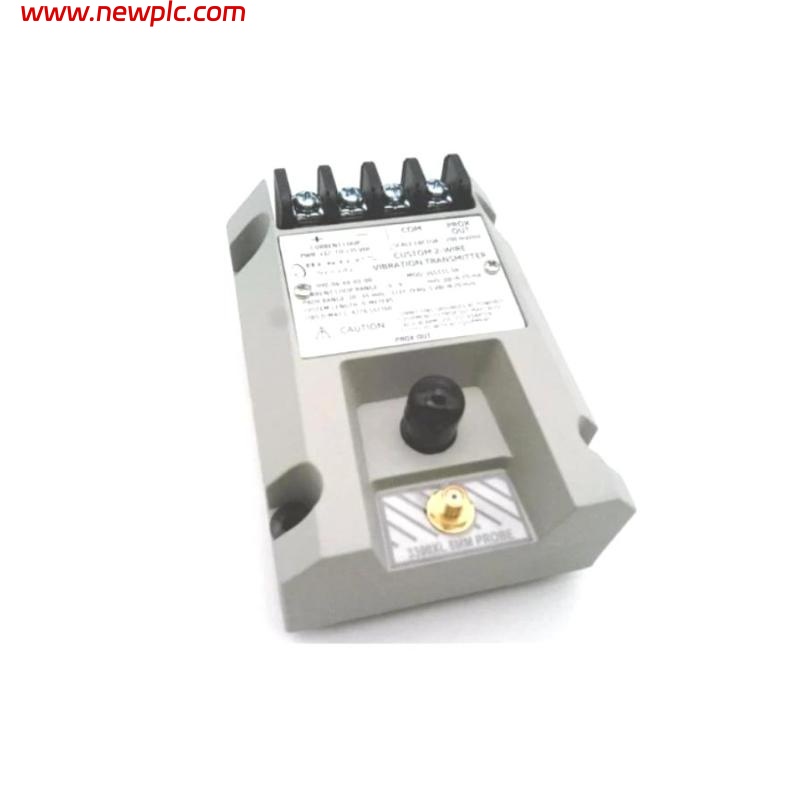

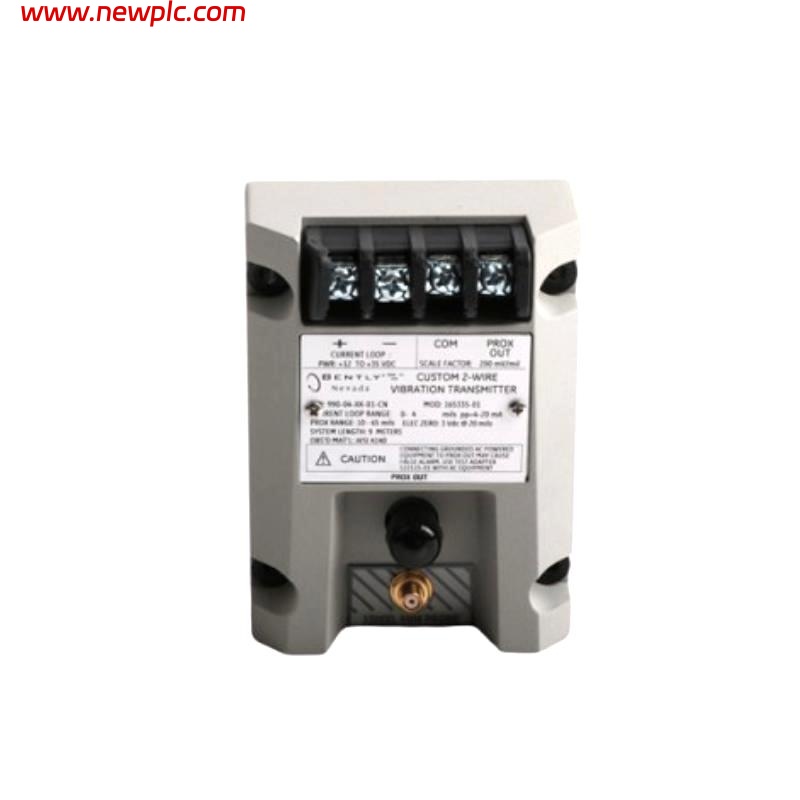

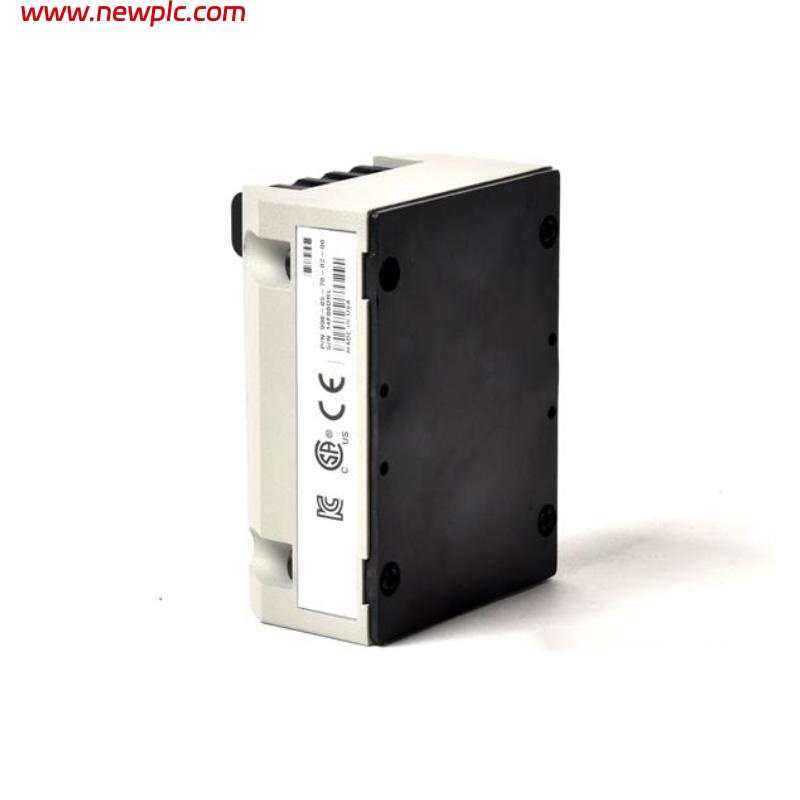

| Model Number | Bently Nevada 990-04-90-01-05 |
| Series | 990 Vibration Transmitter |
| Type | Vibration Transmitter |
| Measurement | Bearing housing vibration (Velocity RMS) |
| Frequency Range | 10 Hz – 1 kHz |
| Output Signal | 4-20 mA |
| Power Supply | 24 V DC |
| Mounting | Bolt-mounted |
| Operating Temp | -35 °C to +85 °C |
| Compatible System | Various vibration monitoring systems |
| Dimensions | 100.1 x 73.9 x 53.3 mm |
| Weight | 0.43 kg |
FAQ
FAQ
Q1: What is the main application of this vibration transmitter?
A1: It is mainly used for monitoring bearing housing vibration in rotating machinery.
Q2: What is the output signal format?
A2: It provides a standard 4-20 mA analog output.
Q3: What power supply does it require?
A3: The transmitter operates on 24 V DC.
Q4: What is the operating temperature range?
A4: It can operate between -35 °C and +85 °C.
Q5: Is it compatible with other monitoring systems?
A5: Yes, it can be integrated with various industrial vibration monitoring and protection systems.
Q6: Is installation complicated?
A6: No, it uses a simple bolt-mounting method.
Q7: What is the weight of the transmitter?
A7: The unit weighs 0.43 kg.
Q8: How should the transmitter be stored?
A8: Store it in a dry, moisture-free, dust-free environment and avoid physical damage.
