Technical Specifications
| Item | Specification |
|---|---|
| Model | 991-01-XX-01-CN (284318-01) |

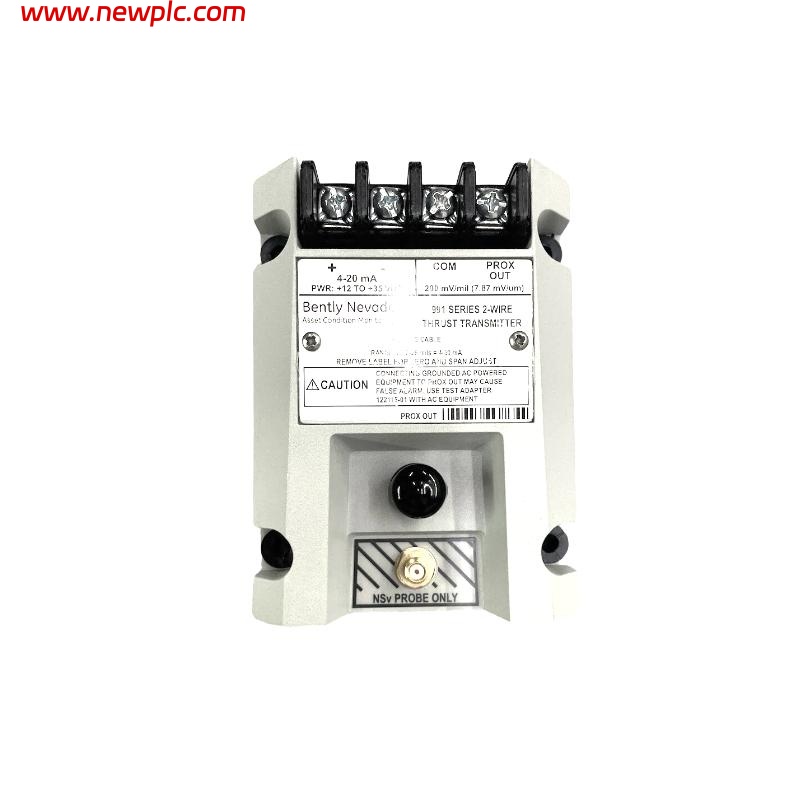

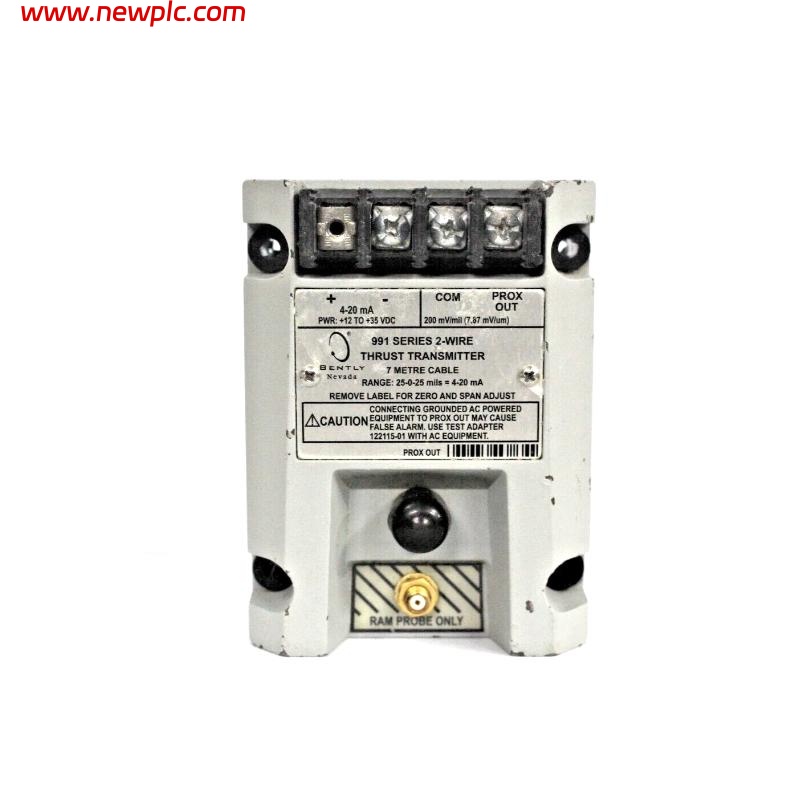

| Type | Bently Nevada 991 Series Vibration Transducer Interface Module |
| Function | Converts proximity probe signals into a 4–20 mA DC output for continuous vibration and shaft displacement monitoring |
| Input | Compatible with Bently Nevada 3300 and 3300 XL proximity probe systems |
| Output | 4–20 mA DC current signal proportional to vibration amplitude or shaft position |
| Power Supply | 24 VDC nominal |
| Frequency Response | DC to 10 kHz |
| Signal Conditioning | Linearized, temperature-compensated, and low-noise signal processing |
| Mounting Type | DIN rail or panel mount |
| Housing Material | Aluminum alloy |
| Protection Rating | IP20 (typical) |
| Operating Temperature | -35°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% non-condensing |
| Dimensions | 100.1 mm × 73.9 mm × 53.3 mm |
| Weight | 0.43 kg |
| Part Number | 284318-01 |
| Country Code | CN – China configuration |
| Applications | Continuous vibration and displacement monitoring for turbines, compressors, and motors |
FAQ
FAQ
Q1: What is the function of the 991-01-XX-01-CN (284318-01)?
It converts signals from Bently Nevada proximity probes into a 4–20 mA DC output for real-time monitoring of vibration or shaft position.
Q2: What does the “CN” suffix indicate?
“CN” identifies the China configuration, meaning the product meets regional standards and certifications required for use in China.
Q3: Which probe systems are compatible with this module?
It supports Bently Nevada 3300 and 3300 XL proximity probe systems.
Q4: What type of output does this module provide?
It provides a 4–20 mA DC signal proportional to the measured vibration or shaft displacement.
Q5: How is the 991-01-XX-01-CN module installed?
It can be mounted using a DIN rail or directly onto a panel for flexible installation.
Q6: What power supply is required?
A 24 VDC nominal power source is needed for operation.
Q7: What are the module’s physical dimensions and weight?
The unit measures 100.1 mm × 73.9 mm × 53.3 mm and weighs 0.43 kg.
Q8: Where is this module typically used?
It is used in machinery protection and condition monitoring systems for industrial rotating equipment such as turbines, compressors, pumps, and electric motors.
