Technical Specifications
| Item | Specification |
|---|---|
| Model | 991-06-70-01-CN |

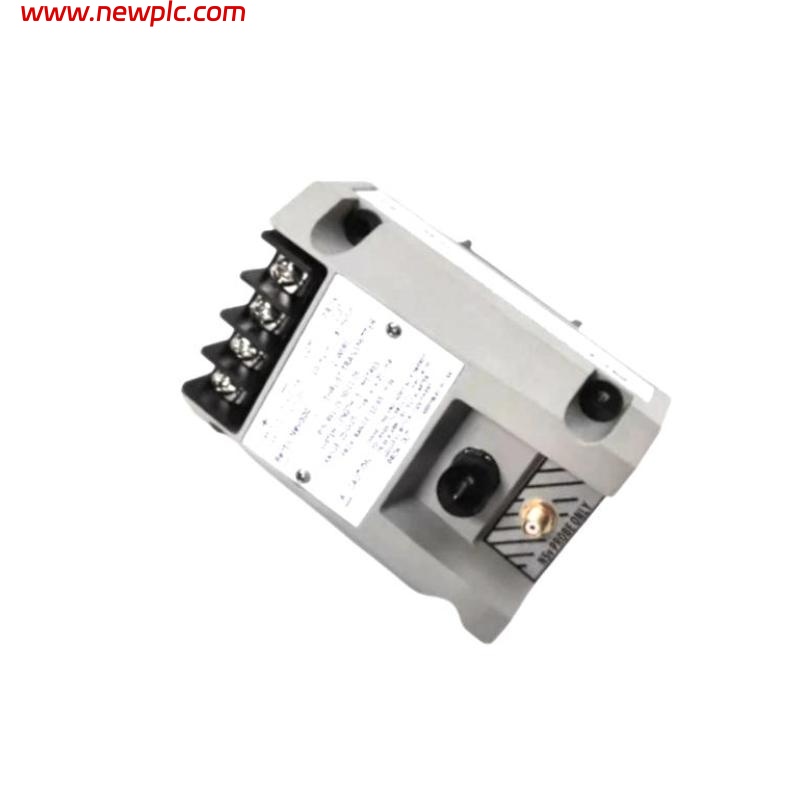

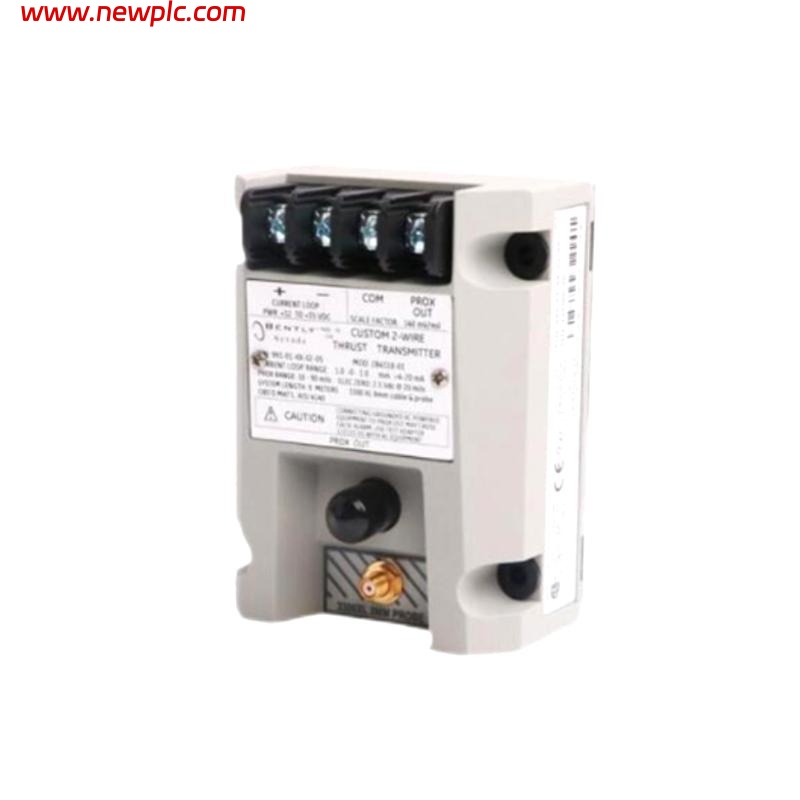

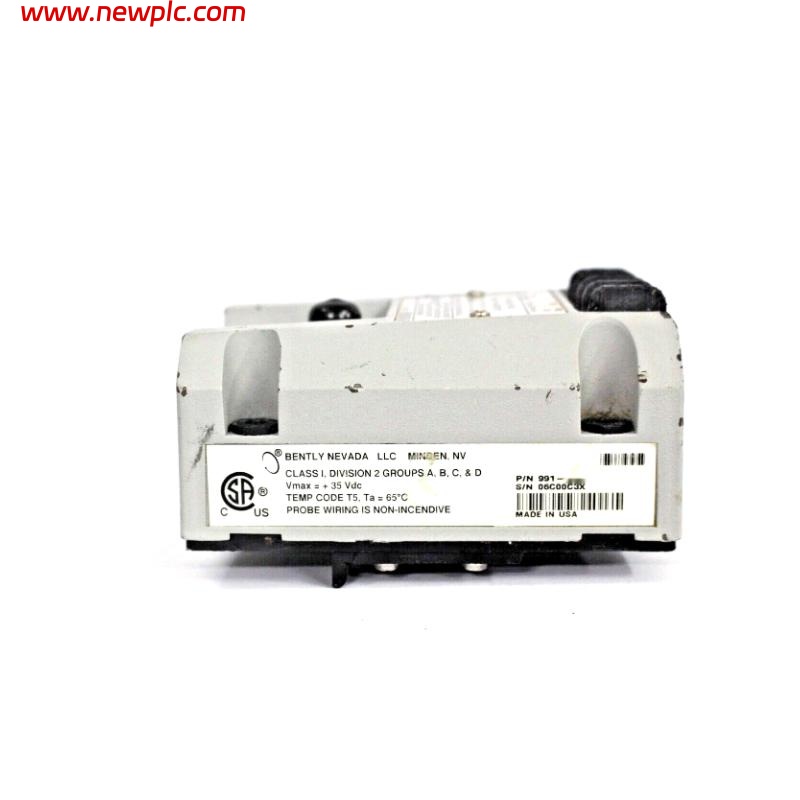

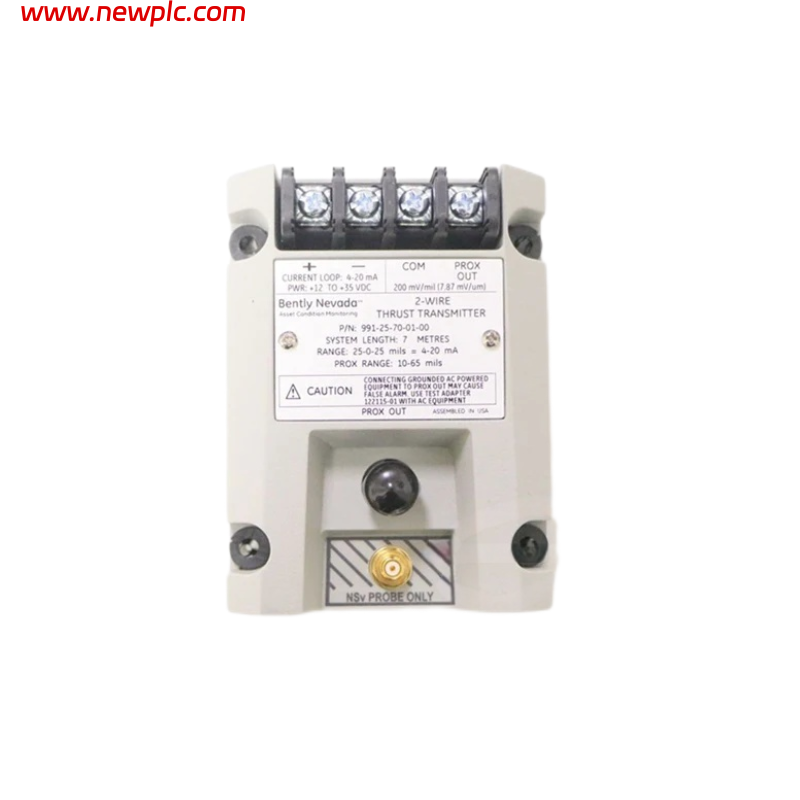

| Type | Bently Nevada 991 Series Vibration Transducer Interface Module |
| Function | Converts proximity probe or vibration transducer signals into a 4–20 mA DC output for real-time machinery condition monitoring |
| Input | Compatible with Bently Nevada 3300 and 3300 XL proximity probe systems |
| Output | 4–20 mA DC signal proportional to vibration amplitude or shaft displacement |
| Power Supply | 24 VDC nominal |
| Frequency Response | DC to 10 kHz |
| Signal Processing | Linear, temperature-compensated signal conditioning with low noise |
| Housing Material | Aluminum alloy |
| Protection Rating | IP20 (industrial standard) |
| Mounting Type | DIN rail or panel mounting |
| Operating Temperature | -35°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% non-condensing |
| Dimensions | 100.1 mm × 73.9 mm × 53.3 mm |
| Weight | 0.43 kg |
| Regional Code | CN – China regional configuration with localized labeling and compliance with GB industrial standards |
| Applications | Vibration and shaft position monitoring in turbines, compressors, pumps, and other rotating machinery used in industrial facilities |
FAQ
FAQ
Q1: What is the 991-06-70-01-CN module used for?
It is used to convert proximity probe or vibration transducer signals into a 4–20 mA output for monitoring machinery vibration and shaft position.
Q2: What does the “CN” suffix indicate?
The “CN” code designates a version built to meet Chinese industrial standards, including localized documentation and labeling.
Q3: Which sensors are compatible with this model?
It is compatible with Bently Nevada 3300 and 3300 XL proximity probe systems for precise vibration measurements.
Q4: What kind of output signal does it generate?
It generates a 4–20 mA DC output proportional to vibration amplitude or shaft displacement.
Q5: What is the typical operating voltage?
The unit operates at a nominal 24 VDC input voltage.
Q6: How is the module installed?
It can be installed using a DIN rail or mounted directly on a control panel for ease of integration.
Q7: What are the physical dimensions and weight of the module?
It measures 100.1 mm × 73.9 mm × 53.3 mm and weighs approximately 0.43 kg.
Q8: Where is the 991-06-70-01-CN commonly used?
It is widely used in industrial applications across China, including power generation, petrochemical plants, and manufacturing facilities, for continuous machinery health monitoring.
