Technical Specifications
| Item | Specification |
|---|---|
| Model | 991-06-XX-01-05 |

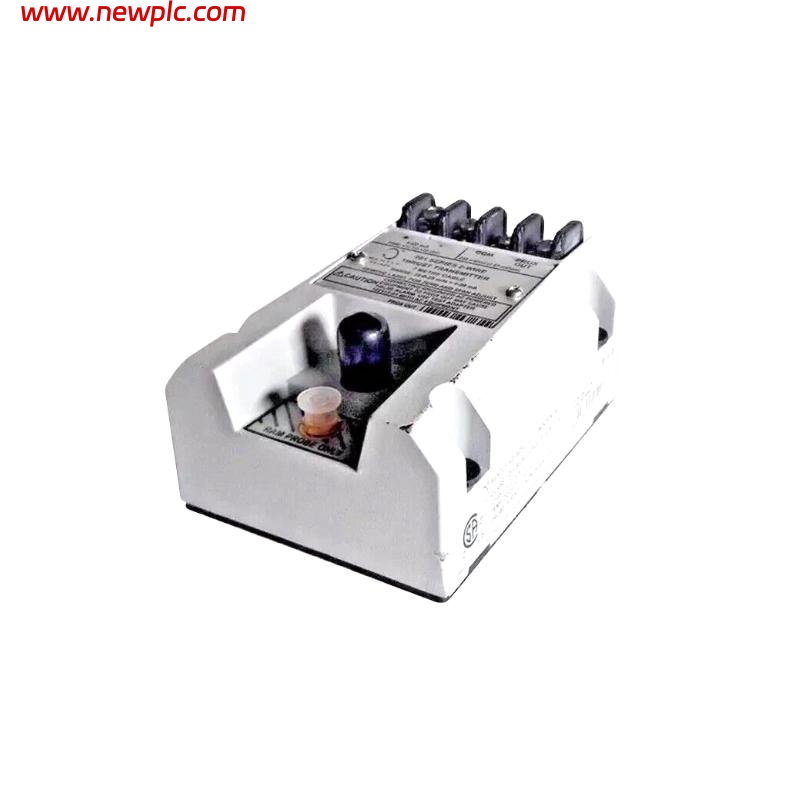

| Type | Bently Nevada 991 Series Vibration Transducer Interface Module |
| Function | Converts proximity probe or vibration transducer signals into a 4–20 mA DC output for continuous machinery health and vibration monitoring |
| Input | Compatible with Bently Nevada 3300 and 3300 XL proximity probe systems |
| Output | 4–20 mA DC current signal proportional to vibration or shaft position |
| Power Supply | 24 VDC nominal |
| Frequency Response | DC to 10 kHz |
| Signal Processing | Linear, low-noise, temperature-compensated signal conditioning |
| Housing Material | Aluminum alloy |
| Protection Rating | IP20 (industrial grade) |
| Mounting Type | DIN rail or panel mounting |
| Operating Temperature | -35°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% non-condensing |
| Dimensions | 100.1 mm × 73.9 mm × 53.3 mm |
| Weight | 0.43 kg |
| Regional Code | 05 – Indicates enhanced environmental capability and region-specific calibration |
| Reference Part | 164113-02 |
| Applications | Used for vibration and displacement monitoring in turbines, compressors, motors, and other rotating industrial machinery |
FAQ
FAQ
Q1: What is the main function of the 991-06-XX-01-05 module?
It is designed to convert signals from proximity probes or vibration sensors into a standardized 4–20 mA DC output for monitoring and control systems.
Q2: What does “XX” mean in the model number?
“XX” represents variable configuration options such as frequency response, input type, or output scaling that depend on specific application needs.
Q3: What is the meaning of the “05” code?
The “05” suffix designates a version configured for specific regions or with enhanced operating temperature range and calibration standards.
Q4: Which probes are compatible with this model?
It is fully compatible with Bently Nevada 3300 and 3300 XL series proximity probe systems.
Q5: What kind of output does it provide?
The module provides a 4–20 mA current output that is linearly proportional to the vibration or shaft displacement measured.
Q6: How is the unit powered and installed?
It operates on a 24 VDC power supply and can be easily installed on a DIN rail or control panel.
Q7: What are the module’s size and weight?
The module has dimensions of 100.1 mm × 73.9 mm × 53.3 mm and weighs approximately 0.43 kg.
Q8: In what environments is the 991-06-XX-01-05 typically used?
It is used in industrial environments such as power generation, petrochemical plants, and manufacturing facilities for continuous vibration and machinery condition monitoring.
