Technical Specifications
| Parameter | Specification |
|---|---|

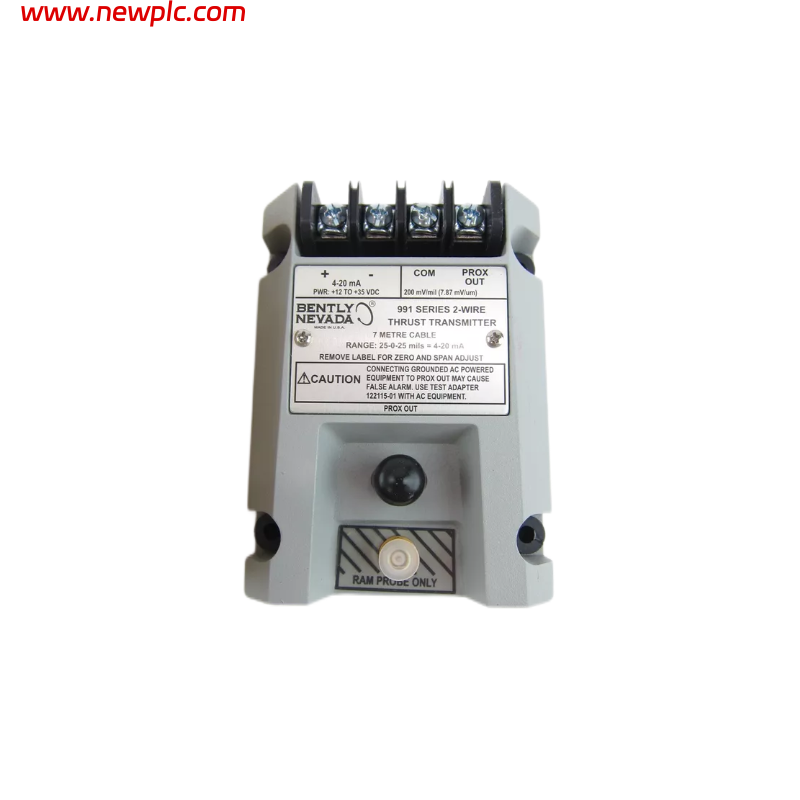

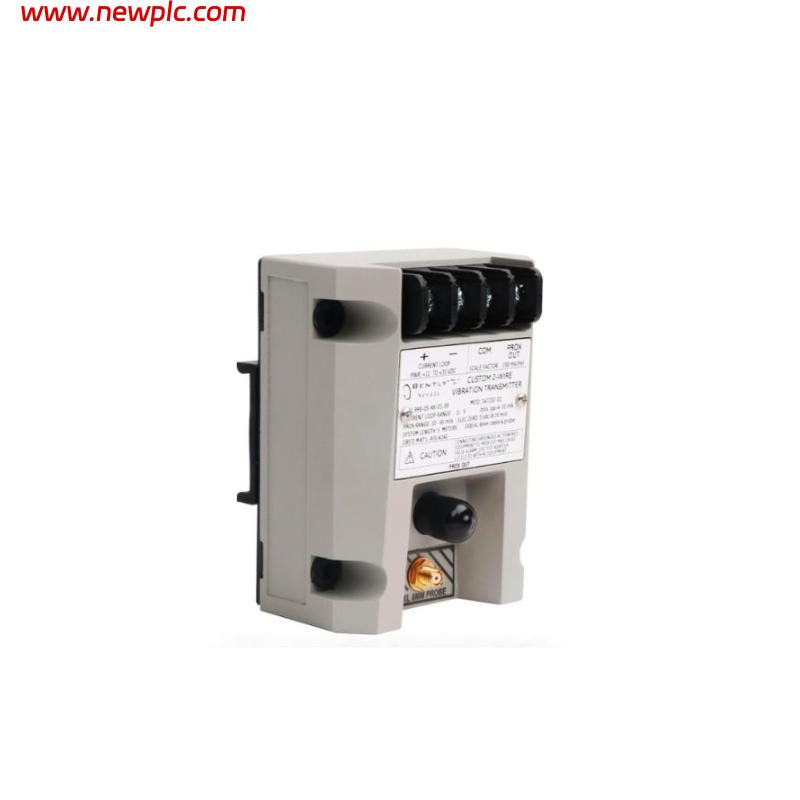

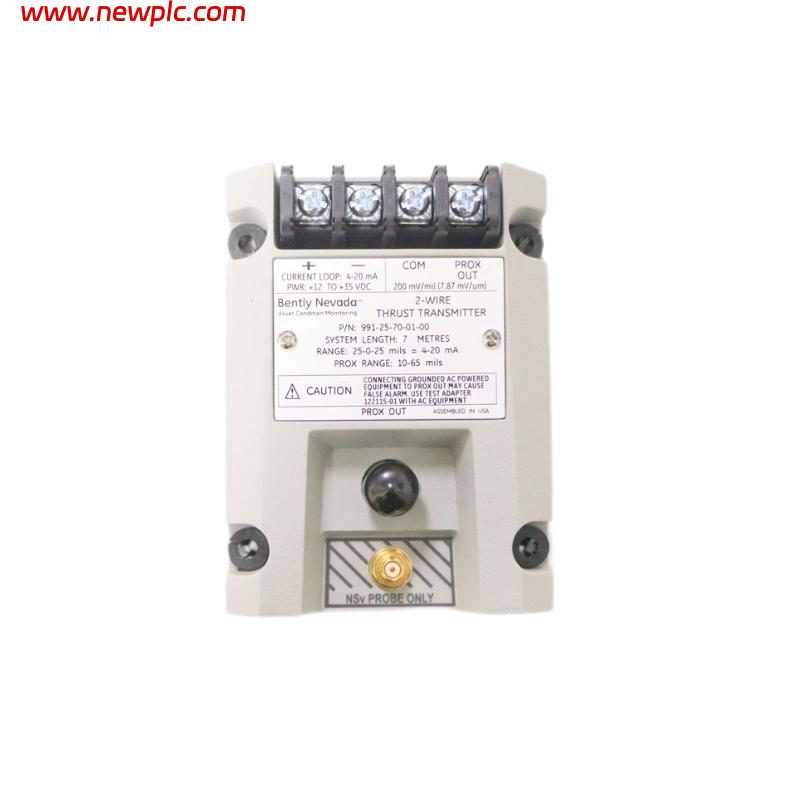

| Product Name | Bently Nevada 991-25-70-01-00 |
| Product ID | 991-25-70-01-00 |
| Manufacturer | Bently Nevada |
| Product Type | 2-wire Thrust Transmitter |
| Series | 991 Vibration / Thrust Transmitter Series |
| Function | Converts proximity probe signal into 4–20 mA proportional axial displacement (thrust) signal |
| Input Sensor | Bently Nevada 3300 NSv proximity probe + extension cable |
| Full Scale Range | 25-0-25 mils |
| System Length | 7.0 m (23 ft) |
| Mounting Type | 35 mm DIN rail clips |
| Agency Approval | None required |
| Output Signal | 4–20 mA loop-powered (2-wire) |
| Supply Voltage | 12–35 VDC |
| Current Consumption | ~20 mA max loop current |
| Linearity | ±1.5% of full scale (typical) |
| Frequency Response | Approx. 5 Hz – 6 kHz |
| Housing Type | Potted industrial enclosure |
| Protection Features | Power-up inhibit, signal fault detection, probe disconnect detection |
| Dimensions (L × W × H) | Approx. 124 × 126 × 22 mm |
| Installed Depth | Approx. 70–80 mm including connectors and wiring clearance |
| Weight | Approx. 0.10–0.25 kg |
| Application | Compressors, pumps, motors, fans, small rotating machinery |
| System Compatibility | Bently Nevada 3300 NSv proximity system |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Bently Nevada 991-25-70-01-00 used for?
It is used to measure axial shaft displacement (thrust) and convert it into a standard 4–20 mA signal for control and protection systems.
Q2: What does the “25” represent?
It indicates the full-scale measurement range of 25-0-25 mils.
Q3: What does the “70” represent?
It indicates a 7.0 m system length configuration.
Q4: What is the output signal type?
It outputs a loop-powered 4–20 mA analog signal proportional to shaft axial position.
Q5: What mounting method is used?
It uses standard 35 mm DIN rail mounting inside control cabinets.
Q6: What is the operating power requirement?
It operates on 12–35 VDC loop power.
Q7: Is this a standalone sensor?
No. It must be used with a Bently Nevada 3300 NSv proximity probe system.
Q8: What should be checked before replacement?
Verify full-scale range, system length, mounting type, probe compatibility, and available cabinet space for installation.
