Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada / Advantech |

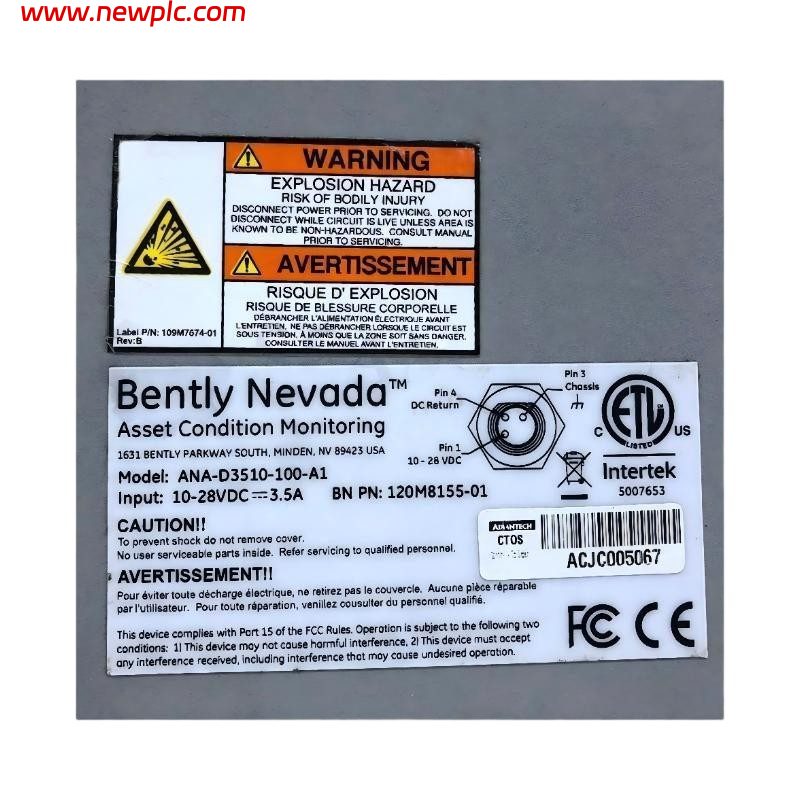

| Product Model | ANA-D3510-100-A1 |
| Product Type | 10-inch Industrial Hardened LCD Display |
| Series | 3500/94M VGA Display Monitor System |
| Function | Displays real-time machinery vibration, position, alarm, and protection status data from Bently Nevada 3500 monitoring systems |
| Display Size | 10.5 inch diagonal LCD |
| Display Type | Industrial Hardened LCD with Resistive Touch Screen |
| Resolution | 640 × 480 VGA |
| Video Input | VGA Interface |
| Brightness | Approx. 250 cd/m² |
| Touch Interface | GFG Resistive Touch Screen |
| Mounting Options | Face Mount, Panel Mount, 19-inch Rack Mount, Independent Mount |
| Power Supply | 24 VDC typical (10–28 VDC range) |
| Power Consumption | Approx. 57 W |
| Protection Rating | IP54 housing (IP65 possible with suitable cables) |
| Hazardous Area Certification | Class I, Division 2; ATEX/IECEx Zone 2 |
| Operating Temperature | 0°C to +65°C (full unit operation) |
| Storage Temperature | -30°C to +70°C |
| Humidity | 10% to 85% RH non-condensing |
| Manufacturer Display | Advantech |
| Compatibility | Bently Nevada 3500/94M VGA Display Monitor System |
| Application | Turbine monitoring, compressor monitoring, generator protection, and industrial machinery condition monitoring |

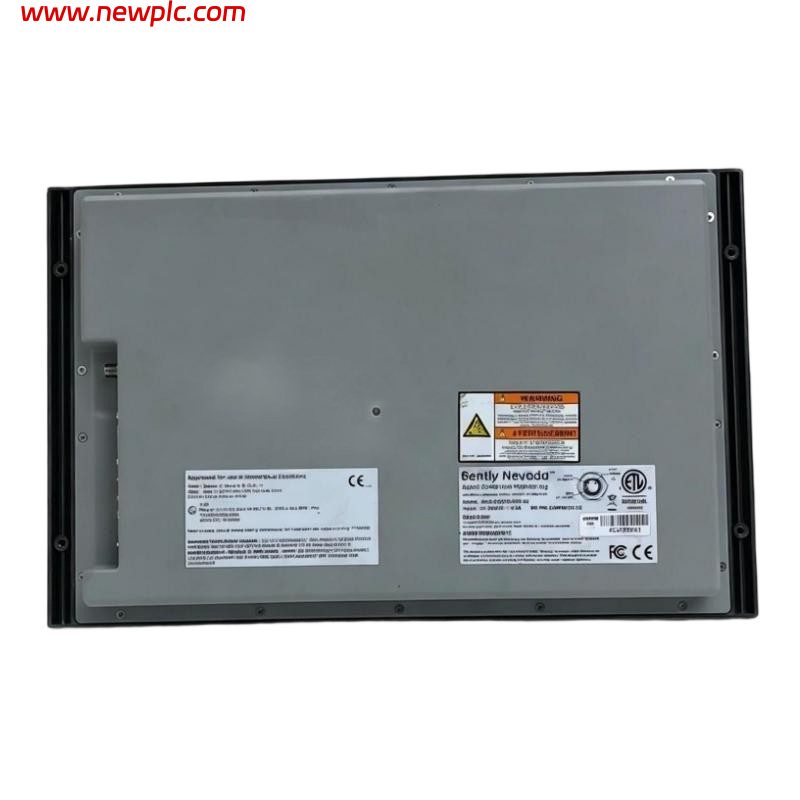

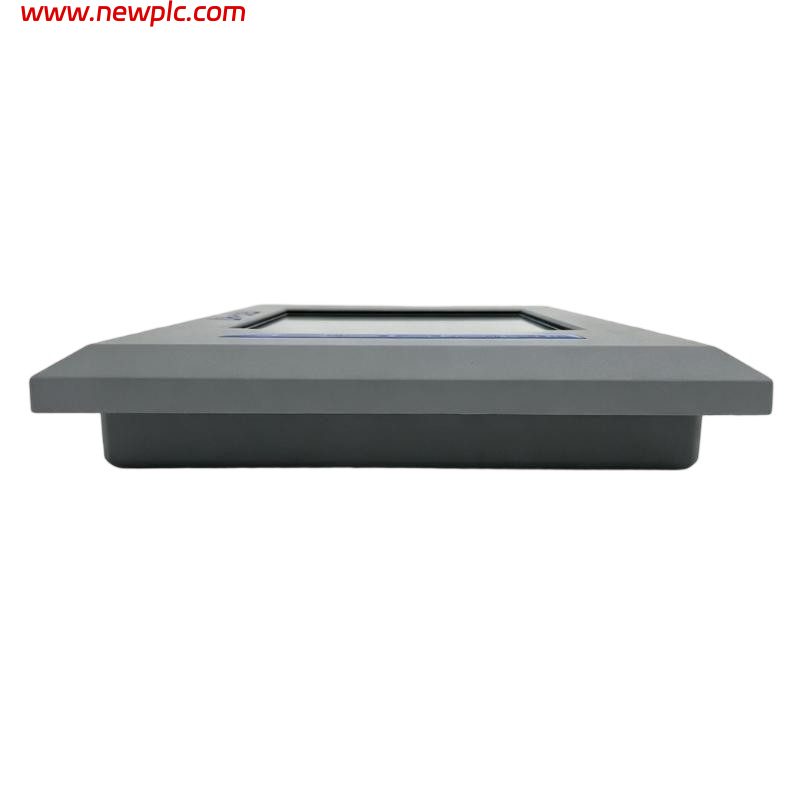

| Dimensions | Approx. 387 × 249 × 49 mm |
| Weight | Approx. 3.98 kg |
| Condition | New and original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the Bently Nevada ANA-D3510-100-A1 used for?
The ANA-D3510-100-A1 is used as a local industrial display for the Bently Nevada 3500/94M system, allowing operators to view machinery vibration, alarm conditions, and protection status directly at the equipment location.
Q2: What does the model ANA-D3510-100-A1 represent?
The model represents a 10-inch industrial hardened LCD display designed for integration with the 3500/94M VGA Display Monitor System, providing graphical visualization of machinery monitoring data.
Q3: Which systems are compatible with the ANA-D3510-100-A1?
The display is designed for use with Bently Nevada 3500/94M VGA display systems and can receive data from 3500 machinery protection racks through compatible display modules and accessories.
Q4: What are the dimensions and weight of the ANA-D3510-100-A1?
The display has approximate dimensions of 387 × 249 × 49 mm and weighs approximately 3.98 kg.
Q5: Can the ANA-D3510-100-A1 be used in hazardous areas?
Yes. The display supports hazardous-area applications with certifications including Class I, Division 2 and ATEX/IECEx Zone 2, making it suitable for many industrial environments.
Q6: What mounting options are available for this display?
The ANA-D3510-100-A1 supports several installation methods, including face mount, panel mount, 19-inch rack mount, and independent mounting configurations.
Q7: What should be checked before installing the ANA-D3510-100-A1?
Before installation, verify the power supply voltage, VGA connection, mounting method, environmental conditions, hazardous-area requirements, and compatibility with the 3500/94M system.
Q8: What are the advantages of the Bently Nevada ANA-D3510-100-A1?
The display provides clear real-time machinery status visualization, rugged industrial construction, touch-screen operation, flexible mounting options, and reliable performance for critical equipment monitoring applications.
