Technical Specifications
| Parameter | Specification |
|---|---|

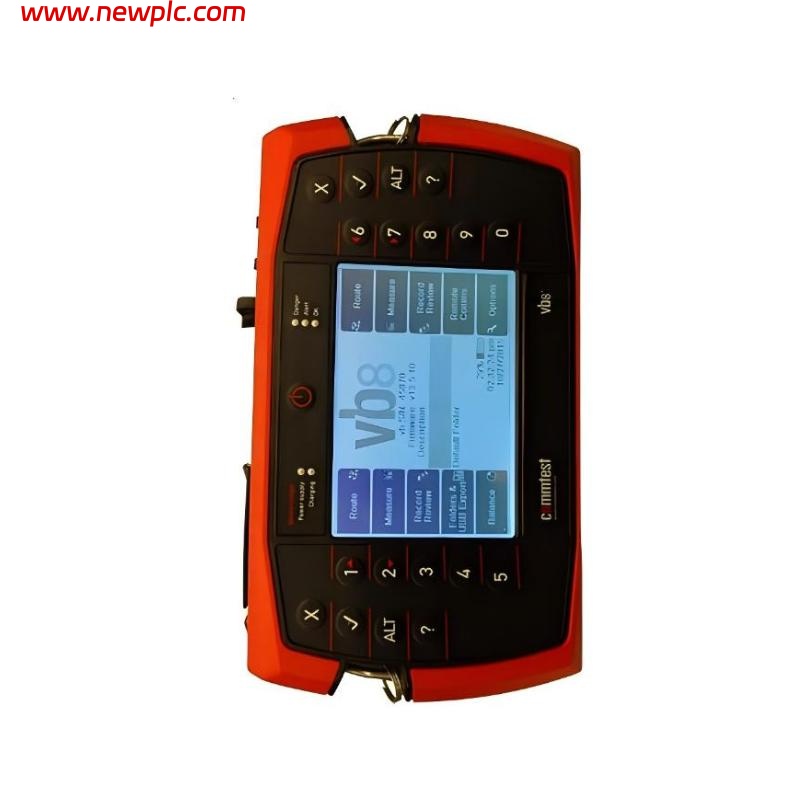

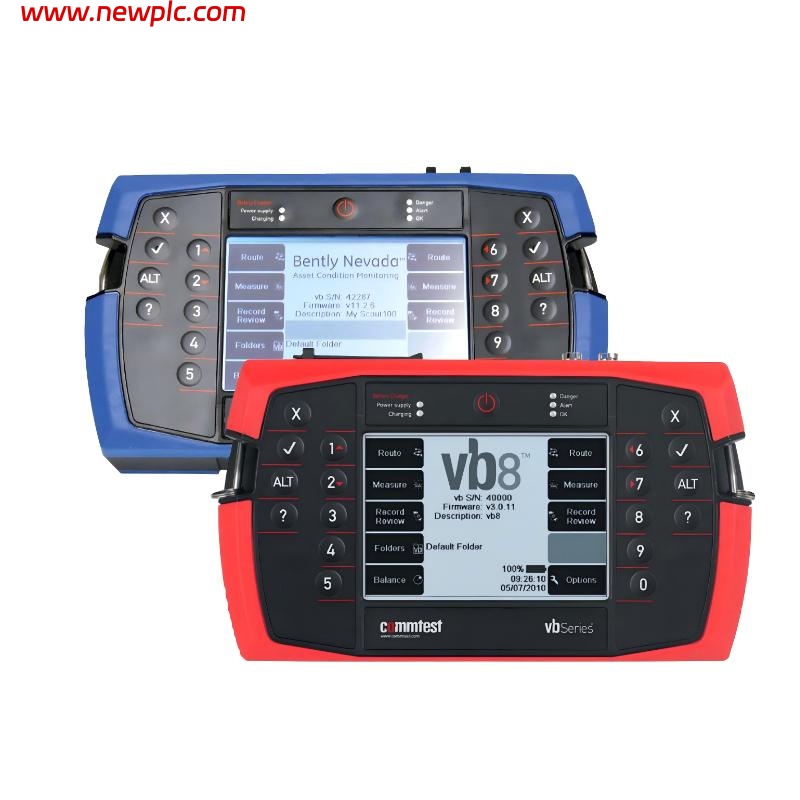

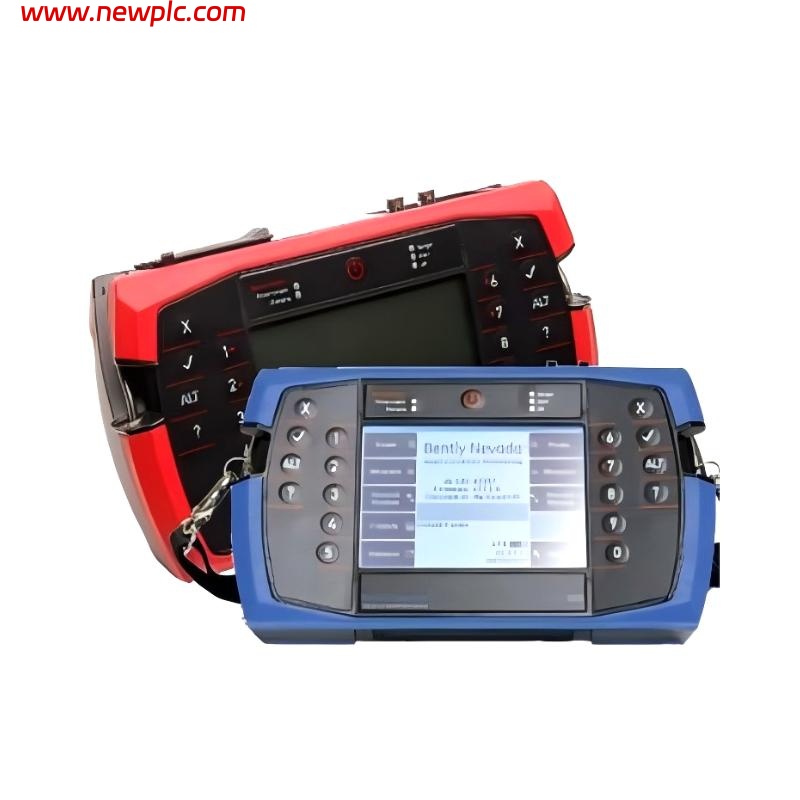

| Product Name | Commtest VB8 Portable Data Collector, Analyzer and Balancer |
| Model Number | Bently Nevada Commtest VB8 |
| Dimensions | 252 × 148 × 60 mm |
| Weight | 1.2 kg |
| Function | Portable vibration data collection, analysis, and rotor balancing |
| Measurement Channels | 4 channels for simultaneous input |
| Frequency Range | 0.5 Hz to 20 kHz |
| Input Types | Accelerometer, velocity, displacement, proximity probes |
| Data Storage | Internal memory with external storage option |
| Display | High-resolution color LCD for data visualization |
| Power Supply | Rechargeable Li-ion battery, AC adapter operation |
| Analysis Capabilities | Time waveform, FFT spectrum, orbit analysis, trend analysis |
| Balancing Capability | Single-plane and dual-plane rotor balancing |
| Communication Interface | USB, Ethernet, optional Wi-Fi for data transfer |
| Software | Integrated analysis and reporting software |
| Operating Temperature | 0°C to +50°C |
| Humidity Range | 0–95% non-condensing |
| Housing Material | Ruggedized protective case for field use |
| Safety Compliance | IEC/EN 61010-1 |
| EMC Compliance | IEC/EN 61326-1 |
| Application | Vibration monitoring, machinery diagnostics, rotor balancing for rotating equipment |
FAQ
FAQ
Q1: What is the primary function of the Commtest VB8?
A1: It is used for portable vibration data collection, analysis, and rotor balancing of rotating machinery.
Q2: How many input channels does the VB8 support?
A2: The device supports 4 simultaneous measurement channels.
Q3: Can it handle different types of vibration sensors?
A3: Yes, it supports accelerometers, velocity sensors, displacement sensors, and proximity probes.
Q4: Does the VB8 provide rotor balancing capabilities?
A4: Yes, it allows both single-plane and dual-plane rotor balancing.
Q5: What analysis functions are available on the VB8?
A5: It provides time waveform, FFT spectrum, orbit analysis, and trend analysis for machinery diagnostics.
Q6: How is data transferred from the VB8 to other systems?
A6: Data can be transferred via USB, Ethernet, or optional Wi-Fi connections.
Q7: Can the VB8 be used in harsh field environments?
A7: Yes, it features a ruggedized protective housing suitable for industrial field use.
Q8: Is external software required for basic operation?
A8: No, the VB8 has integrated software for data collection, analysis, and reporting without needing external programs.
