Technical Specifications
| Parameter | Specification |
|---|---|

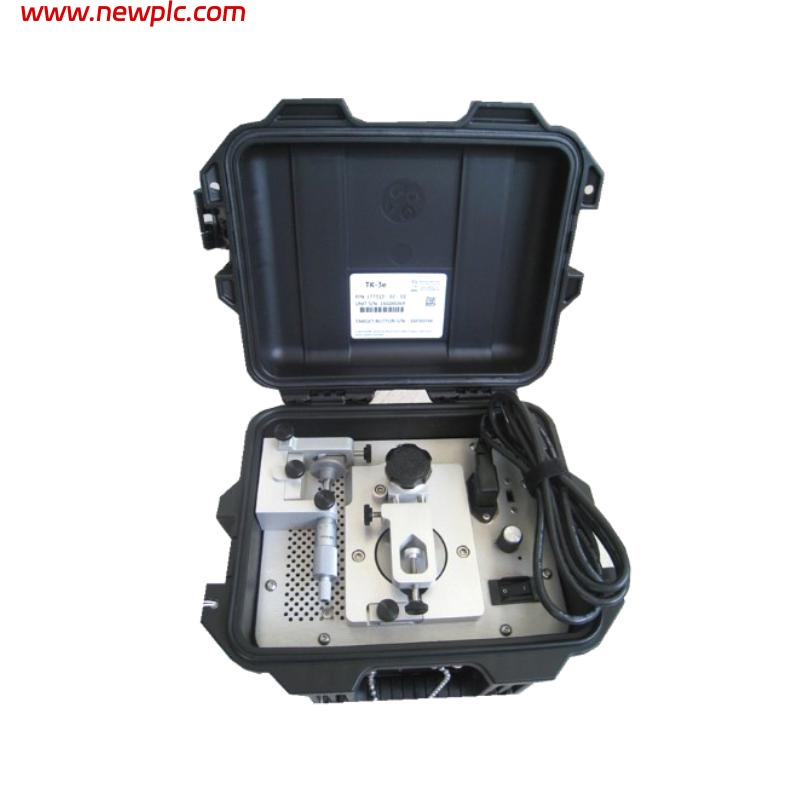

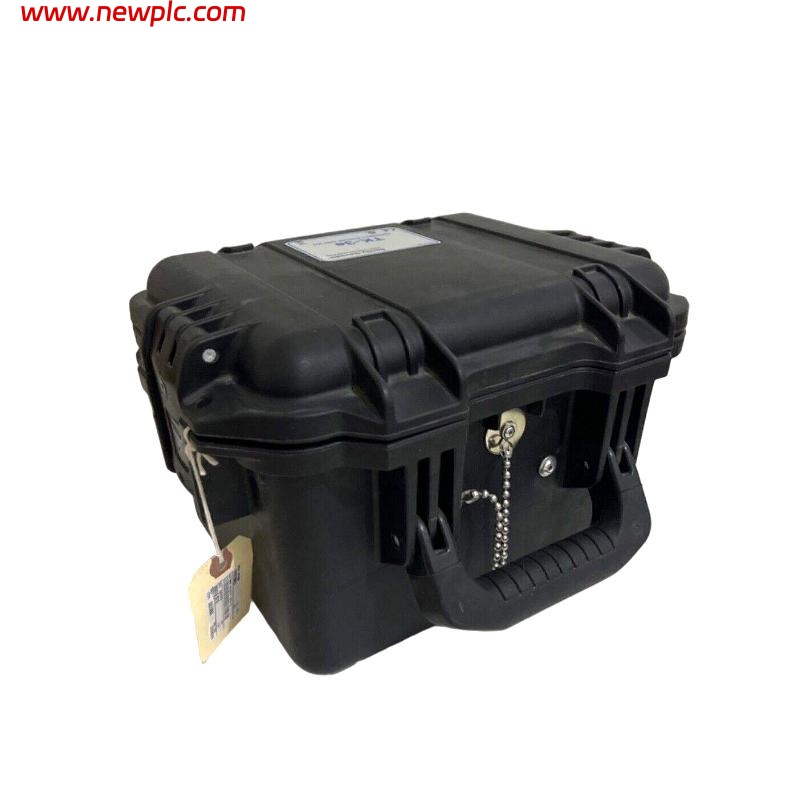

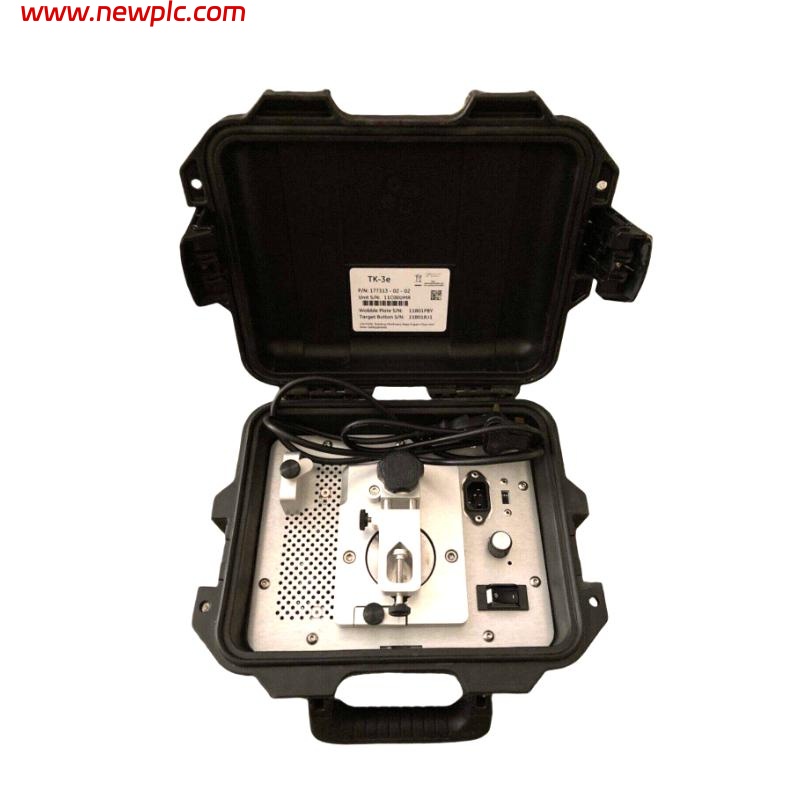

| Product Name | Proximity System Test Kit |
| Model Number | Bently Nevada TK-3E 177313-01-02 |
| Dimensions | 195 × 299 × 248 mm |
| Weight | 5.22 kg |
| Function | Testing, calibration, and verification of proximity probes and vibration measurement systems |
| Compatible Systems | Bently Nevada 3300, 3500, 7200 series and other proximity transducer systems |
| Test Range | 0 to 50 mm (0 to 2 inches) displacement range |
| Frequency Range | DC to 10 kHz |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Input Connections | BNC connectors for probes and extension cables |
| Output Signal | Analog voltage output proportional to displacement |
| Accuracy | ±1% of full-scale reading |
| Display Type | Analog indicator with graduated scale for calibration |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -25°C to +70°C |
| Humidity Range | 0–95% non-condensing |
| Housing Material | Rugged aluminum enclosure |
| Safety Compliance | IEC/EN 61010-1 |
| EMC Compliance | IEC/EN 61326-1 |
| Application | Provides precise testing, calibration, and verification for proximity systems in rotating machinery |
FAQ
FAQ
Q1: What is the purpose of the TK-3E 177313-01-02?
A1: It is designed to test, calibrate, and verify proximity probes and vibration monitoring systems for reliable performance.
Q2: Which proximity systems are compatible with this test kit?
A2: It supports Bently Nevada 3300, 3500, 7200 series and other standard proximity transducer systems.
Q3: How is calibration performed with this kit?
A3: Calibration is achieved using a precision micrometer mechanism to adjust probe position and measure output voltage, verifying linearity.
Q4: What is the accuracy of the TK-3E test kit?
A4: The kit provides an accuracy of ±1% of full-scale reading for precise calibration and testing.
Q5: Can this test kit be used in field conditions?
A5: Yes, its rugged aluminum enclosure allows safe use in industrial and on-site environments.
Q6: Does the TK-3E require software to operate?
A6: No, it operates as a standalone device without the need for additional software.
Q7: Can this kit verify probe linearity and sensitivity?
A7: Yes, it is designed to verify both linearity and sensitivity of proximity probe outputs across the calibration range.
Q8: What are the main benefits of using this test kit?
A8: The kit ensures accurate calibration, reliable probe performance, reduced measurement errors, and compliance with industry standards.
