Technical Specifications
| Parameter | Specification |
|---|---|

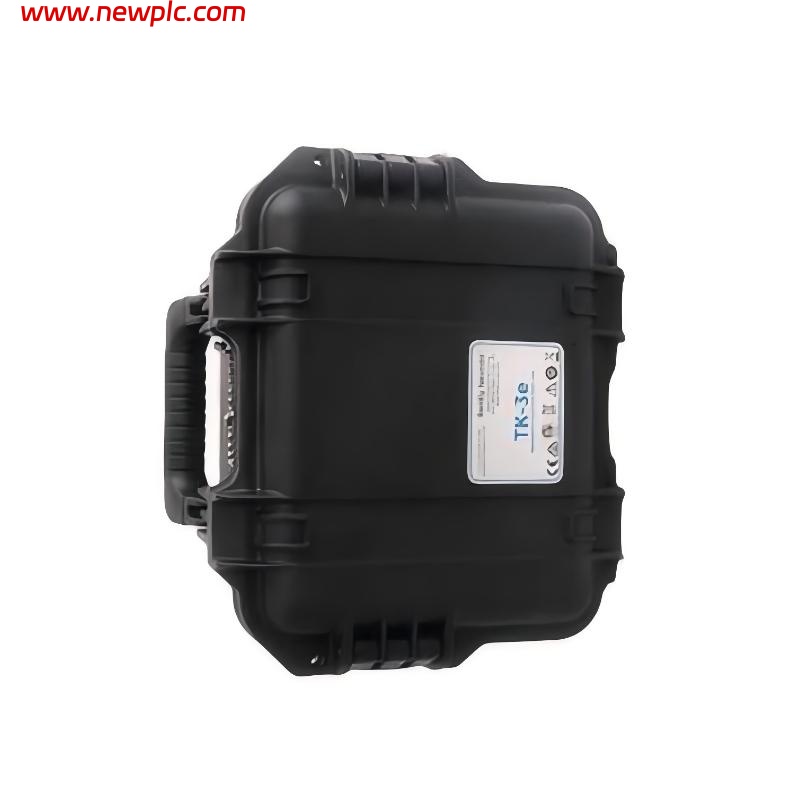

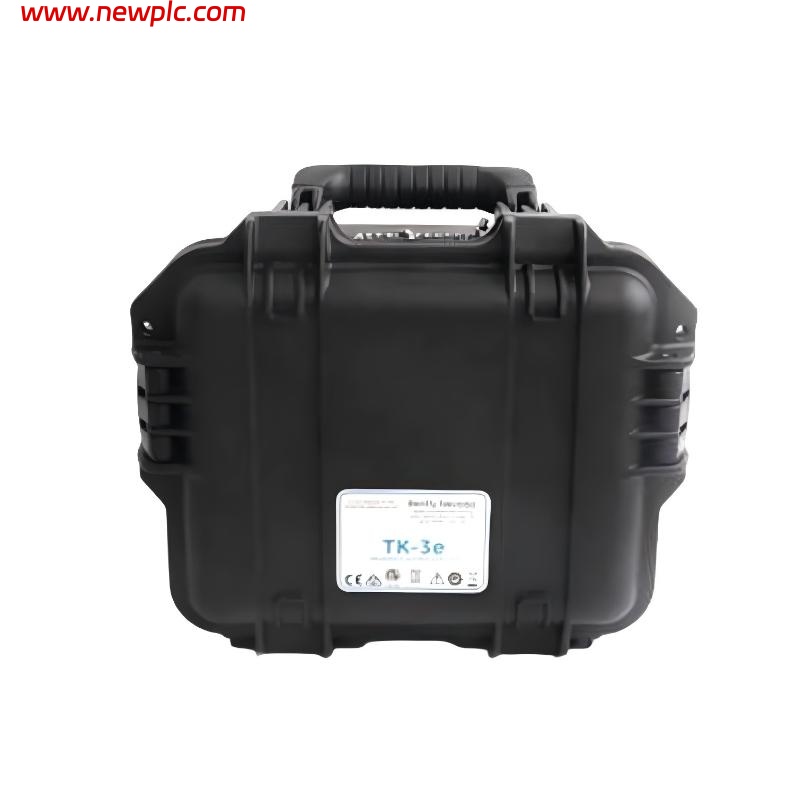

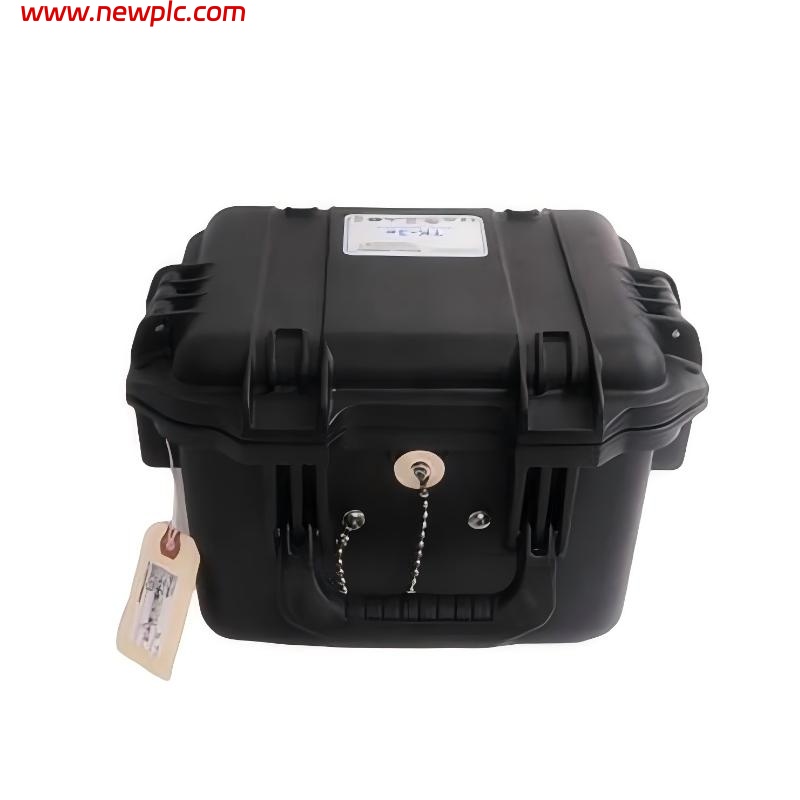

| Product Name | Proximity System Test Kit |
| Model Number | Bently Nevada TK-3E 177313-02-01 |
| Dimensions | 195 × 299 × 248 mm |
| Weight | 5.22 kg |
| Function | Testing, calibration, and verification of proximity probes and vibration monitoring systems |
| Compatible Systems | Bently Nevada 3300, 3500, 7200 series and other proximity transducer systems |
| Test Range | 0 to 50 mm (0 to 2 inches) displacement range |
| Frequency Range | DC to 10 kHz |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Input Connections | BNC connectors for probes and extension cables |
| Output Signal | Analog voltage output proportional to displacement |
| Accuracy | ±1% of full-scale reading |
| Display Type | Analog indicator with graduated scale for calibration |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -25°C to +70°C |
| Humidity Range | 0–95% non-condensing |
| Housing Material | Rugged aluminum enclosure |
| Safety Compliance | IEC/EN 61010-1 |
| EMC Compliance | IEC/EN 61326-1 |
| Application | Provides precise testing, calibration, and verification for proximity systems in rotating machinery |
FAQ
FAQ
Q1: What is the primary function of the TK-3E 177313-02-01?
A1: It is used to test, calibrate, and verify the performance of proximity probes and vibration monitoring systems.
Q2: Which systems can be tested with this kit?
A2: It is compatible with Bently Nevada 3300, 3500, 7200 series and other standard proximity transducer systems.
Q3: How is displacement measured during testing?

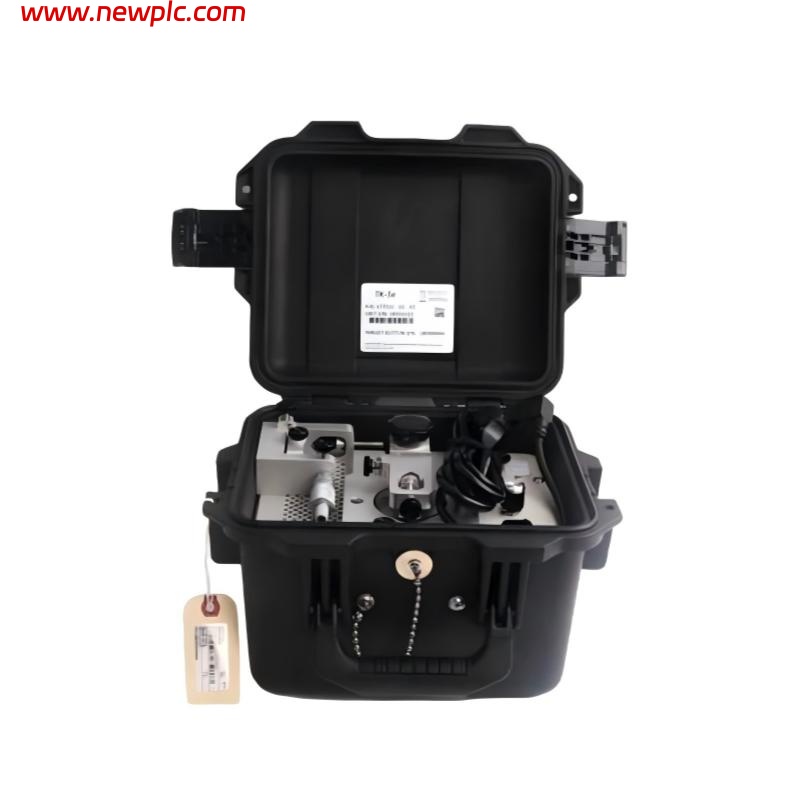

A3: The kit uses a precision micrometer mechanism to simulate probe movement and measure corresponding voltage output.
Q4: What level of accuracy does the test kit provide?
A4: The kit offers an accuracy of ±1% of full-scale reading.
Q5: Can the TK-3E 177313-02-01 be used in industrial environments?
A5: Yes, its rugged aluminum housing is designed for reliable operation in field conditions.
Q6: Is any additional software required to operate the kit?
A6: No, the kit functions as a standalone calibration tool without the need for software.
Q7: Does this kit allow verification of probe linearity and sensitivity?
A7: Yes, it verifies both linearity and sensitivity across the calibration range.
Q8: What are the advantages of using this test kit?
A8: It ensures precise calibration, improves measurement accuracy, verifies probe performance, and supports industry compliance.
