Technical Specifications
| Parameter | Specification |
|---|---|

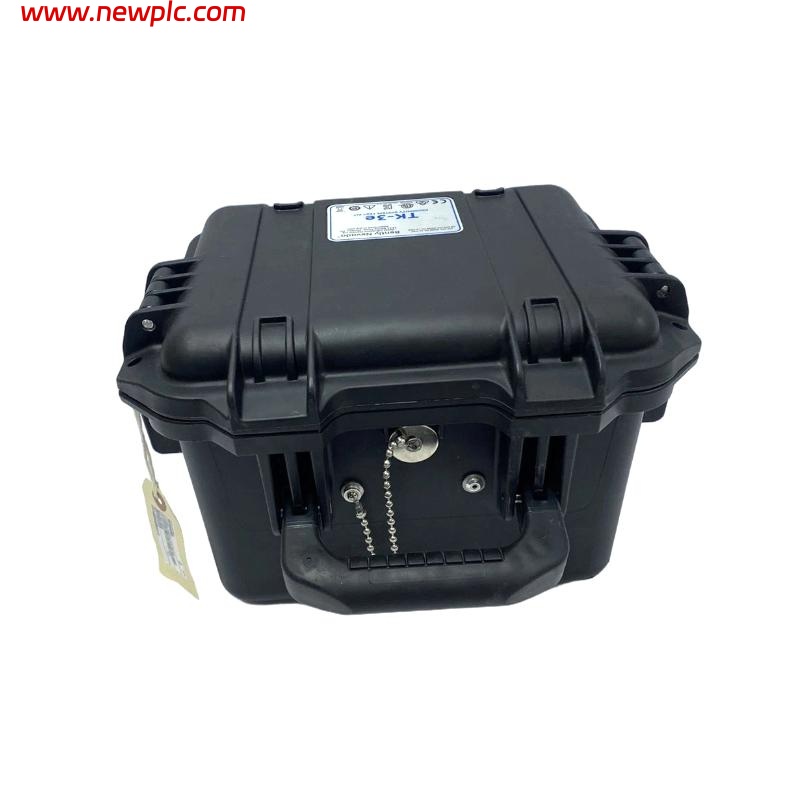

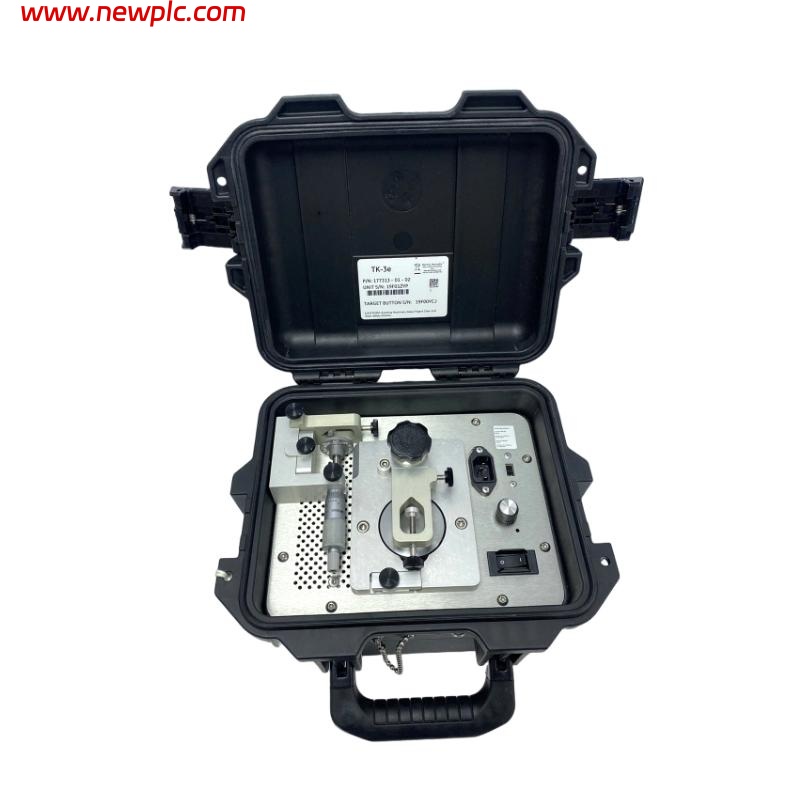

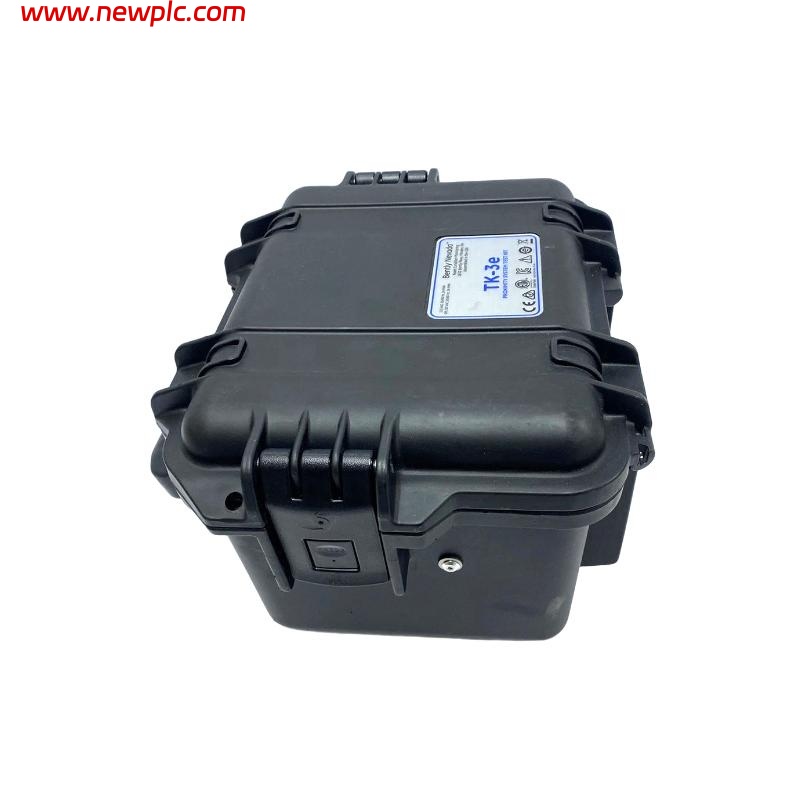

| Product Name | Proximity System Test Kit |
| Model Number | Bently Nevada TK-3E 177313-02-02 |
| Dimensions | 195 × 299 × 248 mm |
| Weight | 5.22 kg |
| Function | Testing, calibration, and verification of proximity probes and vibration monitoring systems |
| Compatible Systems | Bently Nevada 3300, 3500, 7200 series and other proximity transducer systems |
| Test Range | 0 to 50 mm (0 to 2 inches) displacement range |
| Frequency Range | DC to 10 kHz |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Input Connections | BNC connectors for probes and extension cables |
| Output Signal | Analog voltage output proportional to displacement |
| Accuracy | ±1% of full-scale reading |
| Display Type | Analog indicator with graduated scale for calibration |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -25°C to +70°C |
| Humidity Range | 0–95% non-condensing |
| Housing Material | Rugged aluminum enclosure |
| Safety Compliance | IEC/EN 61010-1 |
| EMC Compliance | IEC/EN 61326-1 |
| Application | Provides precise testing, calibration, and verification for proximity systems in rotating machinery |
FAQ
FAQ
Q1: What is the main purpose of the TK-3E 177313-02-02?
A1: It is designed to test, calibrate, and verify proximity probes and vibration monitoring systems in industrial equipment.
Q2: Which proximity systems are compatible with this kit?
A2: The kit is compatible with Bently Nevada 3300, 3500, and 7200 series, as well as other standard proximity transducer systems.
Q3: How does the test kit simulate probe displacement?
A3: It uses a precision mechanical actuator to produce controlled probe movement, generating corresponding analog signals.
Q4: What level of calibration accuracy does the kit provide?
A4: The kit delivers an accuracy of ±1% of the full-scale reading.
Q5: Can this test kit be used in field conditions?
A5: Yes, its rugged aluminum enclosure allows safe and reliable operation in field and industrial environments.
Q6: Is software required to operate the TK-3E 177313-02-02?
A6: No, the kit is fully functional as a standalone calibration tool without additional software.
Q7: Does the kit allow testing of probe linearity and sensitivity?
A7: Yes, it enables verification of both linearity and sensitivity across the full calibration range.
Q8: What benefits does using this test kit provide?
A8: It ensures accurate calibration, improves measurement reliability, validates probe performance, and supports compliance with industry standards.
