Technical Specifications
| Parameter | Specification |
|---|---|

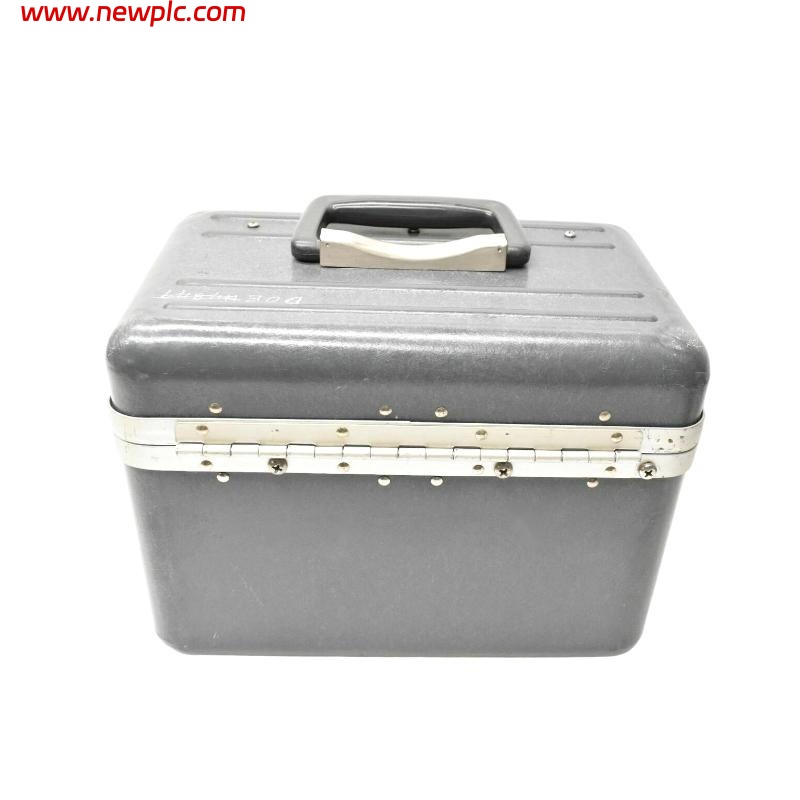

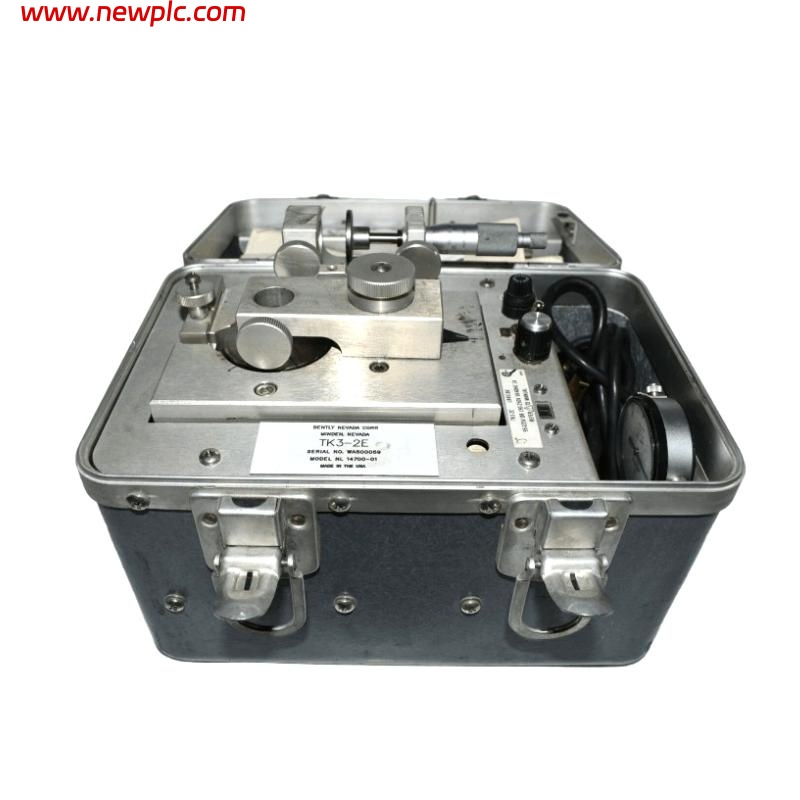

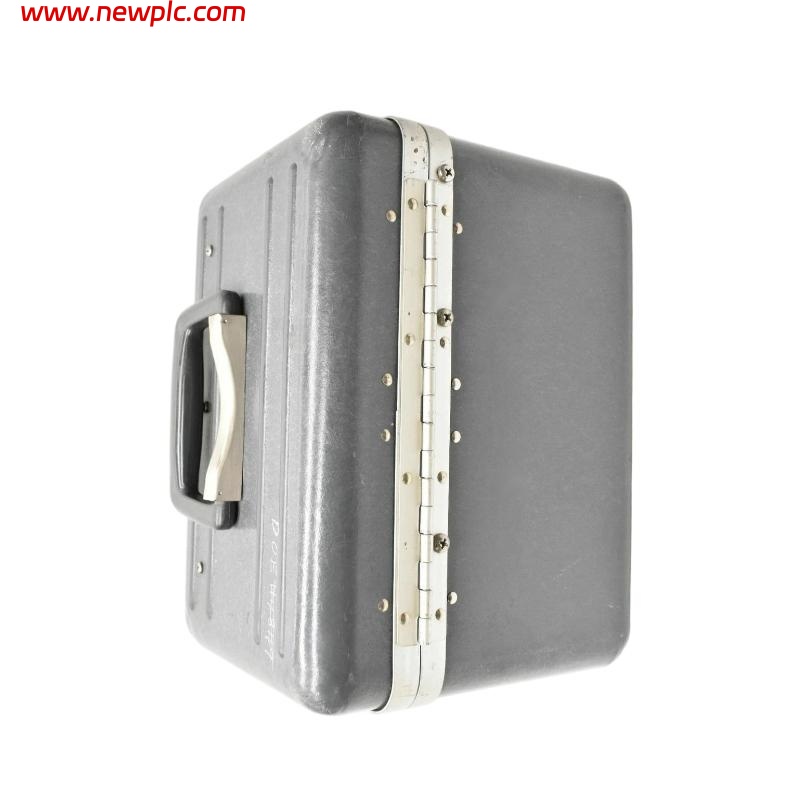

| Product Name | Calibration Instrument |
| Model Number | Bently Nevada TK3-2E 14700-01 |
| Dimensions | 195 × 299 × 248 mm |
| Weight | 5.22 kg |
| Function | Used for calibration and verification of Bently Nevada proximity probe systems |
| Compatible Systems | 3300, 3500, 7200, and other Bently Nevada proximity transducer systems |
| Calibration Range | 0 to 50 mm (0 to 2 inches) displacement |
| Frequency Range | DC to 10 kHz |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Input Signal | Proximity probe and extension cable input |
| Output Signal | Voltage corresponding to shaft displacement (mV/μm or mV/mil) |
| Accuracy | ±1% of full-scale reading |
| Display Type | Analog meter with calibration scale |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -25°C to +70°C |
| Humidity Range | 0–95% non-condensing |
| Calibration Interface | BNC connectors for signal input/output |
| Material | Rugged aluminum housing |
| Safety Compliance | IEC/EN 61010-1 |
| EMC Compliance | IEC/EN 61326-1 |
| Typical Applications | Calibration and functional testing of proximity probe systems used in rotating machinery condition monitoring |
FAQ
FAQ
Q1: What is the primary purpose of the Bently Nevada TK3-2E 14700-01 instrument?
A1: The TK3-2E is designed to provide precise calibration and verification of Bently Nevada proximity probe systems to ensure accurate vibration and displacement measurements.
Q2: Which transducer systems are compatible with the TK3-2E?
A2: It supports a wide range of Bently Nevada proximity systems including the 3300, 3500, and 7200 series, as well as other compatible proximity transducers.
Q3: How is calibration performed using this instrument?
A3: Calibration is performed by connecting the proximity probe and extension cable to the instrument, adjusting the distance using the built-in micrometer, and verifying the output voltage against known displacement values.
Q4: What accuracy level can be achieved with the TK3-2E?
A4: The instrument offers an accuracy of ±1% of full-scale, ensuring reliable calibration results for field and laboratory applications.
Q5: Does it support different power sources for global use?
A5: Yes, it operates on 100–240 V AC power input, making it suitable for use in international environments.
Q6: Can it be used to test probe linearity?
A6: Absolutely. The TK3-2E allows users to check the linearity of probe output versus displacement, helping to identify potential sensor drift or installation errors.
Q7: Is it portable for field calibration work?
A7: Yes, the TK3-2E is built with a durable aluminum enclosure and compact design, making it ideal for on-site calibration tasks in industrial environments.
Q8: What are the key benefits of using this calibration instrument?
A8: It ensures accurate transducer performance verification, improves measurement confidence, reduces system downtime, and complies with ISO and API vibration monitoring standards.
