Technical Specifications
| Item | Specification |
|---|---|

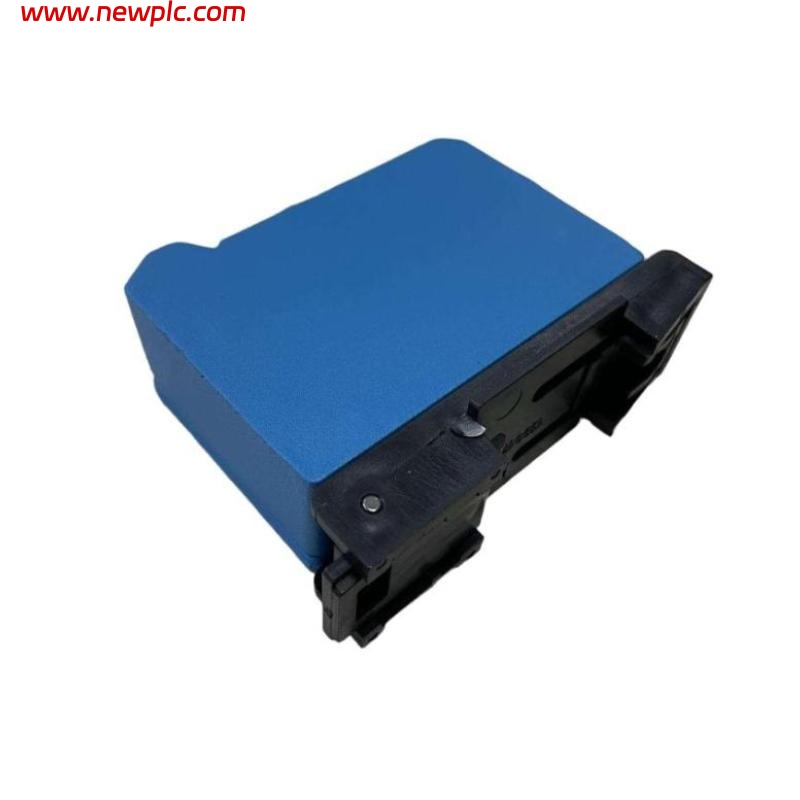

| Product Model | Bently Nevada 330980-71-05 3300 XL NSv Front Sensor |
| Type | Front-end Velocity Sensor (NSv Series) |
| Function | Monitors front-end vibration of rotating machinery for real-time vibration monitoring and condition diagnostics |
| Sensitivity | 100 mV/in/sec (nominal) |
| Frequency Range | 10 Hz – 1 kHz |
| Measurement Range | 0 – 50 mm/s (RMS) |
| Transverse Sensitivity | ≤ 5% |
| Output Type | Voltage output |
| Power Supply | Constant current supply (2 – 10 mA @ 18 – 30 VDC) |
| Mounting Method | Threaded mounting |
| Housing Material | Stainless steel |
| Connector Type | 2-pin connector |
| Protection Class | IP65 |
| Operating Temperature | -30 °C to +120 °C |
| Storage Temperature | -40 °C to +125 °C |
| Humidity Range | 0 – 95% (non-condensing) |
| Dimensions | Total Length: 7.0 meters |
| Weight | 0.255 kg |
FAQ
FAQ
Q1: What is the main purpose of the 330980-71-05 front sensor?
A1: It is used to monitor front-end vibration of rotating machinery, converting vibration into electrical signals for analysis and condition diagnostics.
Q2: What is the sensor’s sensitivity?
A2: The sensitivity is 100 mV/in/sec (nominal).
Q3: What is the frequency response range?
A3: The frequency range is 10 Hz – 1 kHz.
Q4: What are the power requirements?
A4: Requires a constant current supply of 2 – 10 mA at 18 – 30 VDC.
Q5: How is the sensor mounted?
A5: Mounted using a threaded connection for secure installation.
Q6: What is the housing material?
A6: Stainless steel, durable and corrosion-resistant.
Q7: What is the operating temperature range?
A7: The sensor operates between -30 °C and +120 °C.
Q8: What are the dimensions and weight of the sensor?
A8: Total Length: 7.0 meters, weight approximately 0.255 kg.
