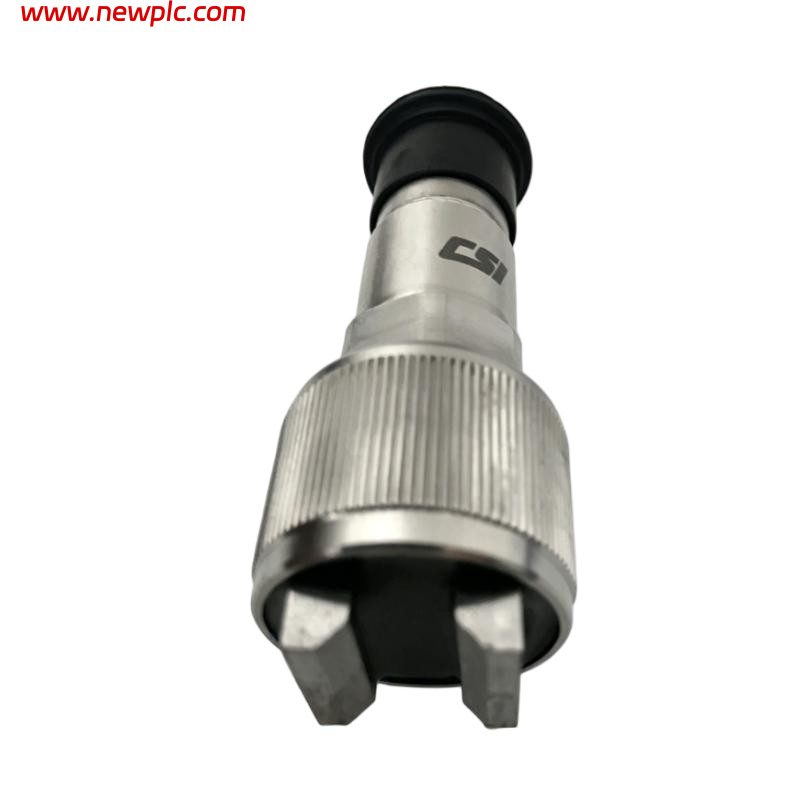

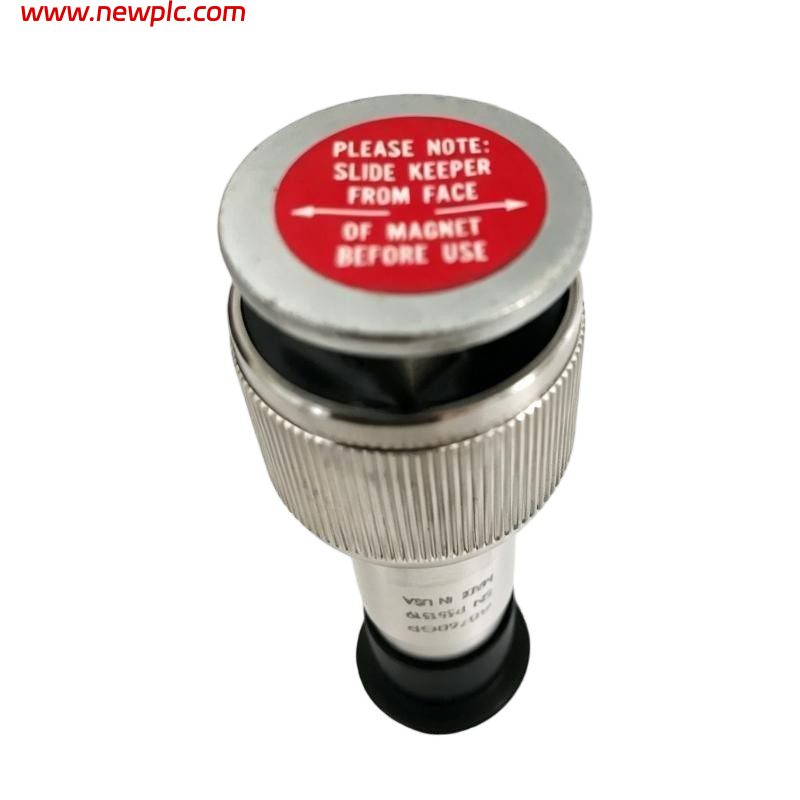

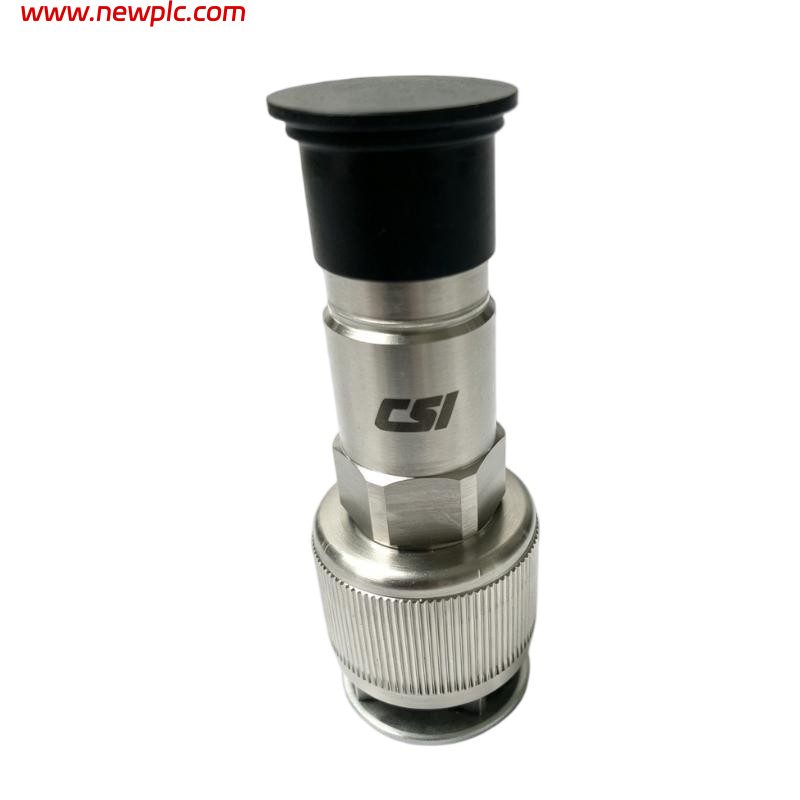

Emerson A0760GP Premium General Purpose Accelerometer

FAQ

Q1: What is the Emerson A0760GP used for?
The Emerson A0760GP is a premium industrial accelerometer designed for vibration monitoring and predictive maintenance. It is widely used to collect vibration data from rotating equipment such as motors, pumps, compressors, fans, and gearboxes.

Q2: Which Emerson systems are compatible with the A0760GP?
The A0760GP is optimized for use with Emerson AMS 2140 vibration analyzers and other AMS Machinery Health Monitoring solutions. Its high repeatability makes it suitable for both route-based and online condition monitoring.

Q3: What is the sensitivity of the A0760GP?
The sensor provides a nominal sensitivity of 100 mV/g (10.2 mV/m/s²) with a tolerance of ±5%, delivering accurate and repeatable vibration measurements over a wide operating range.

Q4: What operating environments is the A0760GP designed for?
The accelerometer is suitable for demanding industrial environments, with an operating temperature range from -54°C to +121°C. Its stainless steel housing and welded hermetic seal provide excellent resistance to moisture, dust, oil, and vibration.

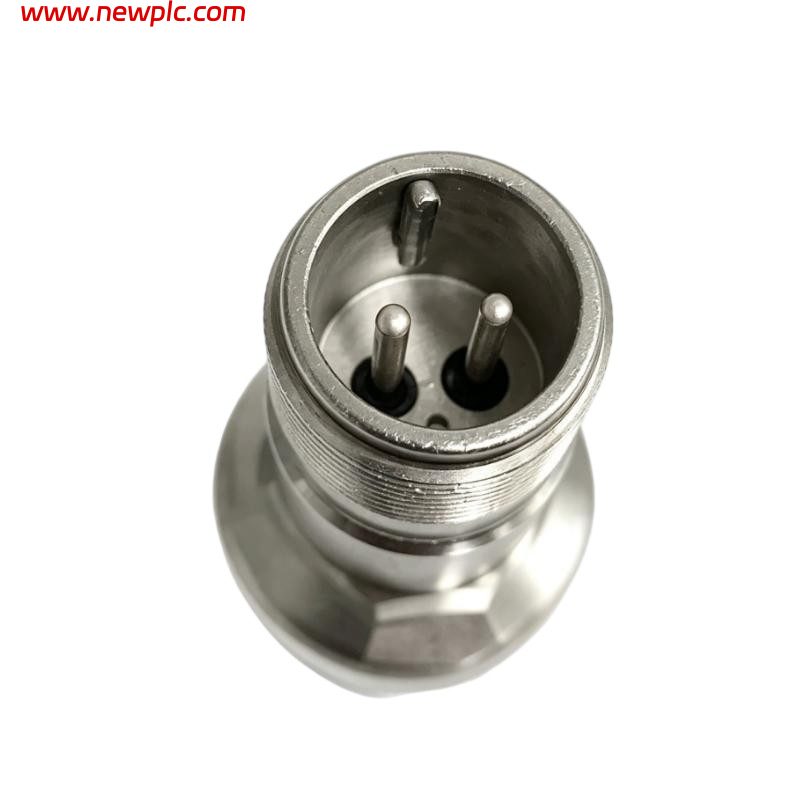

Q5: What type of electrical connection does the A0760GP use?
The sensor features a MIL-C-5015 two-pin top connector and requires an 18–28 VDC IEPE constant-current power supply for normal operation.

Q6: Can the A0760GP withstand high vibration and shock?
Yes. The accelerometer is designed for industrial reliability and can withstand shock levels up to 5,000 g peak, making it suitable for harsh machinery monitoring applications.

Q7: How is the A0760GP installed?
The sensor mounts using a 1/4-28 UNF-2B threaded stud. Emerson recommends a tightening torque of 2 to 5 lb-ft (2.7 to 6.8 Nm) to ensure optimal vibration transmission and measurement accuracy.

Q8: What are the main advantages of the Emerson A0760GP?
The A0760GP combines high sensitivity, a wide frequency response, excellent measurement repeatability, rugged stainless steel construction, and factory multi-point calibration. These features make it an excellent choice for predictive maintenance and machinery condition monitoring in critical industrial applications.
