Technical Specifications
| Item | Specification |
|---|---|

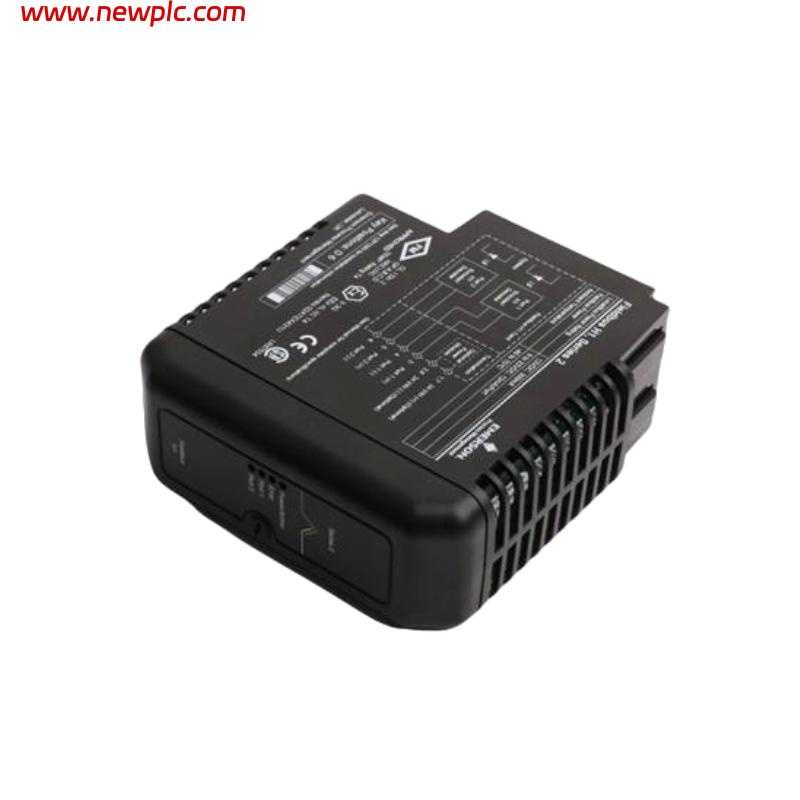

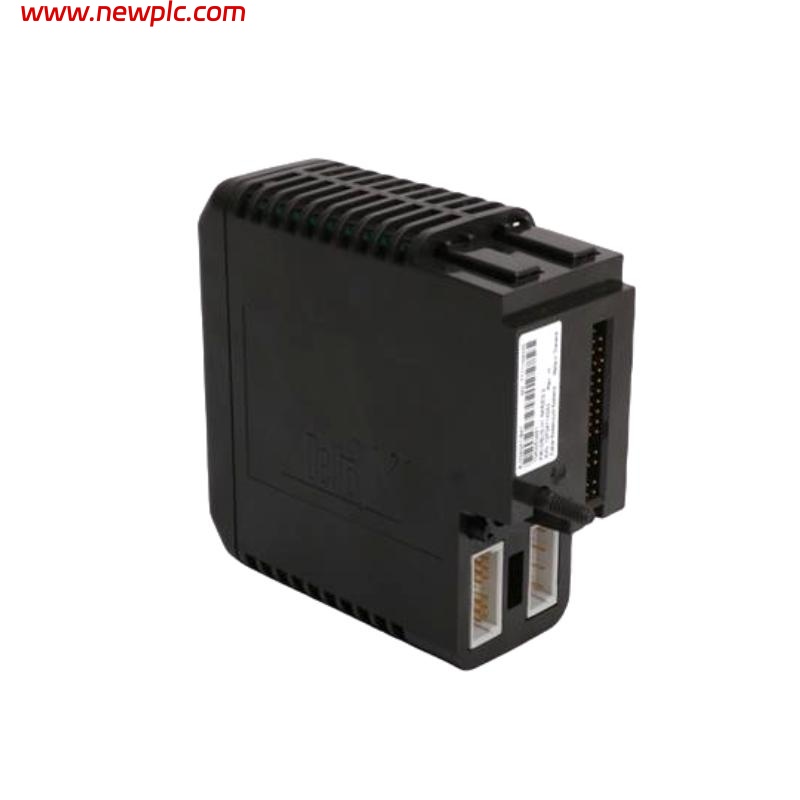

| Product Model | Emerson CE4006P2 |
| Product Type | Serial Interface Module |
| Number of Serial Ports | 2 |
| Number of Data Sets per Serial Port | 16 (Total 32) |
| Supported Protocols | Modbus RTU, Modbus ASCII |
| Port Types | RS232, RS422/485 (Half Duplex and Full Duplex) |
| Baud Rates | 300, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Bits | 7 or 8 |
| Stop Bits | 1 or 2 |
| Parity | None, Even, Odd |
| Isolation | Each port isolated from system and other ports (external grounding required) |
| Power Supply | 12 VDC, 300 mA |
| Operating Temperature Range | -20°C to +55°C |
| Storage Temperature Range | -40°C to +70°C |
| Protection Rating | IP20 |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.18 kg |
FAQ
FAQ
Q1: What type of module is the CE4006P2?
A1: The CE4006P2 is a serial interface module from Emerson, designed to connect the DeltaV system to devices supporting serial protocols.
Q2: What serial port types does it support?
A2: It supports RS232, RS422/485 (half duplex and full duplex) serial port types.
Q3: How many data sets can each serial port handle?
A3: Each serial port supports 16 data sets, totaling 32 data sets.
Q4: What communication protocols are supported?
A4: It supports Modbus RTU and Modbus ASCII protocols.
Q5: What are the power requirements?
A5: It requires a 12 VDC, 300 mA power input.
Q6: What is the operating temperature range?
A6: The operating temperature range is -20°C to +55°C.
Q7: How is the module installed?
A7: The module can be mounted on a DIN rail.
Q8: What certifications does it comply with?
A8: It complies with CE, CSA, ATEX, and IECEx certification standards.
