Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Emerson Control Techniques (Now Nidec Control Techniques) |

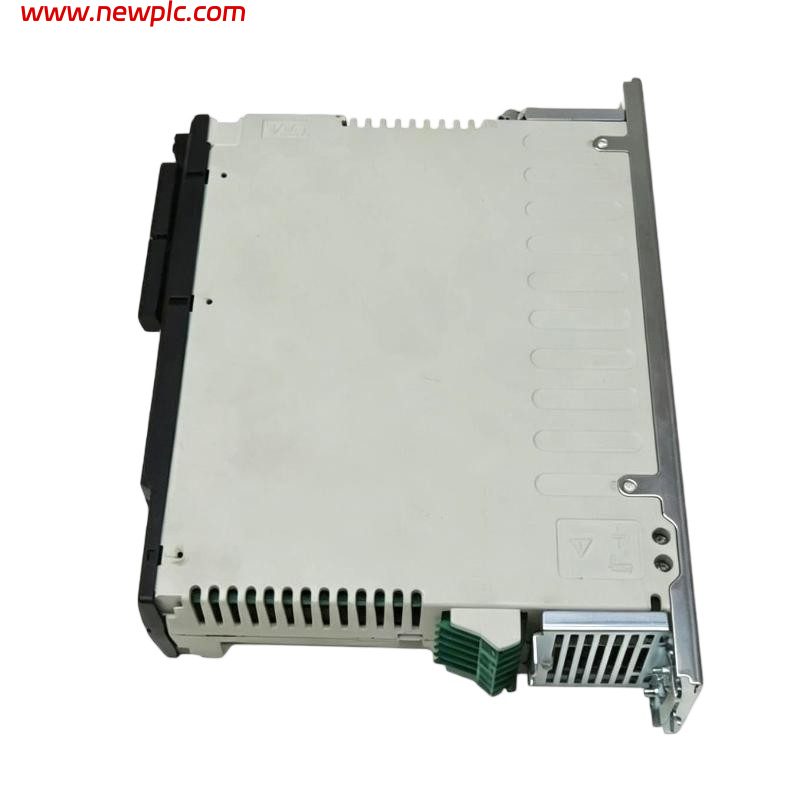

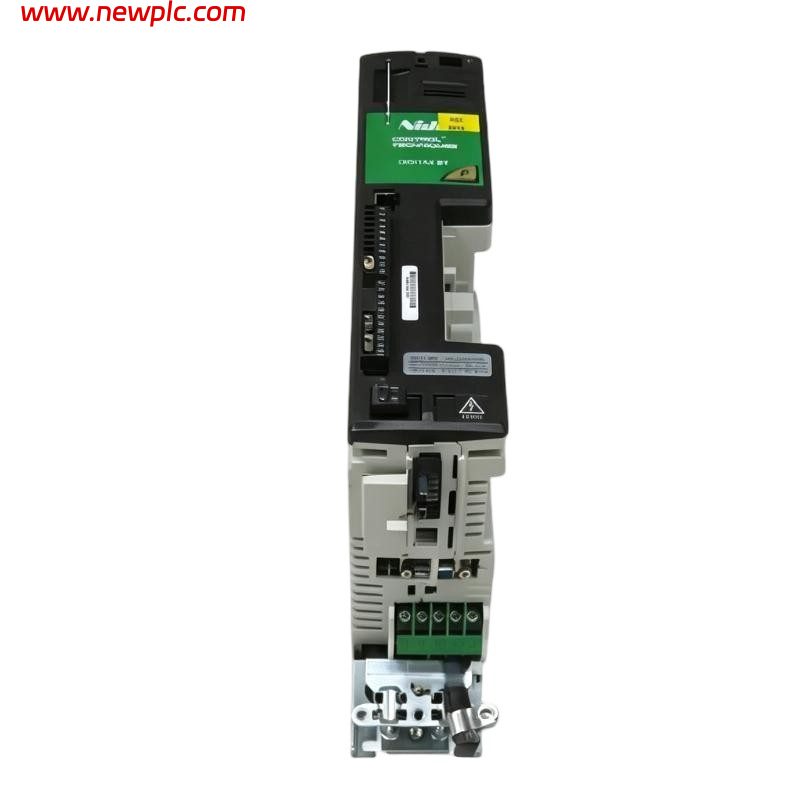

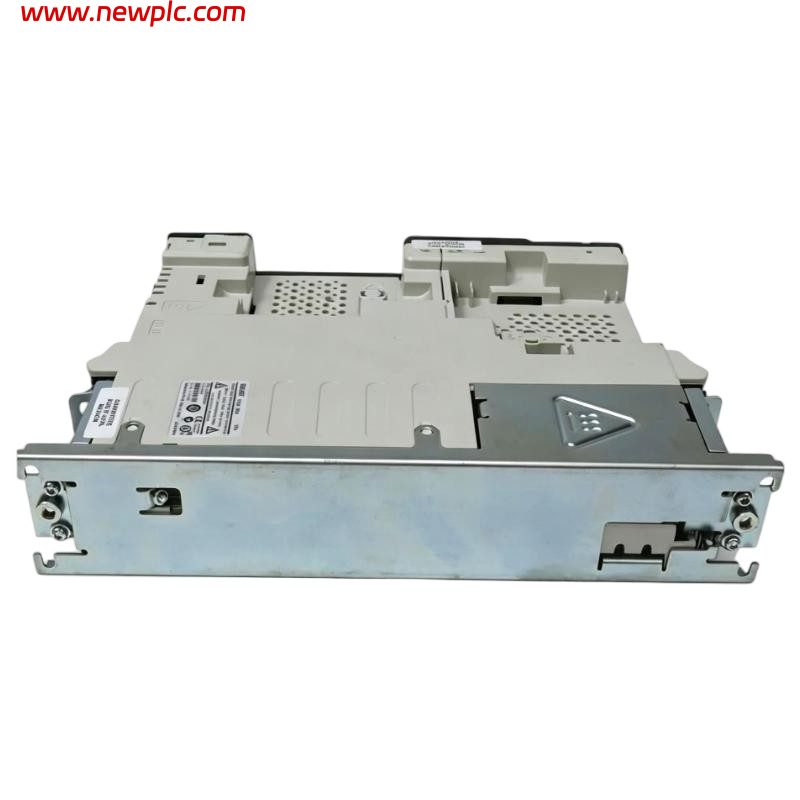

| Product Model | DST1402 |
| Product Type | Servo Drive |
| Series | Digitax ST |
| Function | High-performance AC servo drive for precision motion control applications |
| Input Voltage | 380–480 VAC, 3-Phase |
| Input Frequency | 48–65 Hz |
| Rated Input Current | 4.3 A |
| Continuous Output Current | 2.7 A |
| Peak Output Current | 8.1 A |
| Rated Power | Approx. 1.3 kW (application dependent) |
| Control Modes | Position Control, Velocity Control, Torque Control |
| Servo Feedback | Incremental Encoder, Absolute Encoder, Resolver, Sine/Cosine Encoder |
| Communication Options | Modbus RTU (RS-485) standard; optional EtherCAT, EtherNet/IP, PROFINET, PROFIBUS-DP, DeviceNet, CANopen, SERCOS, CTNet, CTSync |
| Safety Function | Safe Torque Off (STO) |
| EMC Filter | Integrated |
| Protection Rating | IP20 |
| Mounting Type | Panel Mount |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | 0°C to +50°C |
| Application | CNC machines, packaging equipment, robotics, conveyors, printing machinery, textile equipment, and high-performance motion control systems |
| Dimensions (W × H × D) | 62 × 322 × 226 mm |
| Weight | 2.1 kg |
| Condition | New and original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the Emerson DST1402 used for?
The DST1402 is used to control AC servo motors in applications requiring precise motion control, including CNC machine tools, packaging machinery, robotics, printing equipment, and automated production systems.
Q2: What type of product is the DST1402?
The DST1402 is a Digitax ST intelligent servo drive that provides high-performance position, velocity, and torque control for industrial servo systems.
Q3: What are the electrical ratings of the DST1402?
The drive operates from a 380–480 VAC three-phase input, has a 4.3 A rated input current, 2.7 A continuous output current, and 8.1 A peak output current.
Q4: What are the dimensions and weight of the DST1402?
The drive measures approximately 62 × 322 × 226 mm and weighs approximately 2.1 kg (without keypad or optional modules).
Q5: Which feedback devices are supported?
The DST1402 supports incremental encoders, absolute encoders, resolvers, and sine/cosine encoders, allowing compatibility with a wide range of servo motors.
Q6: Which communication protocols are available?
The drive includes RS-485 with Modbus RTU as standard and supports optional industrial networks such as EtherCAT, EtherNet/IP, PROFINET, PROFIBUS-DP, CANopen, DeviceNet, and SERCOS through expansion modules.
Q7: Does the DST1402 include safety features?
Yes. The DST1402 includes an integrated Safe Torque Off (STO) function, helping improve operator safety and comply with modern machine safety requirements.
Q8: What are the advantages of the Emerson DST1402?
The DST1402 offers high dynamic performance, compact dimensions, multiple encoder compatibility, integrated STO safety, flexible industrial networking, excellent servo response, and reliable operation for demanding industrial automation applications.
