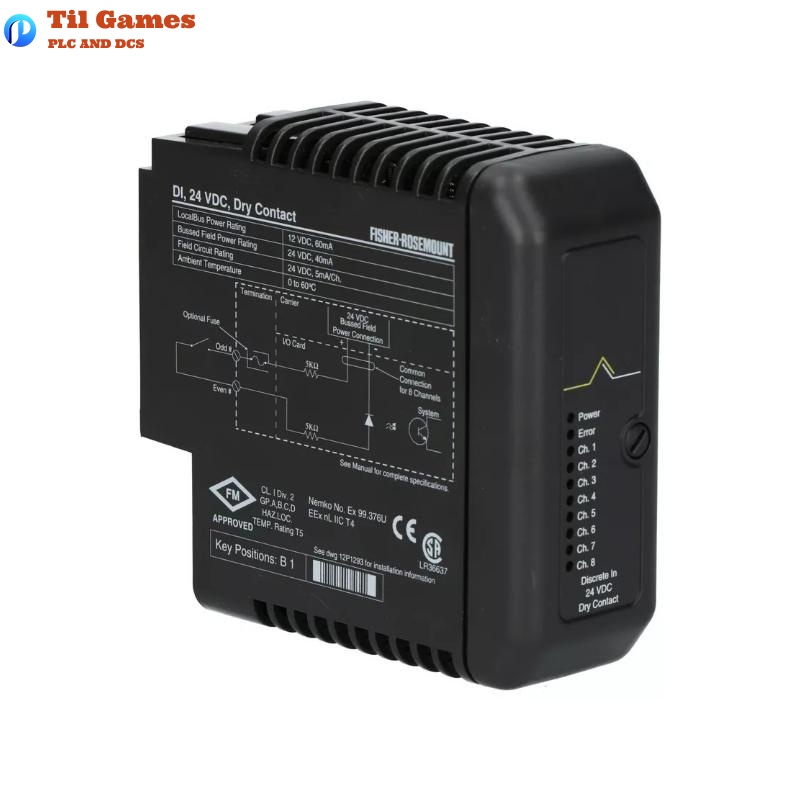

Emerson KJ3001X1-BB1 DeltaV Digital Input Card Technical Specifications
| Parameter Category | Specification |
|---|---|
| Model | KJ3001X1-BB1 |
| Input Type | Dry Contact, 8 Channels |
| Channel Voltage | 24 VDC at 5 mA per channel |
| Module Power | LocalBus: 12 VDC at 100 mA |
| Operating Temperature | 0 to 60°C |
| Humidity Range | 5% to 95% Non-Condensing |
| Shock Resistance | 10g, Half Sinewave for 11 ms |
| Vibration Resistance | 5–16Hz at 1mm peak-to-peak; 16–150Hz at 0.5g |
| Air Contaminants | ISA-S71.04-1985, Class G3 |
| Protection Rating | IP20 |
| Terminal Block Key | B1 |
| Installation Zone | ATEX Zone 2, II 3 G, EEx nL IIC T4 |
| Safety Approval | CL. I Div. 2 GP.A,B,C,D; Temperature Rating T4 |
| Hot Swappable | Allowed with power ON, one module at a time (field power off) |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.4 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is the KJ3001X1-BB1 module hot-swappable?
A1: Yes, but only one module at a time and the field power must be turned off before removal/insertion.
Q2: What type of input does the module support?
A2: It supports dry contact input with 8 channels per module.
Q3: What kind of environments is the module suitable for?
A3: It is rated for G3 level airborne contaminants with IP20 ingress protection.
Q4: How resistant is the module to shock and vibration?
A4: The module withstands 10g shock and 0.5g vibration, per industrial standards.
Q5: Does the KJ3001X1-BB1 require calibration?
A5: No, it is factory-calibrated and maintenance-free.
Q6: Is the module certified for use in hazardous areas?
A6: Yes, it has ATEX Zone 2 and Class I, Div 2 certifications.
Q7: What should be noted during installation?
A7: Ensure the terminal block keying is set to B1 and refer to the official installation manuals.
Q8: What power input does the module require?
A8: It requires 12 VDC at 100 mA from the system LocalBus.
