Technical Specifications
| Item | Specification |
|---|---|

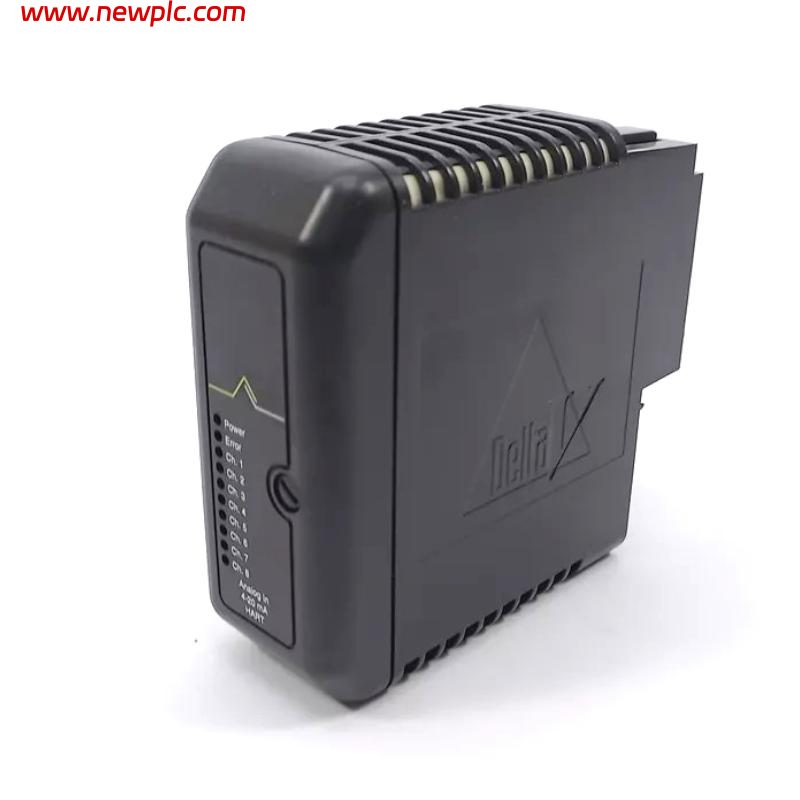

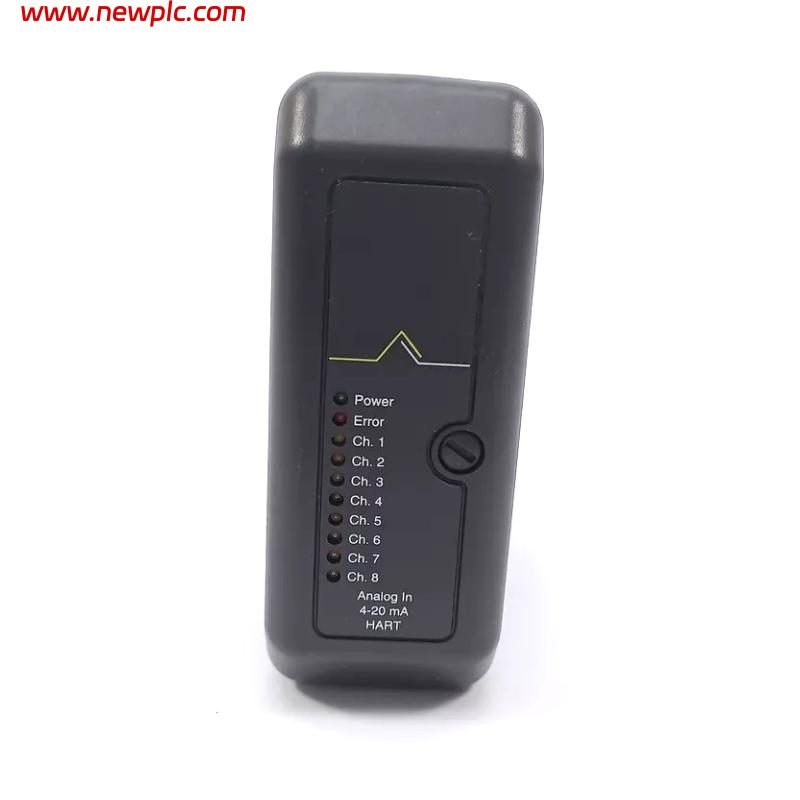

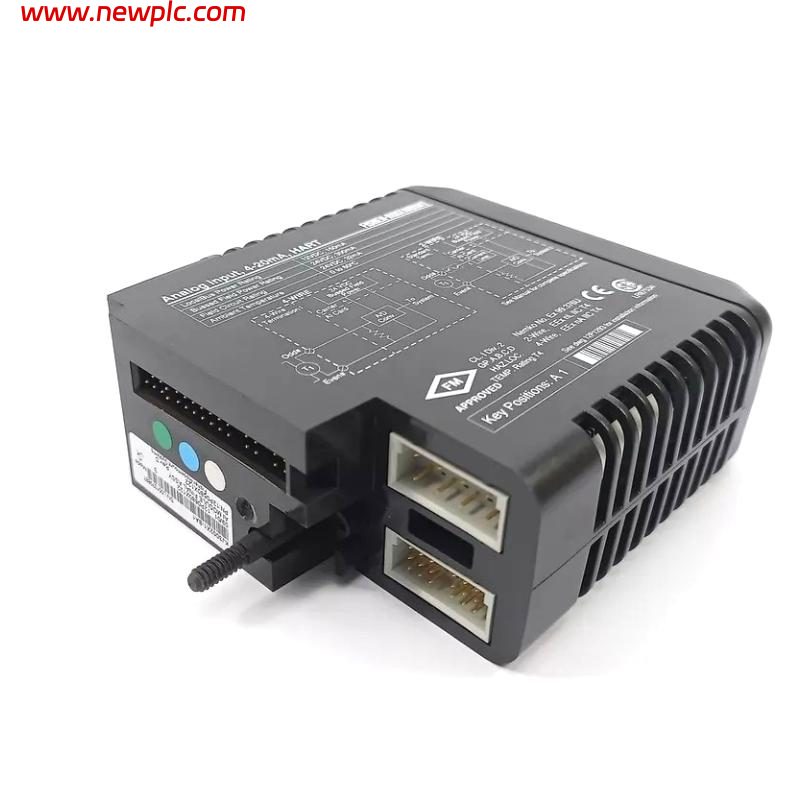

| Product Name | Emerson KJ3002X1-BA1 |
| Product Type | Analog Input Module |
| Product Series | DeltaV S-Series |
| Manufacturer | Emerson |
| System Platform | DeltaV Distributed Control System (DCS) |
| Function | 8-channel analog signal acquisition module |
| Input Type | 4–20 mA current loop |
| HART Support | Yes (HART-enabled smart transmitter communication) |
| Number of Channels | 8 isolated analog input channels |
| Signal Conditioning | Built-in signal isolation and conditioning |
| Resolution | 16-bit analog-to-digital conversion |
| LocalBus Power | 12 V DC @ 150 mA |
| Field Power | 24 V DC (bussed field power support) |
| Field Circuit Rating | 24 V DC @ 32 mA per loop |
| System Compatibility | Emerson DeltaV S-Series I/O subsystem |
| Communication | System backplane / DeltaV LocalBus |
| Diagnostic Function | Channel-level diagnostics and device health monitoring |
| Redundancy Support | System-dependent (DeltaV architecture-based) |
| Mounting Type | DeltaV I/O carrier / baseplate mounted |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| EMC Compliance | Industrial EMC standards (IEC 61326 / IEC 61000 series) |
| Vibration Resistance | IEC 60068 industrial standard |
| Shock Resistance | 10 g (11 ms half-sine) |
| Certifications | CE, ATEX / IECEx (system dependent), UL |
| Application | Oil & gas, chemical, power generation, process automation |
| Country of Origin | USA |
| Dimensions (W × H × D) | 233 × 180 × 64 mm |
| Weight | 0.18 kg |
FAQ
FAQ
Q1: What is the KJ3002X1-BA1 used for?
It is an analog input module used in Emerson DeltaV systems to collect and process 4–20 mA analog signals from field instruments such as pressure, flow, temperature, and level transmitters.
Q2: How many input channels does it have?
The module provides 8 independent analog input channels, each capable of handling 4–20 mA signals.
Q3: Does it support HART communication?
Yes. It supports HART protocol, allowing digital communication with smart field devices for diagnostics and configuration.
Q4: What system is it designed for?
It is designed specifically for the Emerson DeltaV Distributed Control System (DCS) S-Series architecture.
Q5: What is the operating temperature range?
The module operates in industrial environments from 0°C to +60°C, suitable for control cabinet installations.
Q6: What are the dimensions and weight?
It measures approximately 233 × 180 × 64 mm and weighs about 0.18 kg.
Q7: What type of signals does it accept?
It accepts standard 4–20 mA current loop signals from industrial transmitters and sensors.
Q8: Where is it commonly used?
It is widely used in oil & gas, chemical processing, power plants, water treatment, and other continuous process industries requiring reliable analog data acquisition.
