Technical Specifications
| Item | Specification |
|---|---|

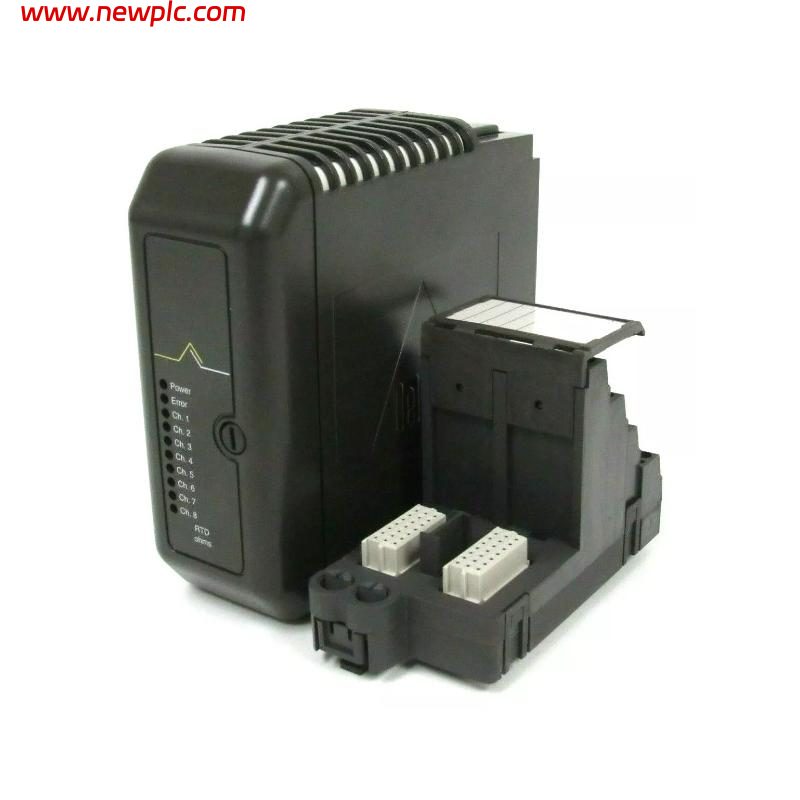

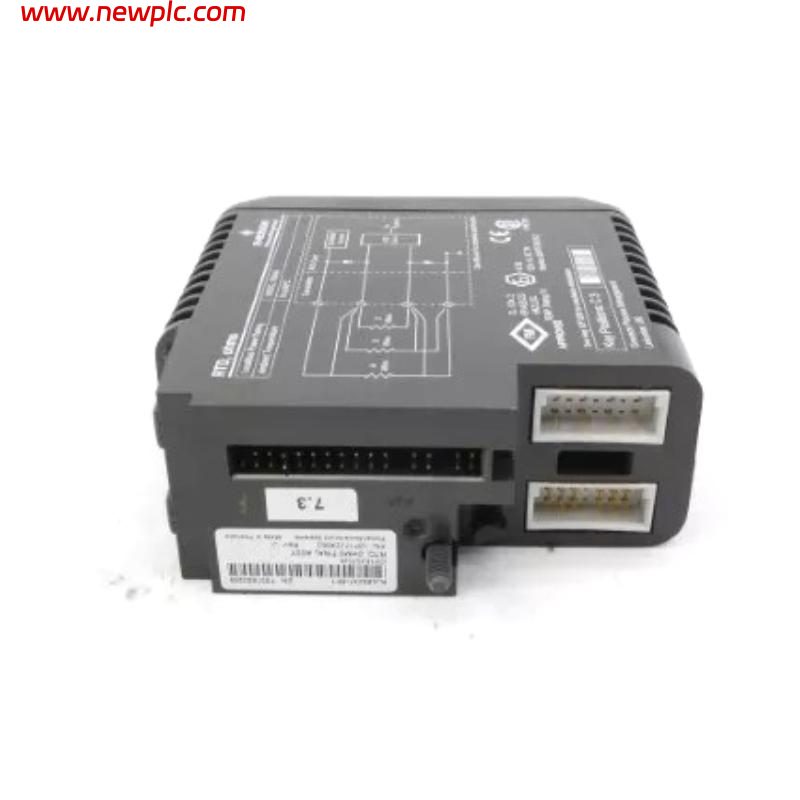

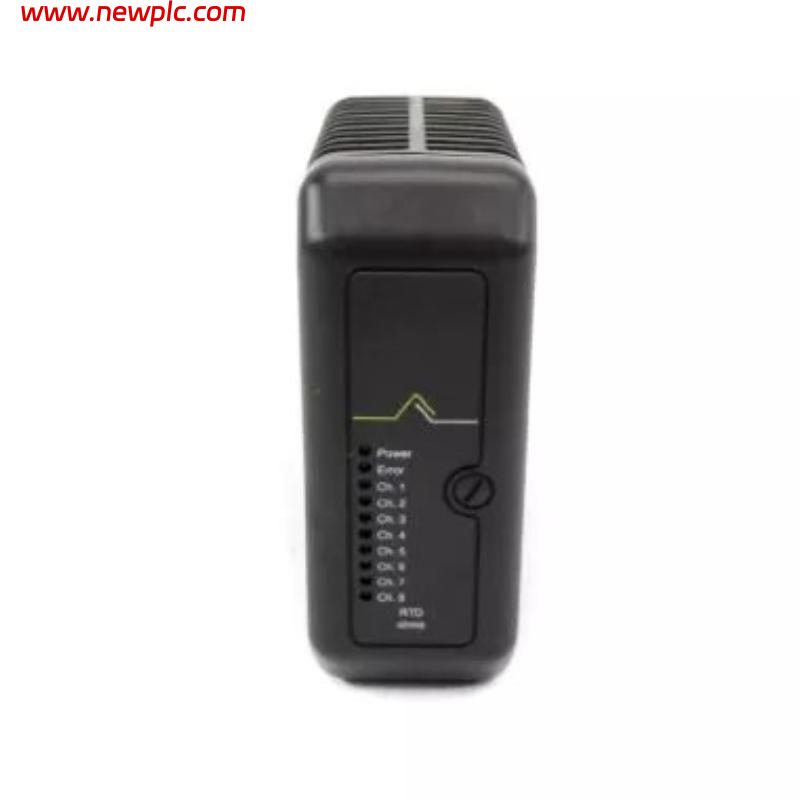

| Product Name | Emerson KJ3002X1-BF1 |
| Alternate Part Number | 12P1732X042 / 12P1732X082 |
| Product Type | RTD Input Module |
| Product Series | DeltaV™ Distributed Control System |
| Manufacturer | Emerson |
| Function | Temperature Signal Acquisition Module |
| Number of Input Channels | 8 Channels |
| Supported Input Types | RTD, Thermocouple, mV, VDC |
| RTD Support | Multi-type RTD Temperature Sensors |
| Accuracy | ±0.1% of Reading |
| Update Rate | 8 Inputs per 100 ms |
| Resolution | High-Precision Analog Measurement |
| LocalBus Power Rating | 12 V DC at 160 mA |
| Field Circuit Rating | 5.5 V DC at 0.6 mA per Channel |
| Power Consumption | 1.5 W |
| Communication | DeltaV LocalBus |
| Diagnostics | Channel-Level Diagnostics and Status Monitoring |
| Shielding | Integrated Shield Support |
| Mounting Type | DeltaV I/O Carrier Mounting |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% Non-Condensing |
| Vibration Resistance | 1 mm Peak-to-Peak (5–16 Hz), 0.5 g (16–150 Hz) |
| Shock Resistance | 10 g, 11 ms Half-Sine |
| Airborne Contaminants | ISA-S71.04 Class G3 |
| Hazardous Area Certifications | ATEX, IECEx, FM |
| Application | Process Control, Oil & Gas, Chemical, Power Generation |
| Country of Origin | USA |
| Dimensions (W × H × D) | Approx. 46 × 102 × 109 mm |
| Weight | Approx. 0.20 kg |
FAQ
FAQ
Q1: What is the KJ3002X1-BF1 used for?
The KJ3002X1-BF1 is used to acquire temperature signals from RTD sensors and other low-level temperature measurement devices in Emerson DeltaV control systems.
Q2: How many input channels are available?
The module provides 8 input channels for temperature and low-level analog signal measurement.
Q3: Which sensor types are supported?
It supports RTD sensors, thermocouples, millivolt inputs, and DC voltage inputs, providing flexibility for various temperature measurement applications.
Q4: What is the accuracy of the module?
The module offers measurement accuracy of approximately ±0.1% of reading, making it suitable for precision process control applications.
Q5: What are the power requirements?
The KJ3002X1-BF1 requires 12 V DC from the DeltaV LocalBus and draws approximately 160 mA during operation.
Q6: What are the dimensions and weight of the module?
Typical dimensions are approximately 46 × 102 × 109 mm, and the module weighs about 0.20 kg.
Q7: What environmental conditions can it operate in?
The module is designed for industrial environments with an operating temperature range of 0°C to +60°C and humidity levels from 5% to 95% non-condensing.
Q8: Which industries commonly use the KJ3002X1-BF1?
It is widely used in oil and gas, petrochemical, power generation, water treatment, and other process industries that require accurate temperature monitoring and control.
