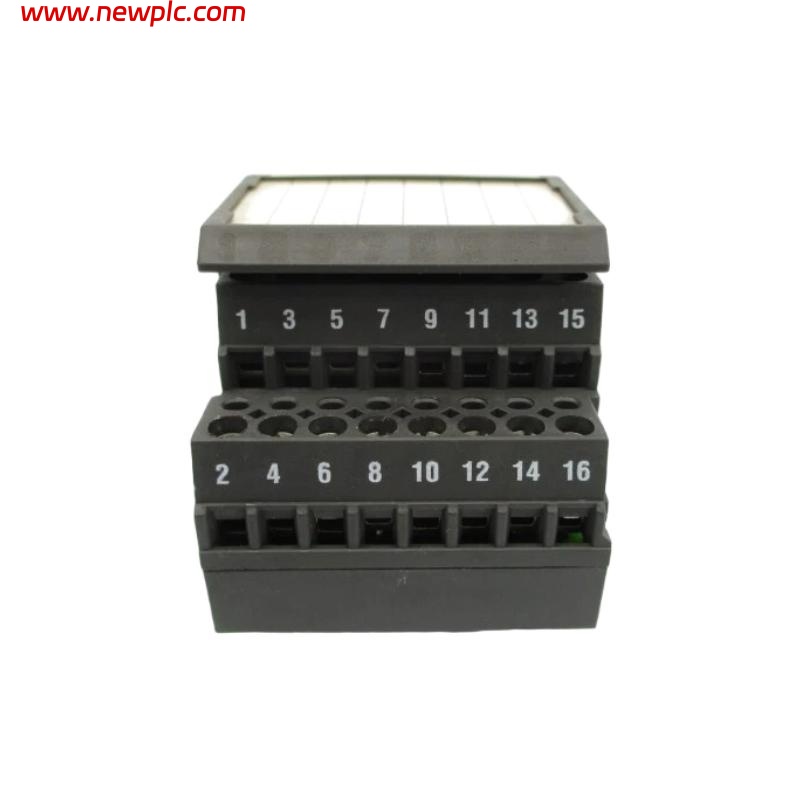

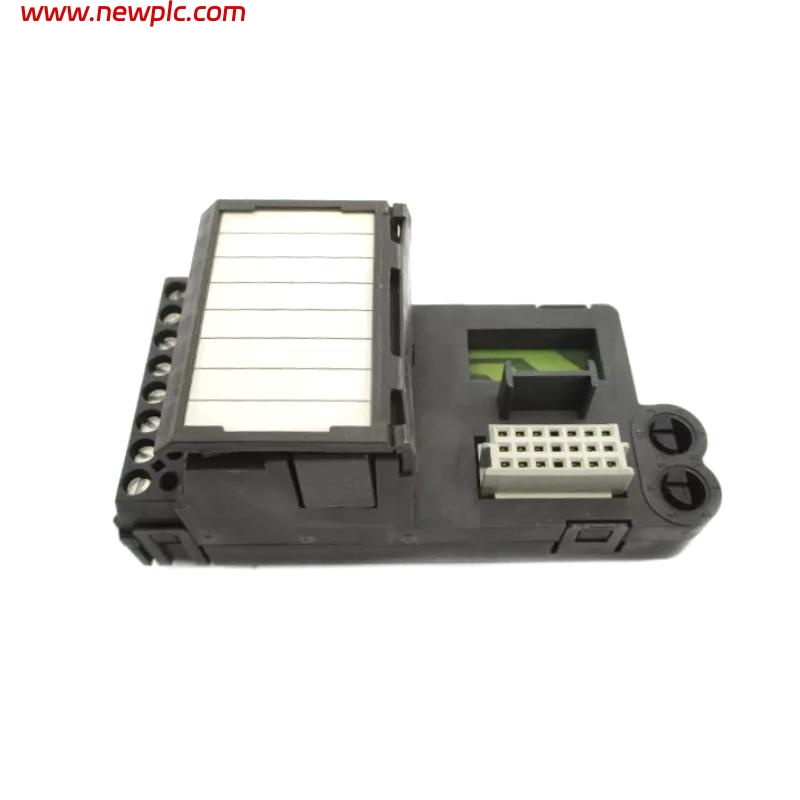

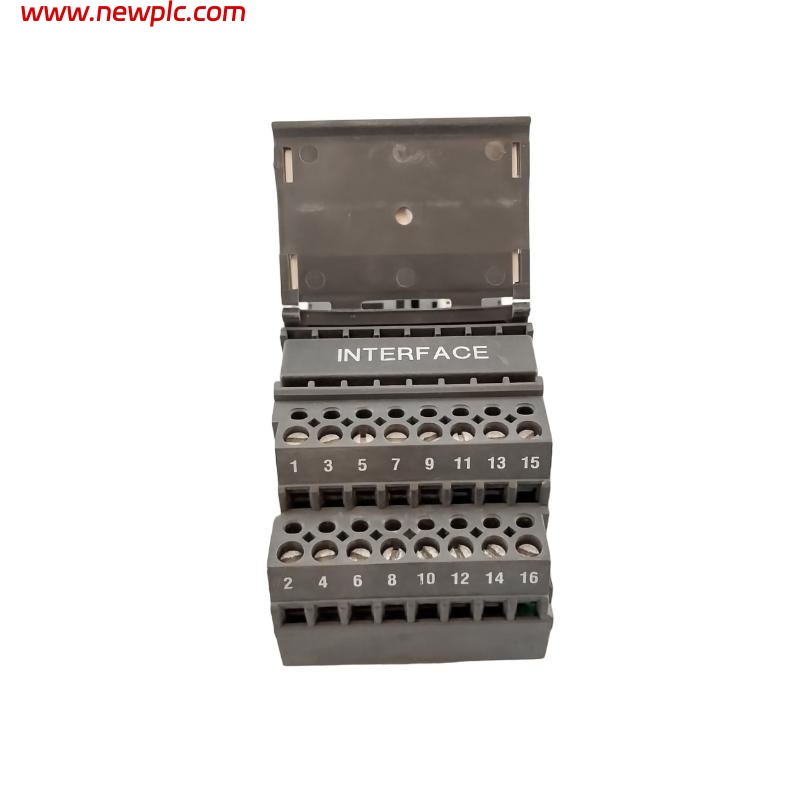

Emerson KJ3003X1-EA1 12P0921X022 Serial Interface Terminal Block

Frequently Asked Questions (FAQ)

Q1: What is the main function of the Emerson KJ3003X1-EA1 terminal block?
It serves as a serial communication interface between DeltaV controllers and external devices, facilitating data exchange through RS-232, RS-485, or RS-422 connections.

Q2: Which DeltaV systems is this module compatible with?
It is designed specifically for use with Emerson DeltaV distributed control systems.

Q3: How many communication channels are available?
The terminal block provides two independent serial communication channels.

Q4: What communication protocols does it support?
It supports RS-232, RS-485, and RS-422 protocols, allowing connection to a wide range of devices.

Q5: What is the maximum baud rate supported?
The module supports data transmission rates of up to 115.2 kbps.

Q6: Does it offer electrical isolation?
Yes, the terminal block provides 250 V AC isolation between channels and the system for enhanced safety.

Q7: What are the power requirements?
It operates on 24 V DC nominal voltage and consumes approximately 1.5 W of power.

Q8: Where is this terminal block typically installed?
It is mounted on a DIN rail or baseplate within a DeltaV control cabinet.

12P0921X022 Emerson KJ3003X1-EA1 Serial Interface Terminal Block
