Technical Specifications
| Item | Specification |
|---|---|

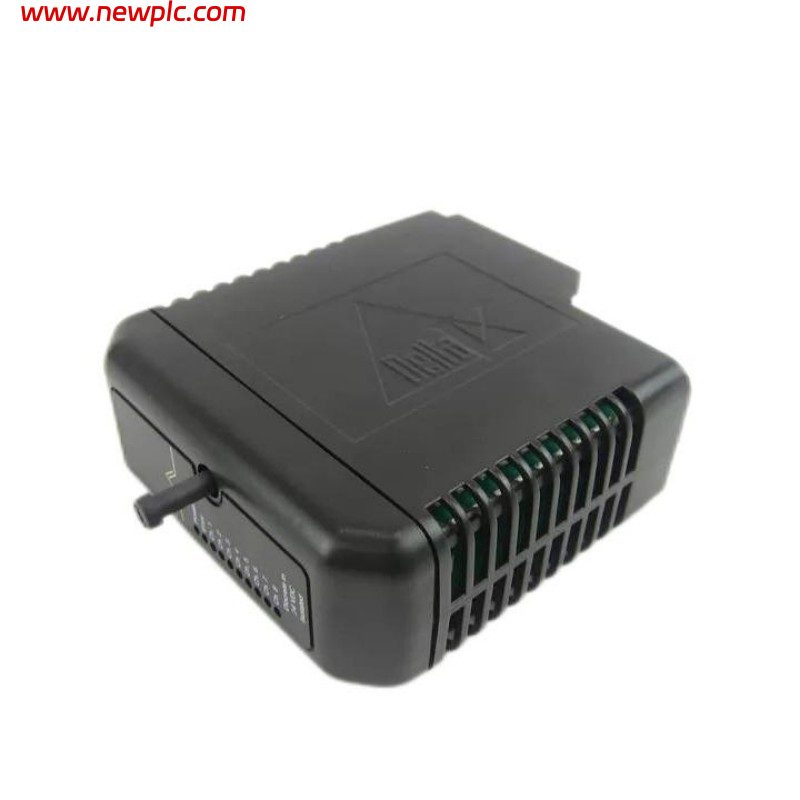

| Product Name | Emerson KJ3006X1-BA1 |
| Product Type | Multifunction I/O Module |
| Product Series | DeltaV™ S-Series |
| Manufacturer | Emerson |
| System Platform | DeltaV Distributed Control System (DCS) |
| Function | Flexible multi-signal I/O processing module |
| Supported Signal Types | Digital I/O, analog signals, and configurable I/O (system dependent) |
| Channel Capacity | Up to 8–16 channels (configuration dependent) |
| Communication | DeltaV LocalBus |
| Power Supply | 12 V DC (via DeltaV system backplane) |
| Current Consumption | ~250–400 mA (typical, depends on configuration) |
| Power Dissipation | ~3–5 W |
| Signal Isolation | Channel-to-channel isolation supported |
| Diagnostics | Built-in module and channel diagnostics |
| Redundancy Support | Supported within DeltaV architecture |
| Hot Swap Support | Yes (DeltaV system dependent) |
| Mounting Type | DeltaV I/O Carrier / Baseplate mounted |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| EMC Compliance | IEC 61326 / IEC 61000 series |
| Vibration Resistance | IEC 60068 industrial standard |
| Shock Resistance | 10 g, 11 ms half-sine |
| Application | Process automation, oil & gas, chemical, power generation |
| Country of Origin | USA |
| Dimensions (W × H × D) | Approx. 46 × 102 × 109 mm |
| Weight | Approx. 0.20–0.30 kg |
FAQ
FAQ
Q1: What is the KJ3006X1-BA1 used for?
The KJ3006X1-BA1 is used in Emerson DeltaV systems to handle flexible and configurable I/O signals for industrial process control applications.
Q2: What type of signals can it process?
It supports multiple signal types depending on configuration, including digital I/O and analog signals within the DeltaV system architecture.
Q3: How many channels does it support?
The module typically supports 8 to 16 channels, depending on system configuration and I/O mapping.
Q4: Is the module part of the DeltaV S-Series?
Yes. It belongs to the DeltaV S-Series I/O family and works within the DeltaV distributed control system.
Q5: Does it support redundancy?
Yes. Redundancy is supported when used within a properly configured DeltaV system architecture.
Q6: What are the operating conditions?
It operates from 0°C to +60°C with industrial-grade humidity and EMC tolerance suitable for process environments.
Q7: What are the dimensions and weight?
The module measures approximately 46 × 102 × 109 mm and weighs around 0.20–0.30 kg.
Q8: Where is it commonly used?
It is widely used in oil & gas, petrochemical, power generation, and general process automation systems where flexible I/O handling is required.
