Technical Specifications
| Item | Specification |
|---|---|

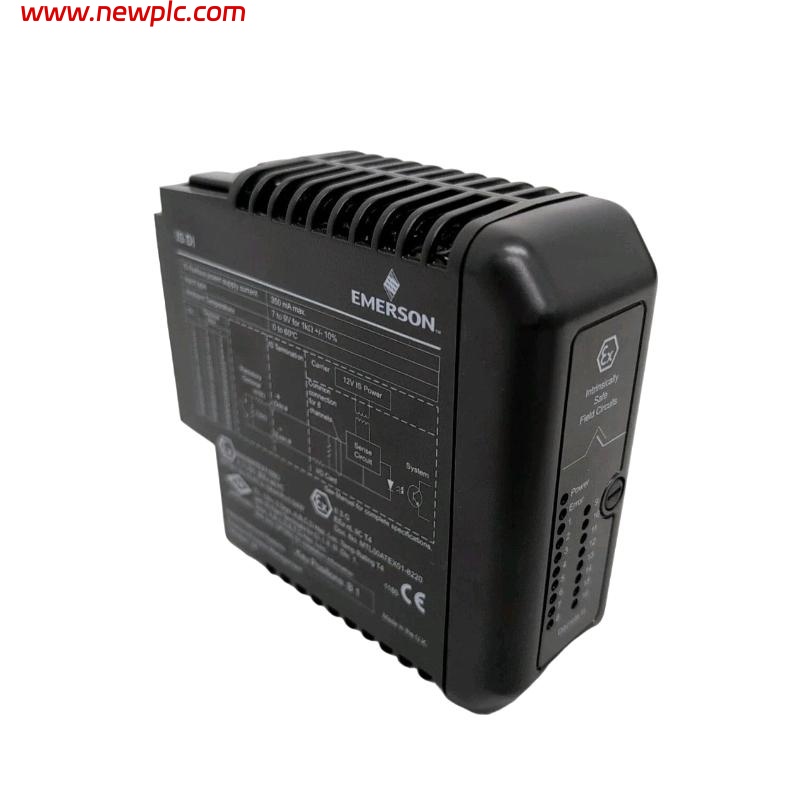

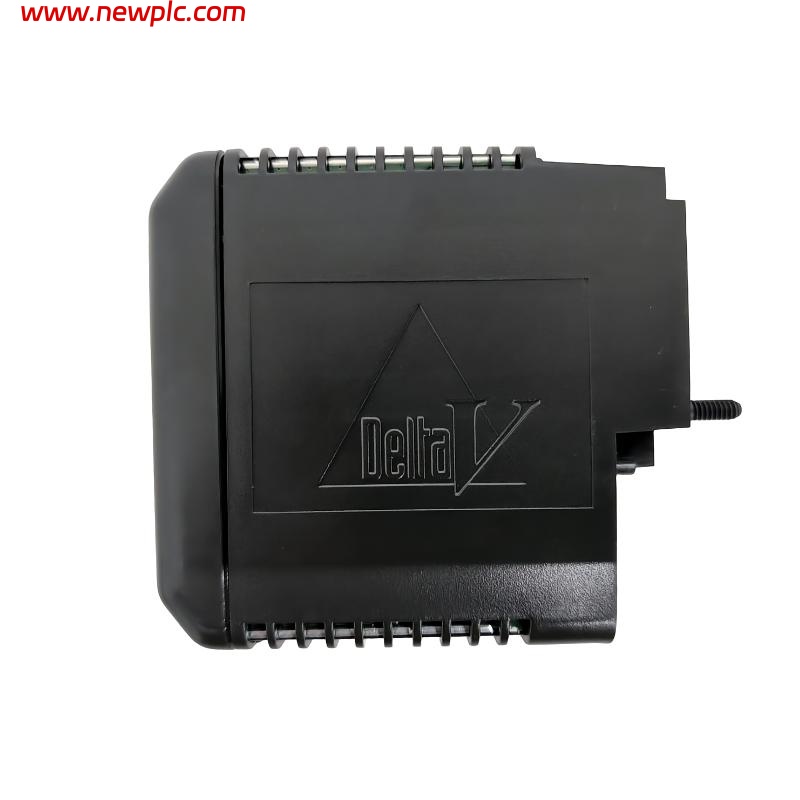

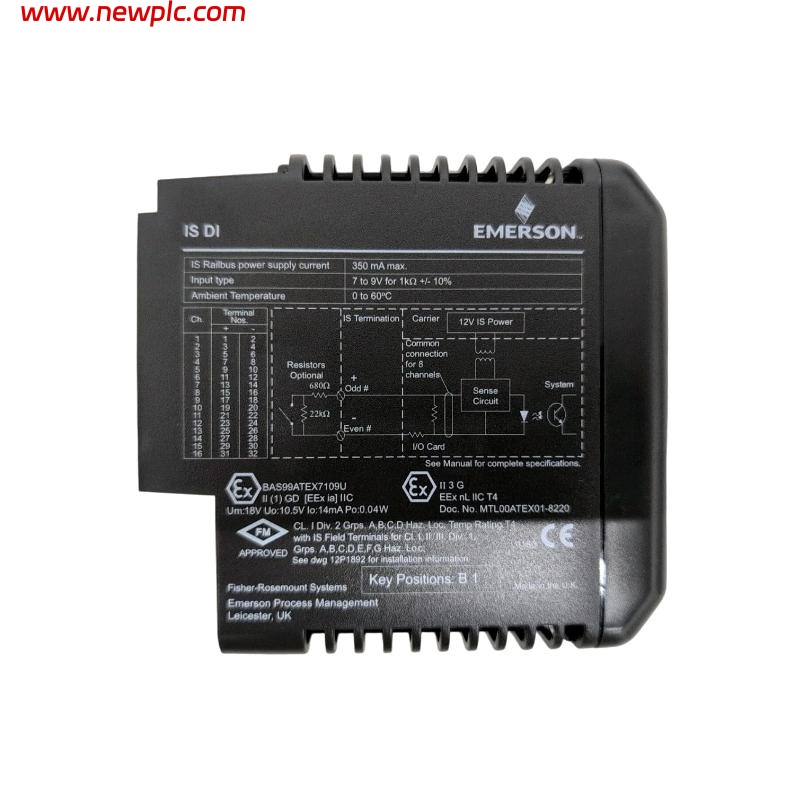

| Model | Emerson KJ3101X1-BB1 12P1866X042 |
| Product Type | IS (Intrinsically Safe) Digital Input Module |
| Module Type | 12-point discrete input |
| Input Voltage | 24 V DC (typical) |
| Input Current | 4–20 mA per channel (typical) |
| Isolation | Intrinsically Safe (IS) circuits |
| Response Time | ≤ 10 ms |
| Module Slot | Emerson DeltaV rack compatible |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 200 x 130 x 45 mm |
| Weight | 0.7 kg |
| LED Indicators | Individual channel status indicators |
| Mounting | DIN rail / rack mounting |
| Certifications | ISA, FM, ATEX, IECEx |
FAQ
FAQ
Q1: What is the main function of the KJ3101X1-BB1 module?
A1: It is a 12-point digital input module used for safely reading field signals from intrinsically safe devices.
Q2: What type of input signals does it accept?
A2: Accepts 24 V DC digital input signals, typically from intrinsically safe sensors.
Q3: Can it be used in hazardous areas?
A3: Yes, it is certified for intrinsically safe operation in hazardous areas.
Q4: What is the response time for inputs?
A4: The module has a response time of ≤ 10 ms.
Q5: How is the module installed?
A5: It can be mounted in a DeltaV rack or on a DIN rail.
Q6: What is the operating temperature range?
A6: 0°C to 60°C for normal operation.
Q7: What are the dimensions and weight?
A7: Dimensions are 200 x 130 x 45 mm, and weight is approximately 0.7 kg.
Q8: Does the module provide any status indication?
A8: Yes, each channel has an LED indicator to display input status.
