Technical Specifications
| Parameter | Description |
|---|---|

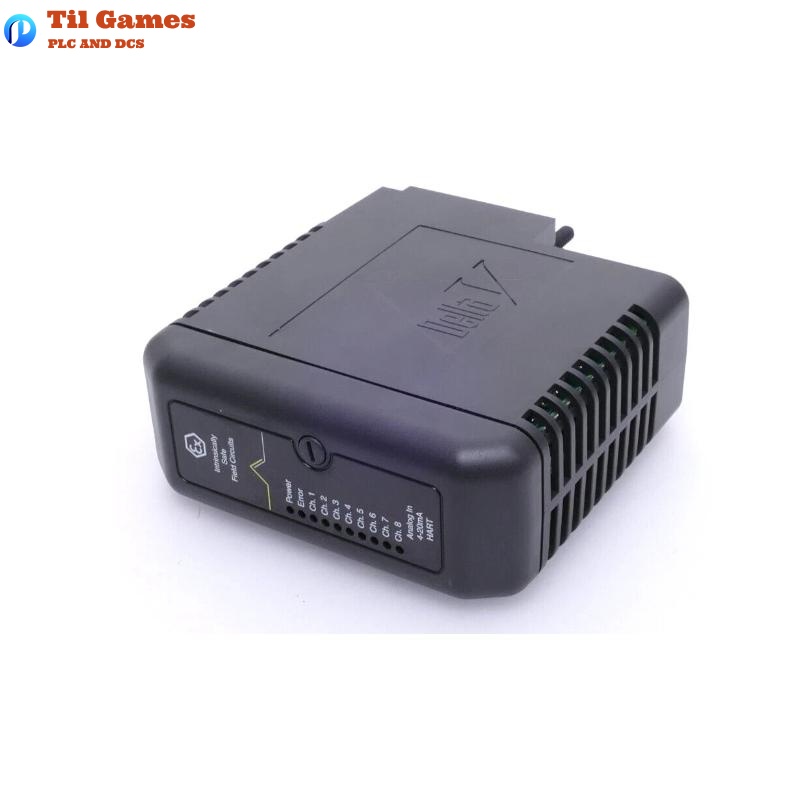

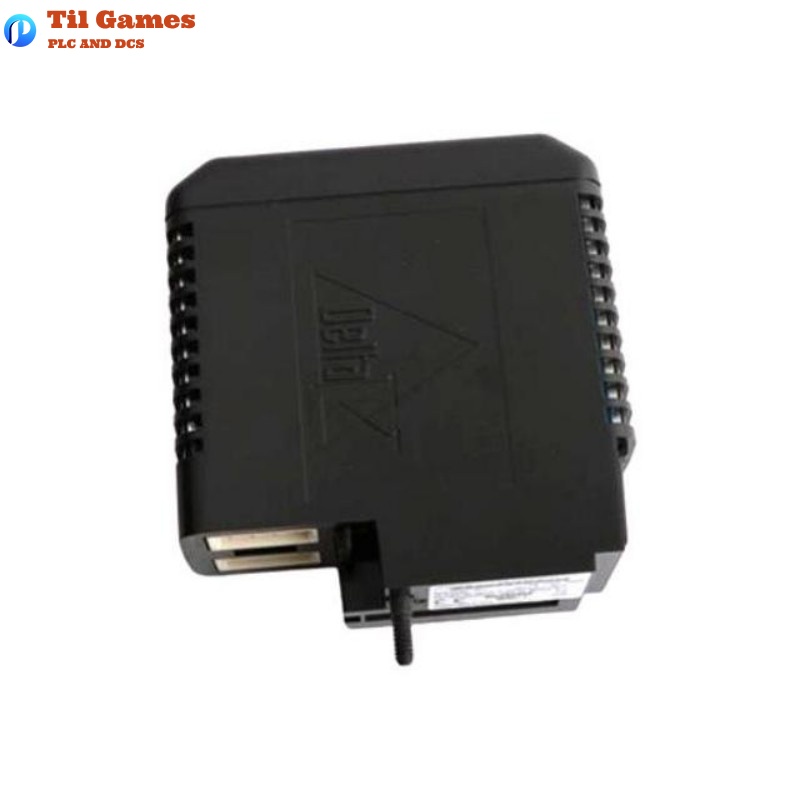

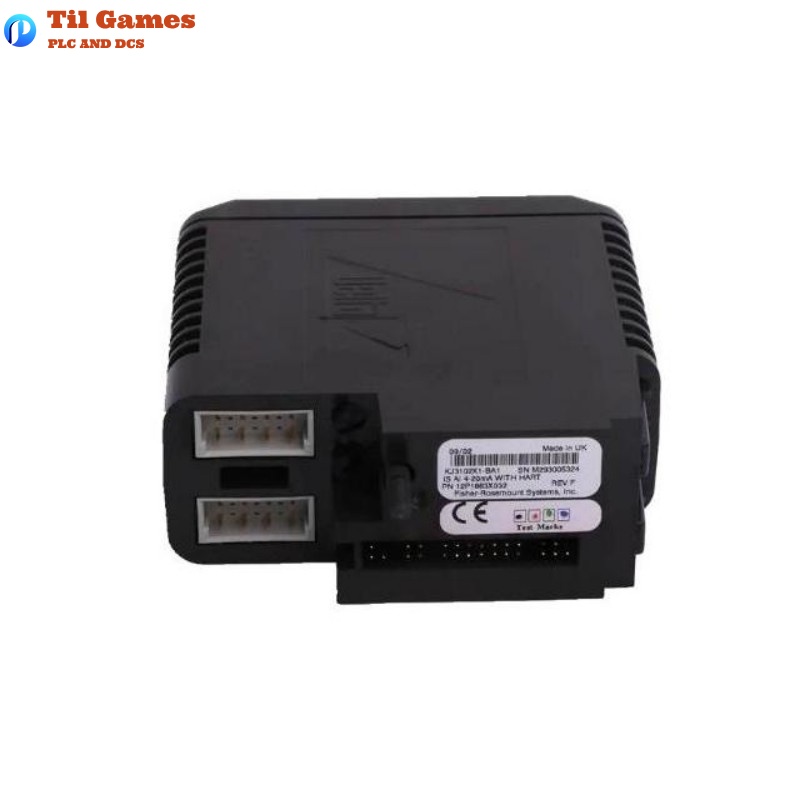

| Model Number | KJ3102X1-BA1 |
| Product Family | DeltaV |
| Module Type | Analog Input Module |
| Number of Channels | 16 channels |
| Input Type | Analog current input (4–20 mA) |
| Accuracy | ±0.1% of full scale |
| Resolution | 16-bit |
| Input Impedance | >250 ohms |
| Isolation | Channel-to-channel and system-isolated |
| Channel Update Rate | <250 ms per channel |
| Operating Voltage Range | 18–32 VDC |
| Power Consumption | Max 3 W |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting | DIN rail mounting |
| Dimensions (LxWxH) | 107 x 41 x 105 mm |
| Weight | 0.7 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input signal does the KJ3102X1-BA1 support?
A1: It supports analog current input in the range of 4–20 mA.
Q2: How many input channels does the module support?
A2: It supports up to 16 independent analog input channels.
Q3: Is there isolation between the input channels?
A3: Yes, each channel is isolated from others and from the system.
Q4: What is the resolution of the module?
A4: The module provides 16-bit resolution.
Q5: What are the power requirements of this module?
A5: Operating voltage is 18–32 VDC with a maximum power consumption of 3 W.
Q6: Can this module operate under extreme temperatures?
A6: Yes, it operates reliably within -40°C to +70°C.
Q7: What is the mounting method for this module?
A7: It is designed for DIN rail mounting.
Q8: What are the module’s dimensions and weight?
A8: The module measures 107 x 41 x 105 mm and weighs 0.7 kg.
