Technical Specifications
| Parameter | Description |
|---|---|
| Model | KJ3201X1-BA1 |

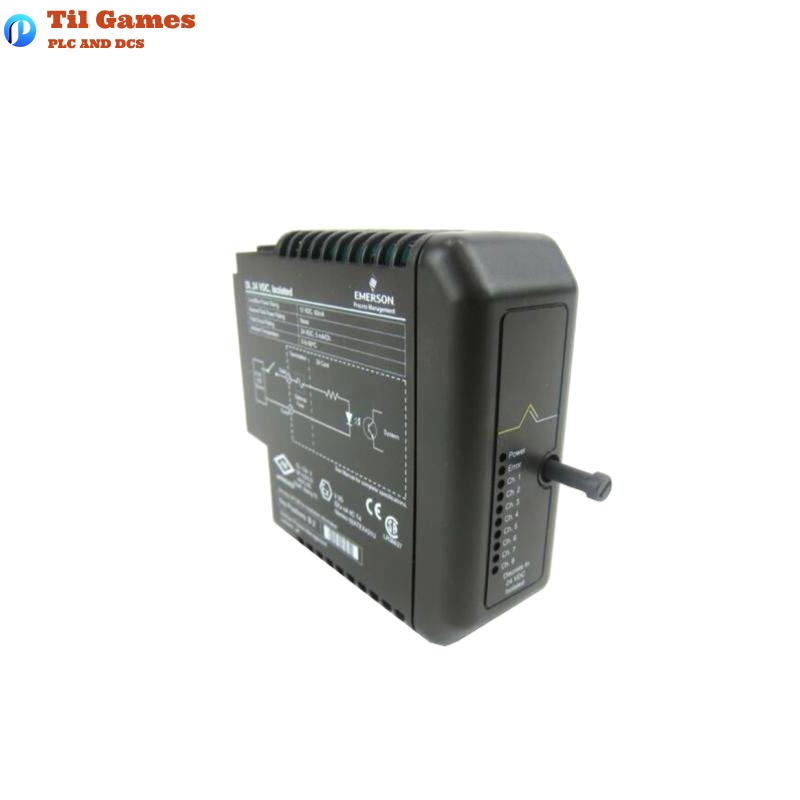

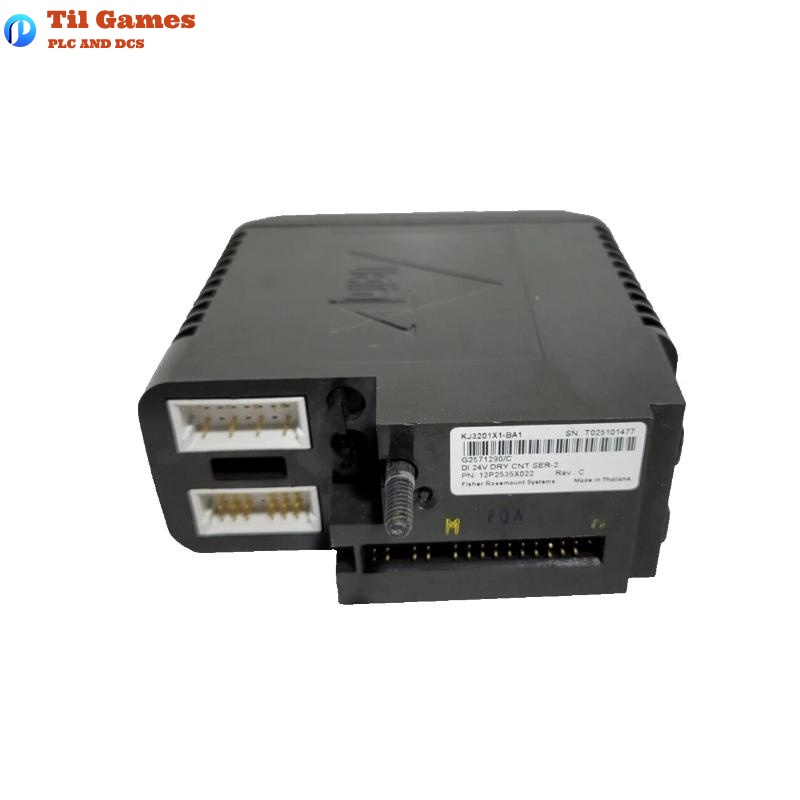

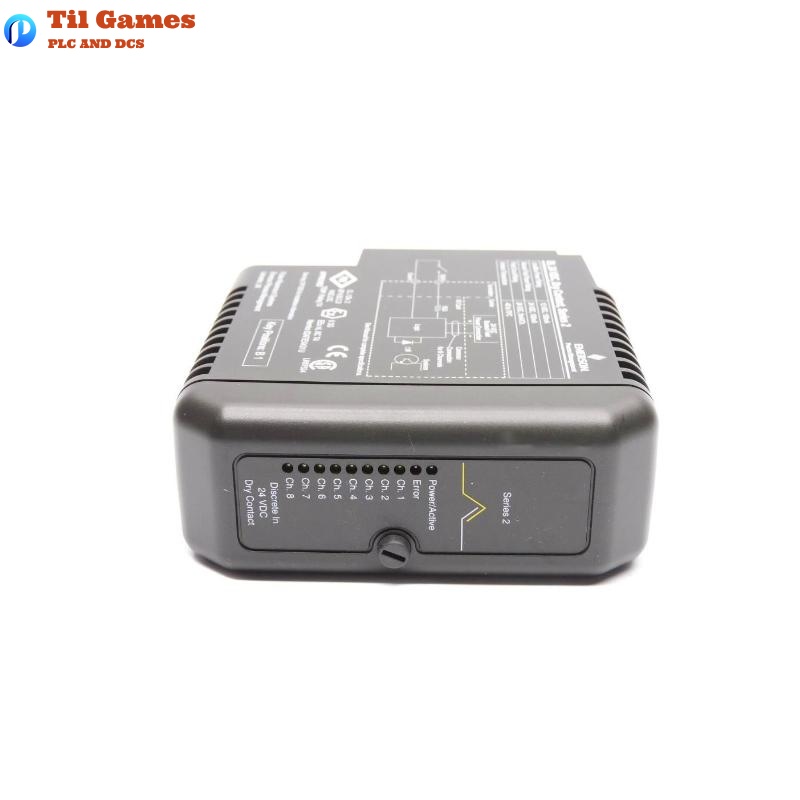

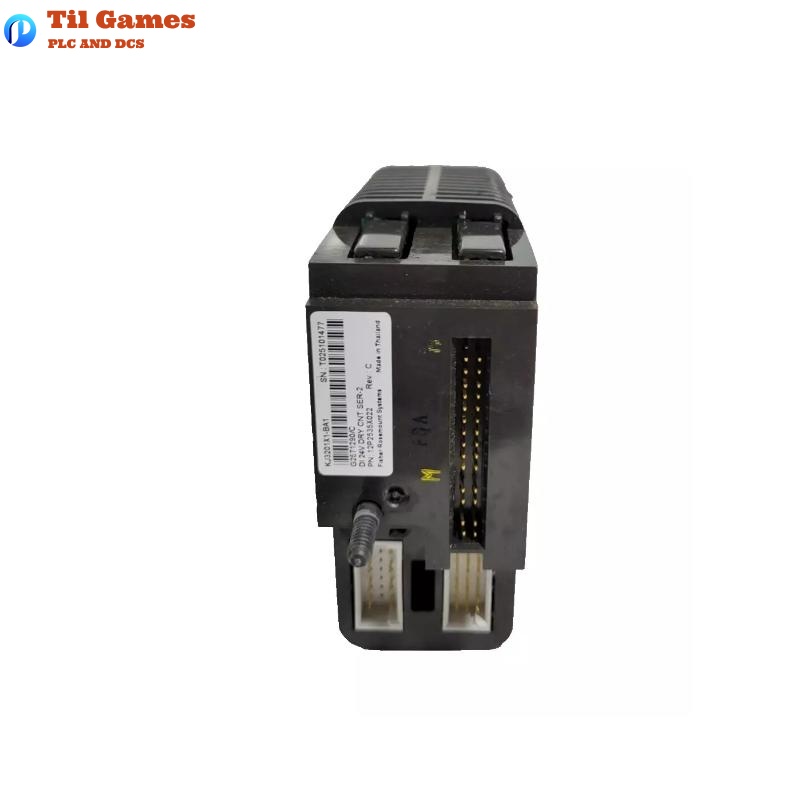

| Type | Digital Input Card, Dry Contact (Series 2) |
| Local Bus Power | 12 VDC @ 150 mA |
| Bussed Field Power | 24 VDC @ 100 mA |
| Field Circuit Power | 24 VDC @ 5 mA/channel |
| Operating Temperature | -40°C to +70°C |
| Shock | 10 g half-sine wave, 11 ms duration |
| Vibration | 2–13.2 Hz: 1 mm peak-to-peak 13.2–150 Hz: 0.7 g |
| Humidity Range | 5% to 95% Non-Condensing |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Terminal Block Keying | B1 |
| Dimensions | 100 x 150 x 50 mm |
| Weight | 0.25 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What voltage input does this module support?
A1: It supports 24 VDC dry contact inputs with a per-channel current of up to 5 mA.
Q2: Can this module be hot-swapped?
A2: No, this module must not be inserted or removed while power is applied to the system.
Q3: Is the module certified for hazardous area use?
A3: Yes, it has ATEX and IECEx certifications and is suitable for Zone 2 applications.
Q4: Does the module require calibration?
A4: No calibration is required. The unit is factory-calibrated.
Q5: Can internal parts be replaced by users?
A5: No, the module contains no user-serviceable components and should not be disassembled.
Q6: What type of field wiring is supported?
A6: It supports standard dry contact inputs without applied voltage.
Q7: Is this module suitable for harsh environments?
A7: Yes, it is rated for ISA G3 airborne contaminants, making it robust for industrial use.
Q8: Is terminal block keying required before use?
A8: Yes, rotary keying ensures proper alignment and compatibility; keying position is B1.
