Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | KJ3208X1-BK1 |

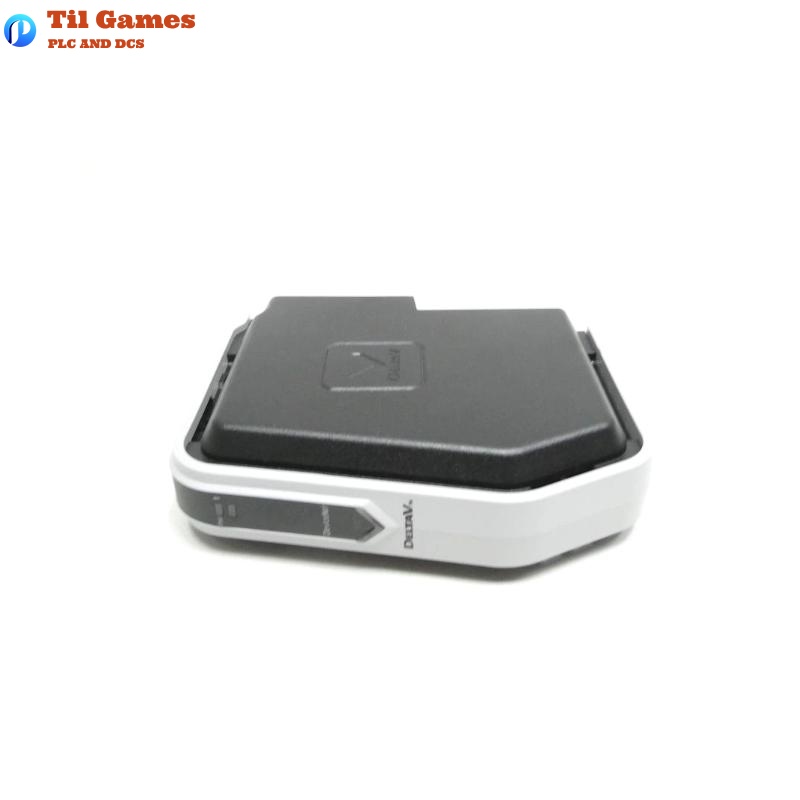

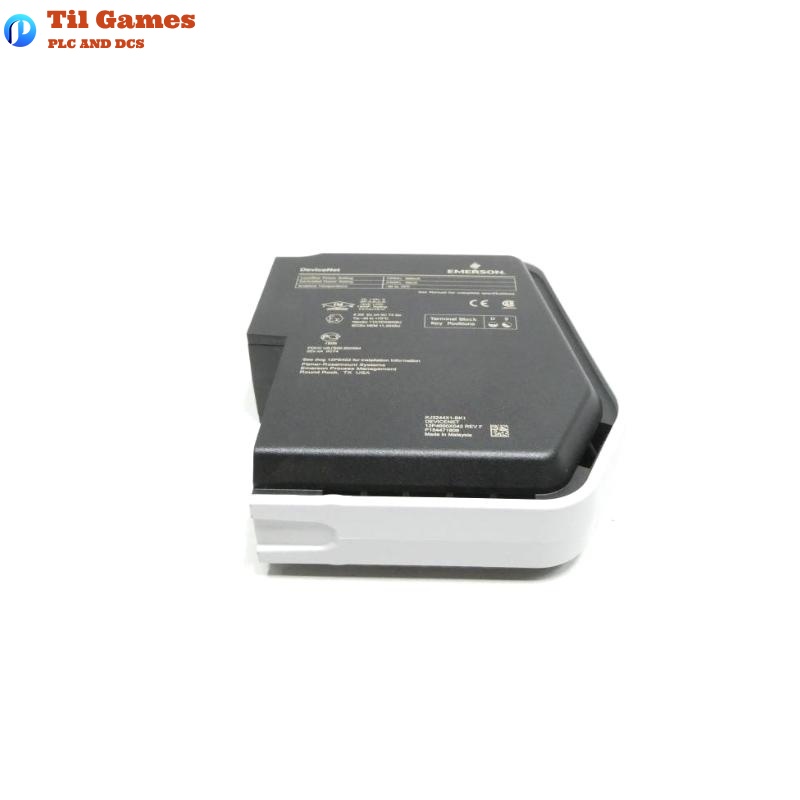

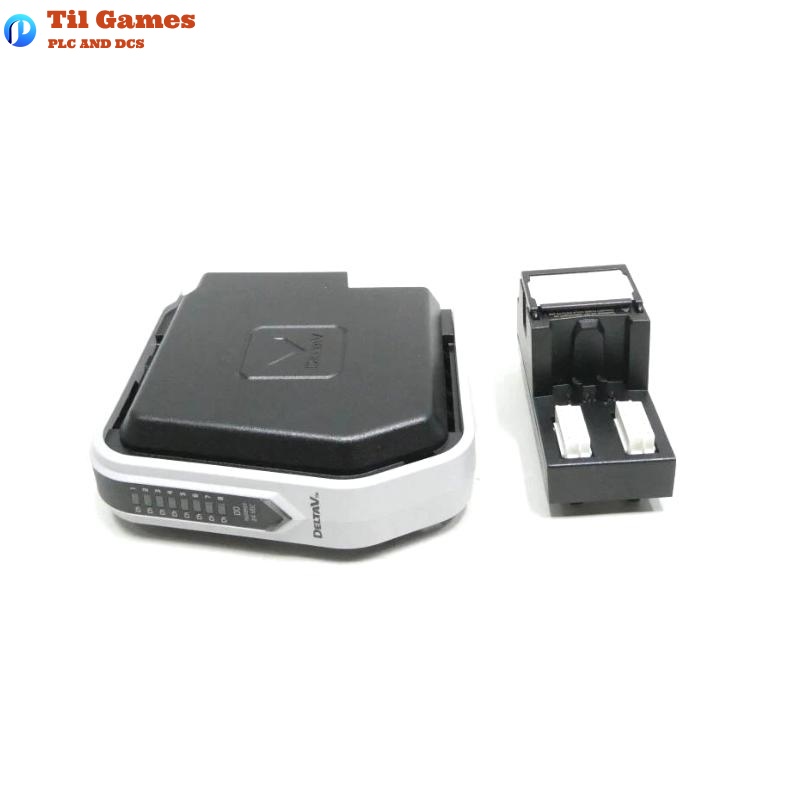

| Product Type | S-Series Isolated Digital Output Card |
| Channels | 8-channel 24 VDC digital outputs |
| LocalBus Power | 12 VDC @ 150 mA |
| Field Circuit Power | 60 VDC, 1.0 A per channel |
| Operating Temperature | -40 to +70°C |
| Vibration | 1mm Peak to Peak (5-16Hz); 0.5g (16-150Hz) |
| Shock | 10g, ½ Sinewave for 11 ms |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Relative Humidity | 5% to 95% non-condensing |
| IP Rating | IP20 |
| Terminal Block Key Position | B5 |
| Dimensions (W x H x D) | 216 x 216 x 64 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the KJ3208X1-BK1 card?
A1: It provides 8 isolated digital output channels operating at 24 VDC, used in industrial control systems for output signal transmission.
Q2: Can the module be hot-swapped during system operation?
A2: Yes, but only one unit at a time and under strict power and field circuit de-energization conditions as specified.
Q3: Is this card suitable for use in hazardous areas?
A3: Yes, it is ATEX-certified for Zone 2 hazardous locations with markings Ex nA IIC T4 Gc.
Q4: Does the module require periodic calibration?
A4: No, calibration is not required for this unit.
Q5: What kind of field wiring inductance is acceptable for hot-swapping?
A5: Inductance must be less than 23 μH including wire inductance.
Q6: What protection class does the card meet for airborne contaminants?
A6: It meets ISA-S71.04-1985 Class G3 for harsh industrial environments.
Q7: Is the terminal block fuse removable under energized conditions?
A7: No, it must not be removed when field power is energized for non-sparking circuits.
Q8: What is the ingress protection rating of the module?
A8: The module has an IP20 rating.
