Technical Specifications
| Item | Specification |
|---|---|

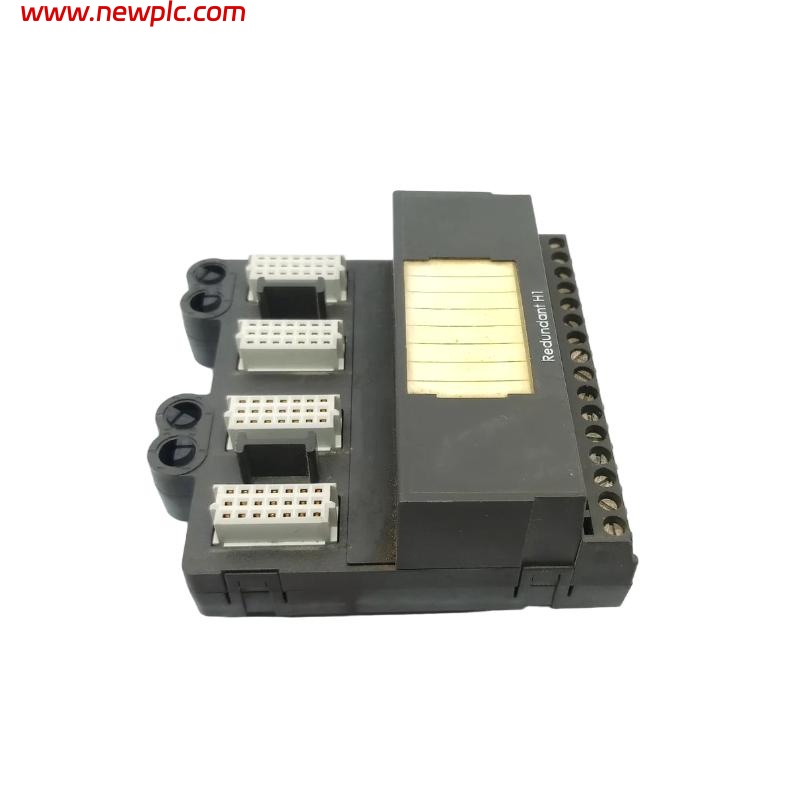

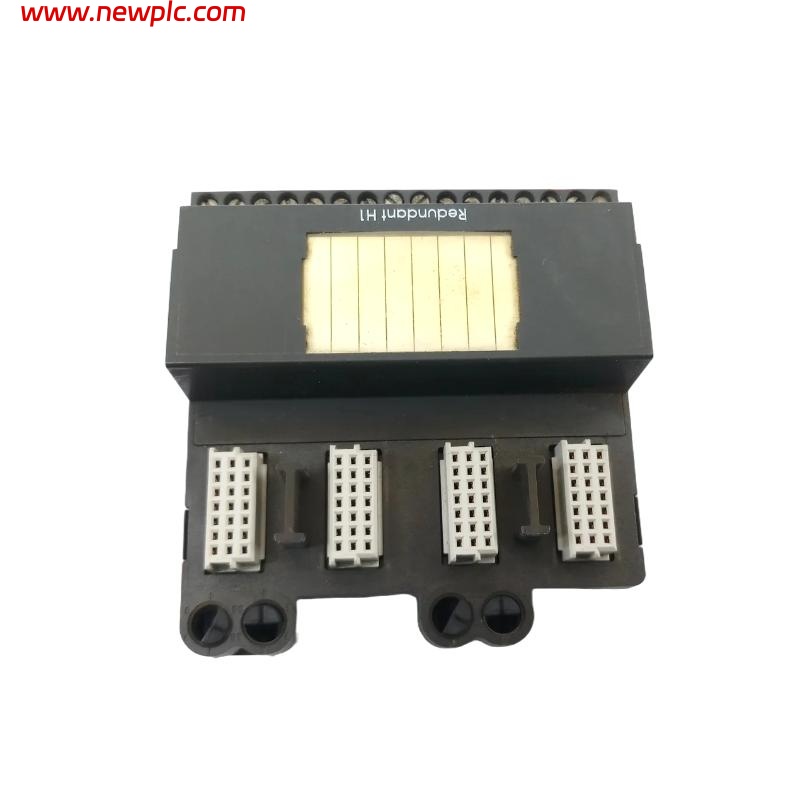

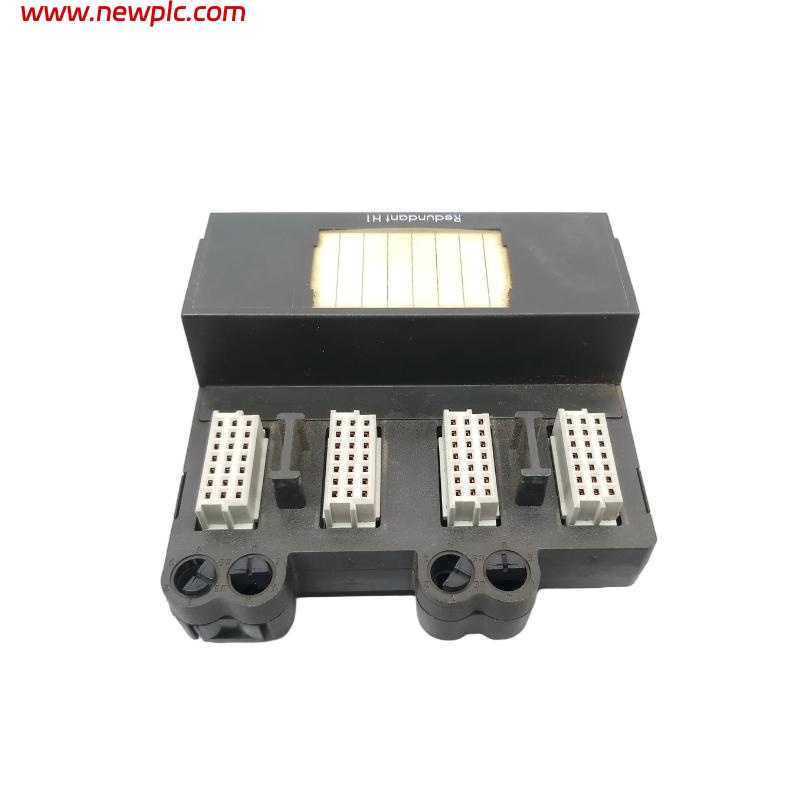

| Model | Emerson KJ3242X1-FA1 |
| Product Type | Terminal Blocks |
| Number of Positions | 16 positions |
| Voltage Rating | 300 V DC/AC |
| Current Rating | 10 A |
| Connection Type | Screw terminal |
| Wire Size | 24–12 AWG (0.2–4 mm²) |
| Mounting Type | DIN rail or panel mount |
| Insulation Material | Polyamide (PA) |
| Operating Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Dimensions | 100 × 120 × 45 mm |
| Weight | 0.25 kg |
FAQ
FAQ
Q1: What is the purpose of the KJ3242X1-FA1 terminal blocks?
A1: They provide secure electrical connections for field wiring in Emerson control systems.
Q2: How many positions are available?
A2: 16 positions per block.
Q3: What types of wires can be connected?
A3: Wires ranging from 24 to 12 AWG (0.2–4 mm²).
Q4: What is the maximum voltage and current rating?
A4: 300 V DC/AC and 10 A.
Q5: What connection method is used?
A5: Screw terminals for reliable clamping of wires.
Q6: Can it be mounted on a DIN rail?
A6: Yes, it can also be panel mounted.
Q7: What is the operating temperature range?
A7: -40°C to +85°C.
Q8: What is the protection class?
A8: IP20, providing basic protection against solid objects.
