Technical Specifications
| Item | Specification |
|---|---|

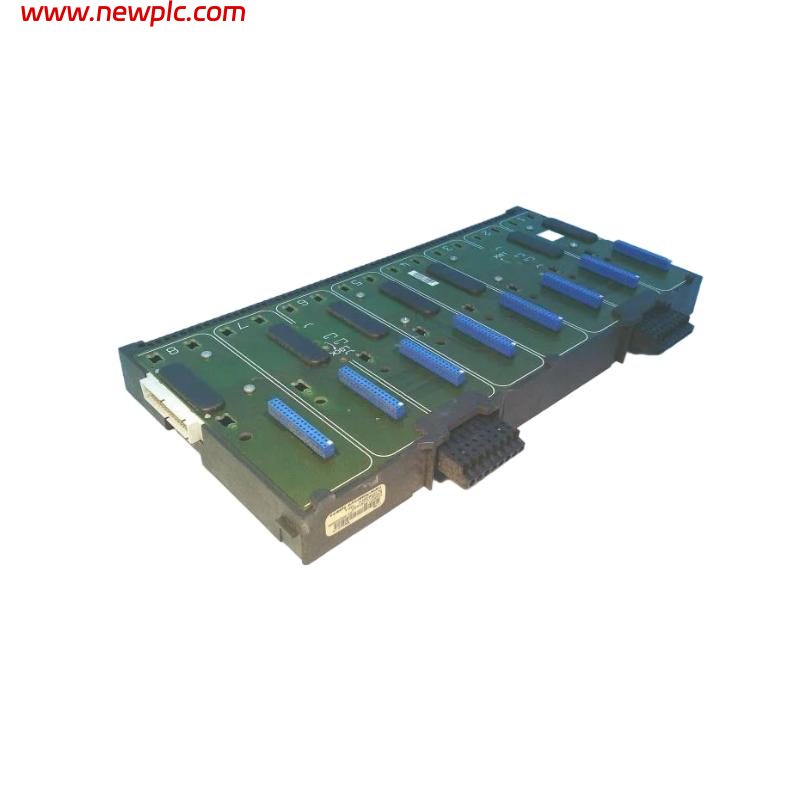

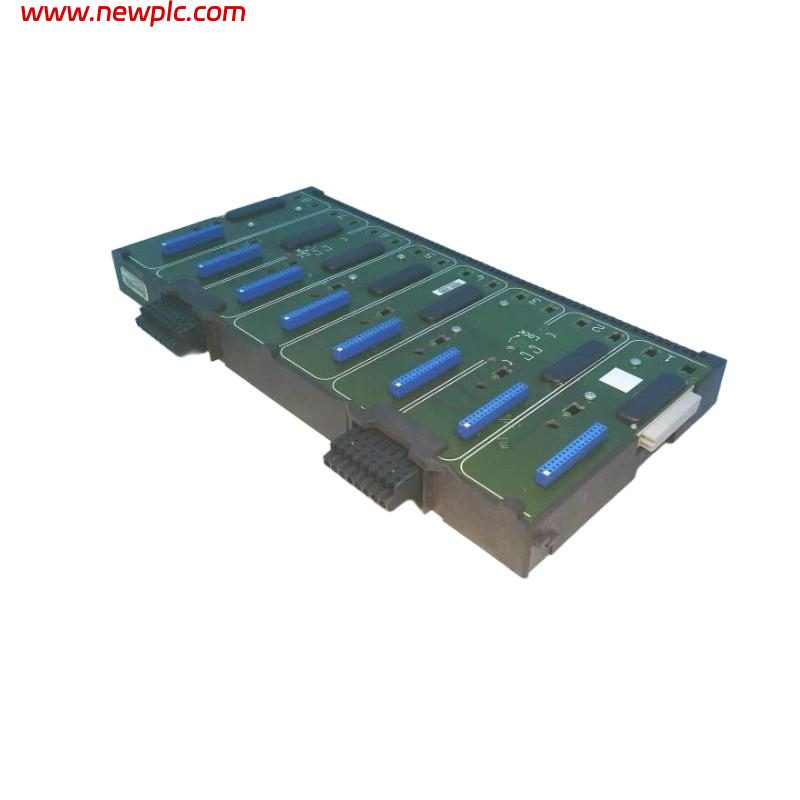

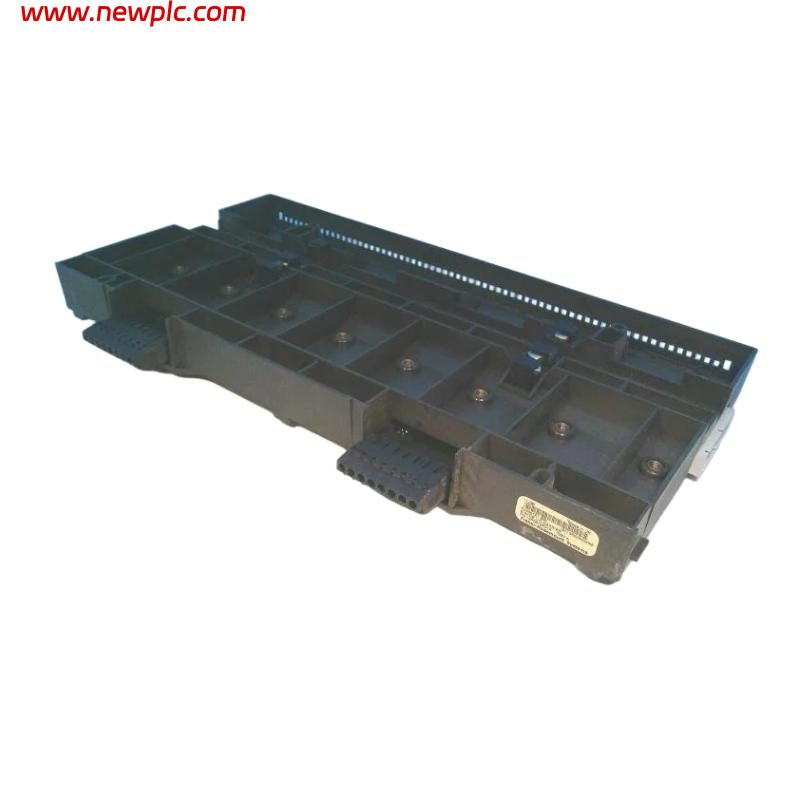

| Product Name | Emerson KJ4001X1-BB1 |
| Product Type | I/O Interface Carrier / Redundant Power & Interface Baseplate |
| Product Series | DeltaV™ S-Series |
| Manufacturer | Emerson |
| System Platform | DeltaV Distributed Control System (DCS) |
| Function | Provides mounting, power distribution, and signal interface for I/O modules |
| Carrier Width | 8-wide I/O carrier |
| LocalBus Rating | 12.6 V DC @ 8 A |
| Field Circuit Rating | 30 V DC @ 6.5 A |
| Power Function | Supports redundant power distribution architecture |
| Signal Role | Passive interface (no signal processing) |
| Redundancy Support | Yes (system-level redundancy supported) |
| Communication | DeltaV system backplane / LocalBus |
| Power Supply | Supplied via DeltaV system power modules |
| Power Consumption | 0 W (passive component) |
| Diagnostics | No direct diagnostics (handled by I/O modules) |
| Hot Swap Support | Supported in DeltaV system configurations |
| Mounting Type | Panel / DeltaV rack baseplate mounted |
| Protection Rating | IP20 / NEMA 12 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Vibration Resistance | IEC 60068 industrial standard |
| Shock Resistance | 10 g, 11 ms half-sine |
| EMC Compliance | IEC 61000 / IEC 61326 |
| Application | DeltaV I/O system housing and field wiring integration |
| Country of Origin | USA / Thailand (varies by batch) |
| Dimensions (W × H × D) | Approx. 41 × 107 × 105 mm |
| Weight | Approx. 0.23 kg |
FAQ
FAQ
Q1: What is the KJ4001X1-BB1 used for?
The KJ4001X1-BB1 is used as an I/O carrier in Emerson DeltaV systems to physically mount I/O modules and provide power and communication through the system backplane.
Q2: Does the KJ4001X1-BB1 process any signals?
No. It is a passive hardware platform. All signal processing is handled by the installed I/O modules.
Q3: What modules can be installed on it?
It supports DeltaV S-series I/O modules such as analog input/output, digital input/output, RTD, thermocouple, and other field interface cards.
Q4: Does it require a power supply?
It does not have its own active power supply, but it distributes system power provided by DeltaV power modules.
Q5: What is its role in the system architecture?
It serves as the structural and electrical backbone for I/O modules, enabling communication and field wiring integration within the DeltaV DCS.
Q6: What are the dimensions and weight?
It measures approximately 41 × 107 × 105 mm and weighs around 0.23 kg.
Q7: Can it be replaced while the system is running?
Yes, in supported DeltaV configurations it can be replaced as part of hot-swappable I/O assemblies.
Q8: Where is it commonly used?
It is widely used in oil & gas, chemical plants, refineries, power generation, and other continuous process industries using DeltaV systems.
