Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | KJ4001X1-NB1 |

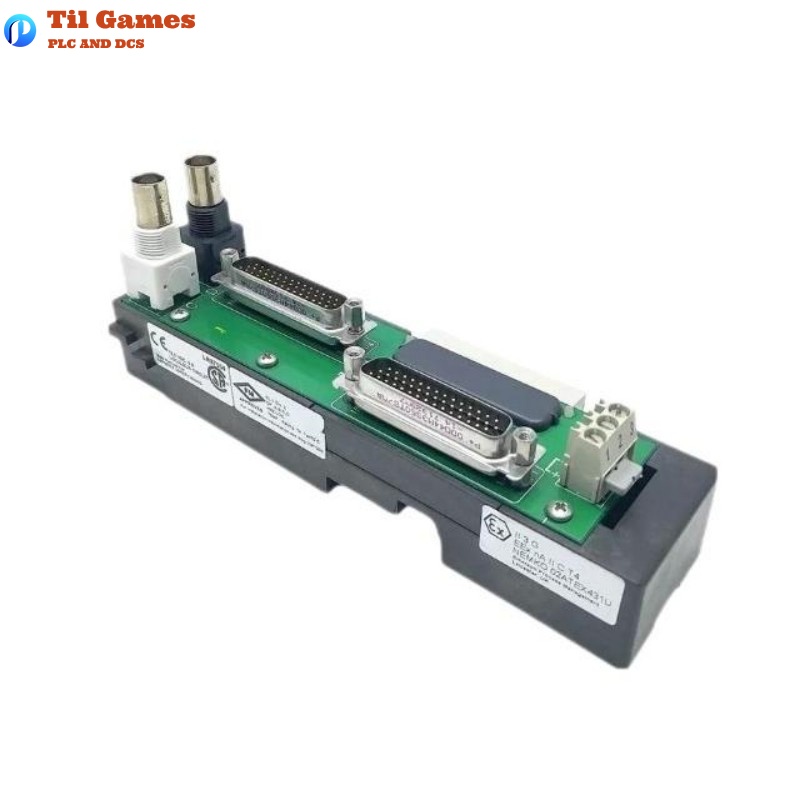

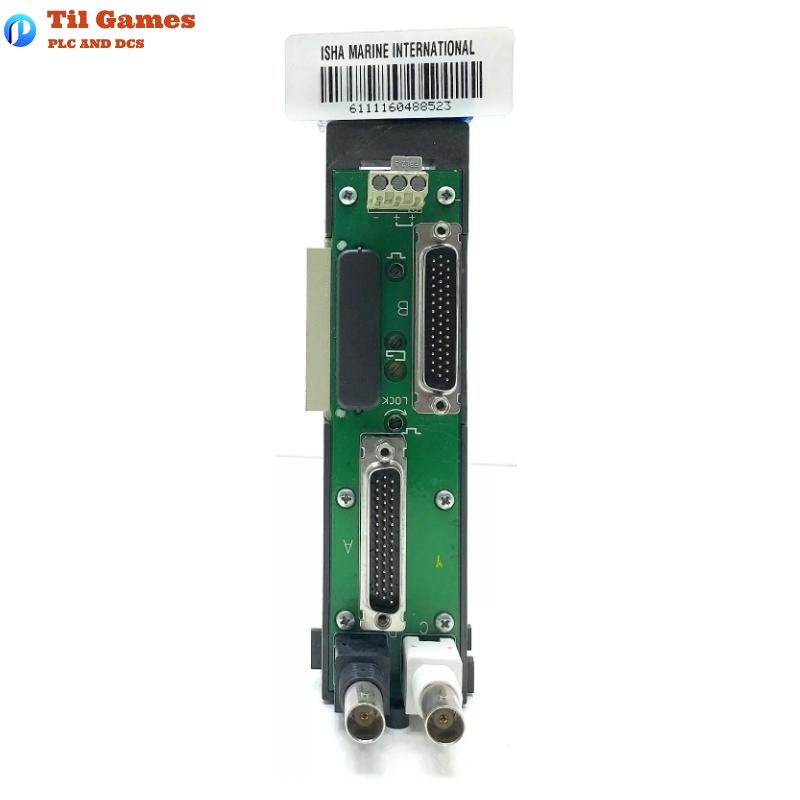

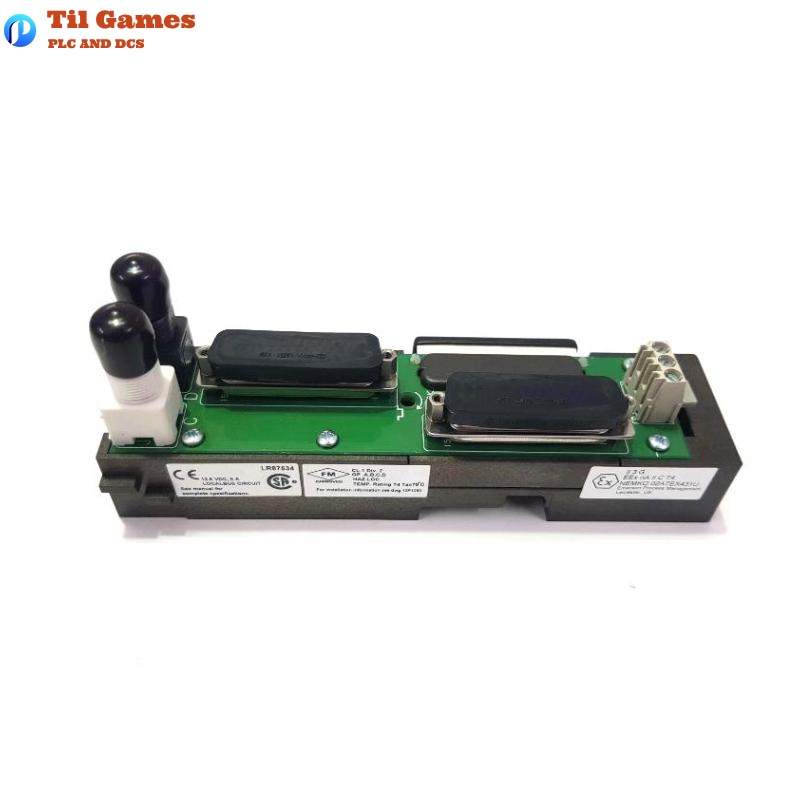

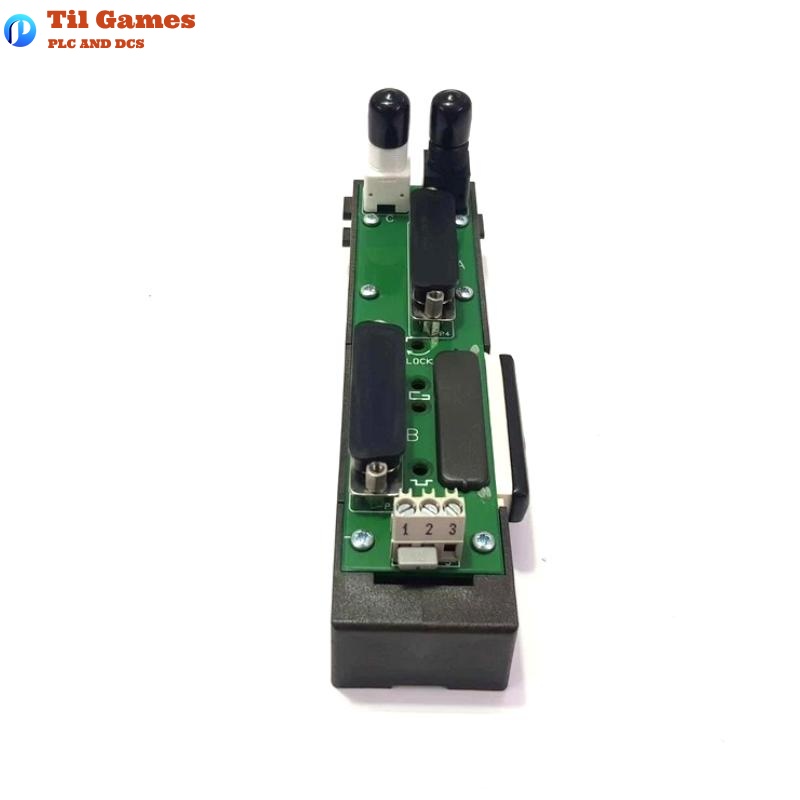

| Description | 1-Wide I/O Carrier Extender Left |
| Power Supply | Local Bus Power: 12 VDC at 8 A |
| Operating Temperature | -40°C to +70°C |
| Shock Resistance | 10g, ½ sinewave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Relative Humidity | 5% to 95%, non-condensing |
| Airborne Contaminants | ISA-S71.04–1985 Class G3 |
| Hazardous Area Certifications | ATEX, FM, UKEX, Zone 2, Class I Div. 2 |
| Maintenance | No user-serviceable parts; calibration not needed |
| Cable Limitation | Total carrier/extender length ≤ 6.5 meters |
| Installation Note | Power must be off for removal/insertion |
| Dimensions | 35 x 55 x 155 mm |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: Can this module be hot-swapped while the system is powered?
A1: No. Power must be turned off before removing or inserting this module to avoid damage or hazards.
Q2: In what hazardous environments is the module certified to operate?
A2: It is certified for Zone 2 and Class I Div. 2 areas under ATEX, FM, and UKEX standards.
Q3: What level of vibration can the module tolerate?
A3: The module withstands 0.7 g in the 13.2–150 Hz range and 1 mm peak-to-peak in the 2–13.2 Hz range.
Q4: Does the module require periodic calibration?
A4: No calibration is required throughout its operational life.
Q5: What is the maximum allowed length of combined I/O carriers and extenders?
A5: The total length must not exceed 6.5 meters.
Q6: Is the module suitable for high humidity environments?
A6: Yes, it operates reliably at 5% to 95% relative humidity, non-condensing.
Q7: What is the power requirement for this module?
A7: It requires 12 VDC and supports up to 8 A.
Q8: Are there any user-serviceable components inside the module?
A8: No. The module contains no user-serviceable parts and should be replaced if faulty.
