Technical Specifications
| Item | Specification |
|---|---|

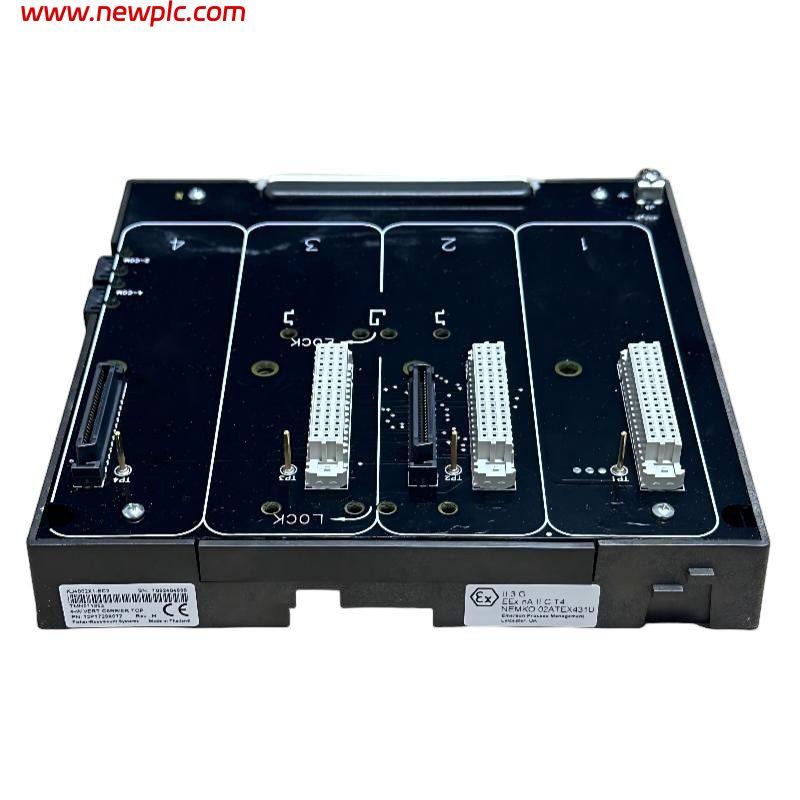

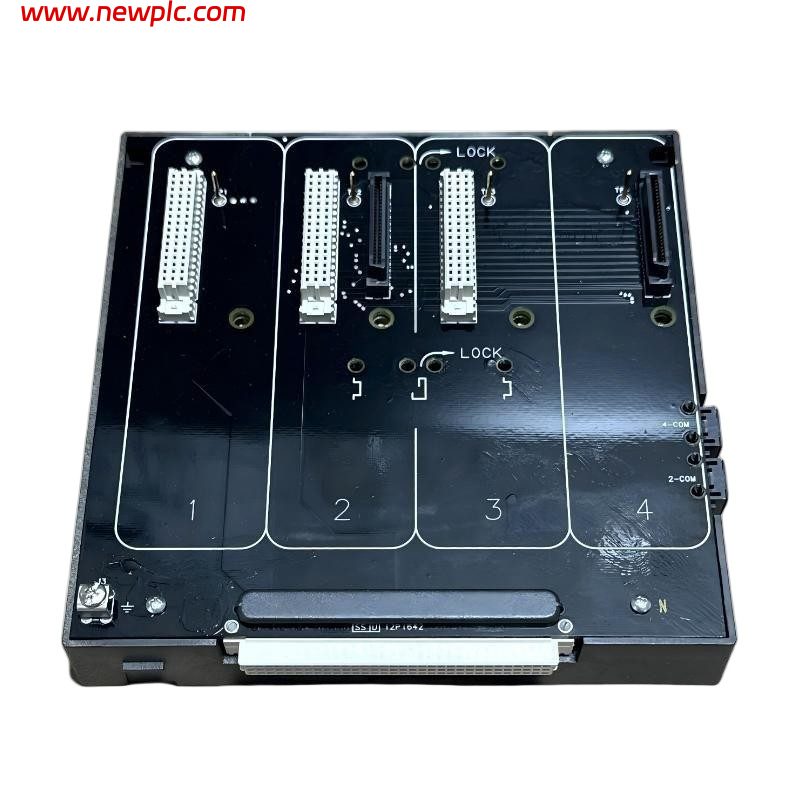

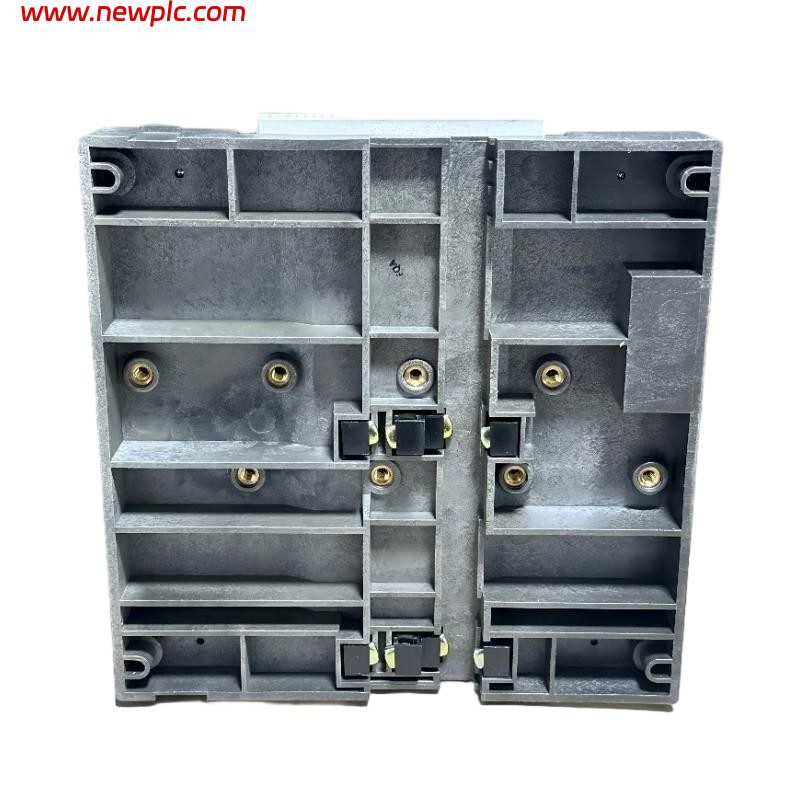

| Product Name | Emerson KJ4002X1-BC2 |
| Alternate Part Number | VE4055S2D0 / 12P1728X052 |
| Product Type | 4-Wide Vertical Carrier (Right-Hand) |
| Product Series | DeltaV™ M-Series |
| Manufacturer | Emerson |
| System Platform | DeltaV Distributed Control System (DCS) |
| Function | Provides mounting, power distribution, and LocalBus connectivity for DeltaV M-Series I/O modules |
| Carrier Configuration | 4-Wide Vertical Carrier, Right-Hand Orientation |
| LocalBus Circuit Power Rating | 12.6 V DC @ 8 A |
| Field Circuit Power Rating | 30 V DC @ 6.5 A |
| Communication | DeltaV LocalBus Backplane |
| Redundancy Support | Yes, system-dependent |
| Compatible Modules | DeltaV M-Series I/O Modules |
| Hot Swap Support | No, power must be removed before insertion or removal |
| Maximum LocalBus Extension Length | 6.5 m (combined carriers and extenders) |
| Protection Rating | IP20 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Vibration Resistance | IEC 60068 industrial standard |
| Shock Resistance | 10 g, 11 ms Half-Sine |
| Airborne Contaminants | ISA-S71.04 Class G3 |
| Mounting Type | Vertical Carrier Installation |
| Application | DeltaV I/O System Infrastructure for small footprint installations |
| Country of Origin | USA / Thailand (varies by production batch) |
| Dimensions (W × H × D) | Approx. 241 × 229 × 102 mm |
| Weight | Approx. 0.08 kg (0.18 lb) module weight; shipping weight may vary up to 0.9 kg depending on packaging |
| Status | Active / Available |
FAQ
FAQ
Q1: What is the KJ4002X1-BC2 used for?
It is a 4-wide vertical carrier used in Emerson DeltaV systems to mount M-Series I/O modules and provide LocalBus communication and power distribution within the control system.
Q2: Is the KJ4002X1-BC2 an active control module?
No. It is an infrastructure component serving as a carrier and backplane for DeltaV I/O modules. Signal processing is performed by the installed I/O cards.
Q3: What power ratings does the carrier support?
The carrier provides LocalBus circuit power rated at 12.6 V DC, 8 A, and field circuit power rated at 30 V DC, 6.5 A.
Q4: Can the KJ4002X1-BC2 be installed or removed while energized?
No. Emerson specifies that carriers and LocalBus extender cables must not be connected or disconnected while system power is energized.
Q5: What DeltaV systems is it compatible with?
It is designed for use with Emerson DeltaV M-Series I/O architectures and related carrier-based I/O installations.
Q6: What are the dimensions and weight of the KJ4002X1-BC2?
The carrier has an estimated footprint of approximately 241 × 229 × 102 mm. The module weight is approximately 0.08 kg (0.18 lb), and packaged shipping weight may reach about 0.9 kg.
Q7: What environmental conditions can it operate in?
The carrier operates in industrial environments with an operating temperature of -40°C to +70°C and relative humidity of 5%–95% non-condensing.
Q8: Where is the KJ4002X1-BC2 commonly used?
It is used in oil & gas, petrochemical, power generation, refining, and other continuous process industries using Emerson DeltaV distributed control systems.
