Technical Specifications
| Parameter Category | Specification |
|---|---|

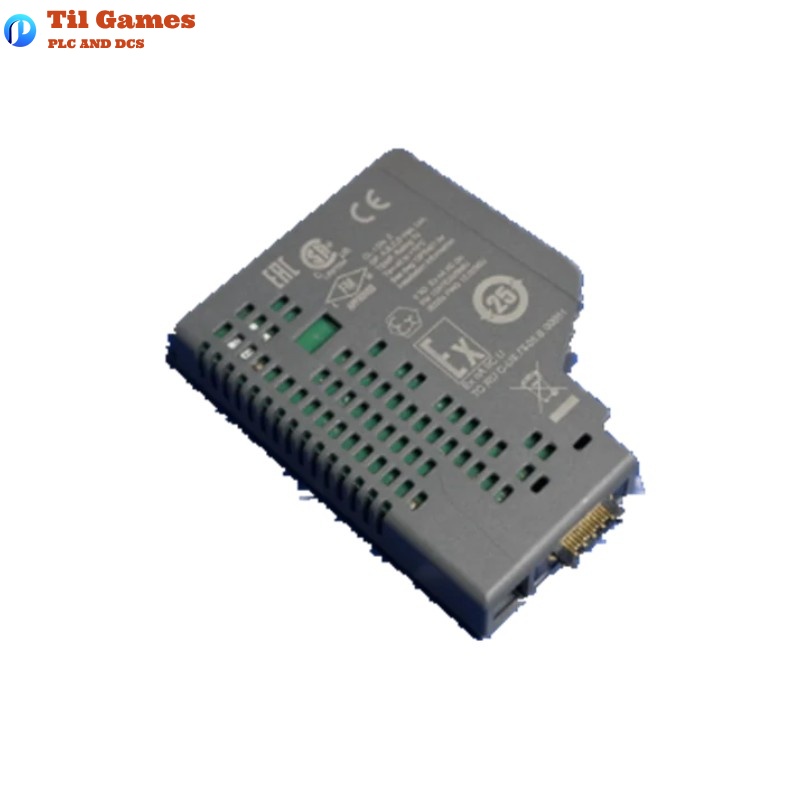

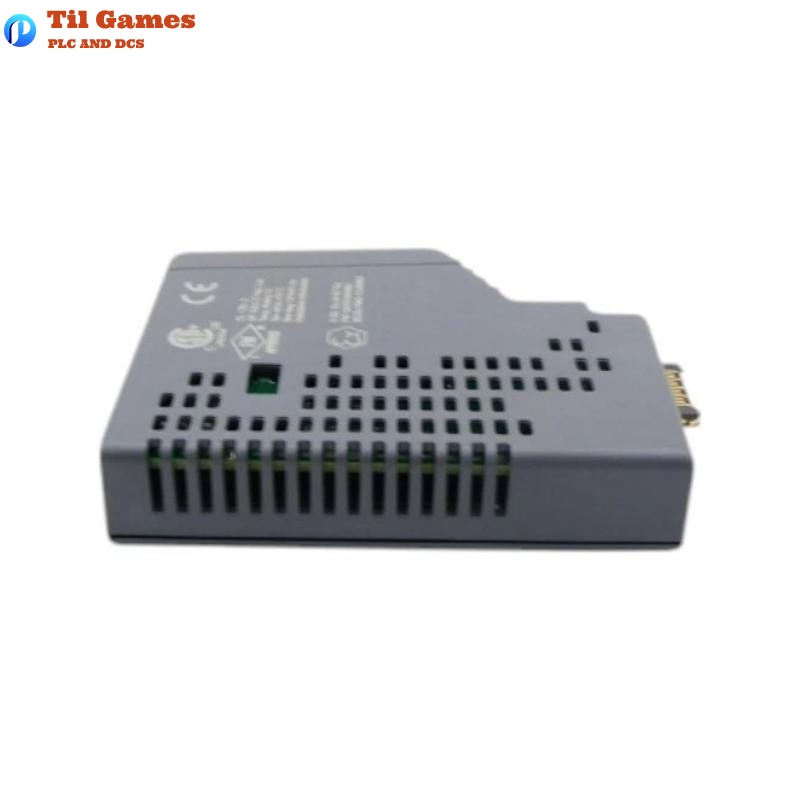

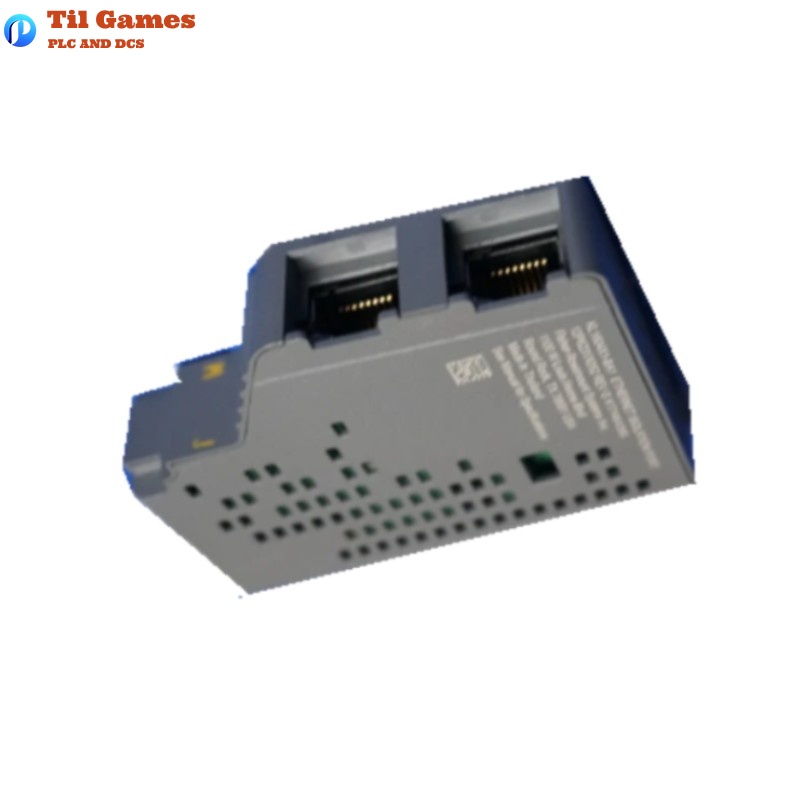

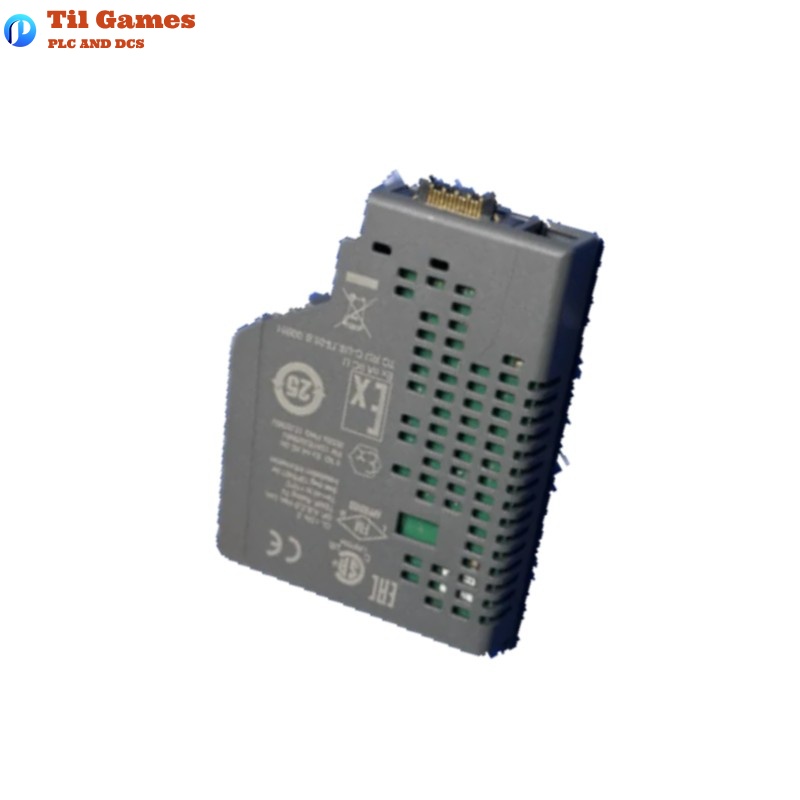

| Model | KL1604X1-BA1 |
| Type | Safety Isolation Port (Copper) |
| Power Supply | +5.0 VDC at 200 mA |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Shock | 10g, ½ sinewave, 11 ms duration |
| Vibration | 1mm peak-to-peak (2–13.2 Hz); 0.7g (13.2–150 Hz) |
| Airborne Contaminants | ISA-S71.04 –1985 Class G3 |
| Dimensions | 110 x 80 x 30 mm |
| Weight | 0.2 kg |
| Explosion Proof Ratings | II 3G Ex ec IIC Gc, FM/ATEX/IECEx approved |
| Insertion/Removal | Not allowed under power unless in a non-hazardous area |
| Maintenance | No calibration needed; contains no user-serviceable parts |
FAQ
FAQ
Q1: What is the main application of the KL1604X1-BA1 module?
A1: It is primarily used for safety isolation in hazardous locations, such as petrochemical or gas processing environments.
Q2: What is the operating temperature range for KL1604X1-BA1?
A2: The module supports a wide operating temperature from -40°C to +70°C, suitable for harsh industrial conditions.
Q3: Can KL1604X1-BA1 be hot-swapped?
A3: No. Hot swapping is only allowed when the area is confirmed to be non-hazardous.
Q4: Does the device require periodic calibration?
A4: No calibration is required. The module is maintenance-free by design.
Q5: How does the module handle shock and vibration?
A5: It withstands 10g shock and vibration up to 0.7g, making it reliable in industrial environments.
Q6: What should be noted during installation?
A6: Installation must comply with DeltaV Zone 2 installation instructions and must not be performed arbitrarily.
Q7: What level of airborne contamination is the unit rated for?
A7: It complies with ISA-S71.04 –1985 Class G3 for use in environments with corrosive gases.
Q8: What certifications does this module support?
A8: It holds ATEX, IECEx, and FM certifications, ensuring compliance with international safety standards.
