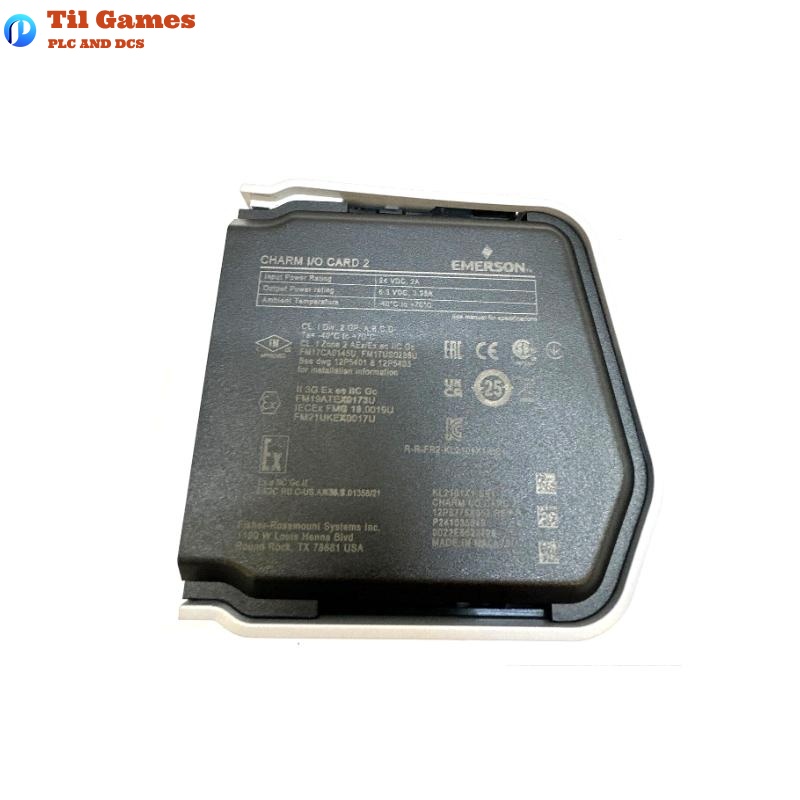

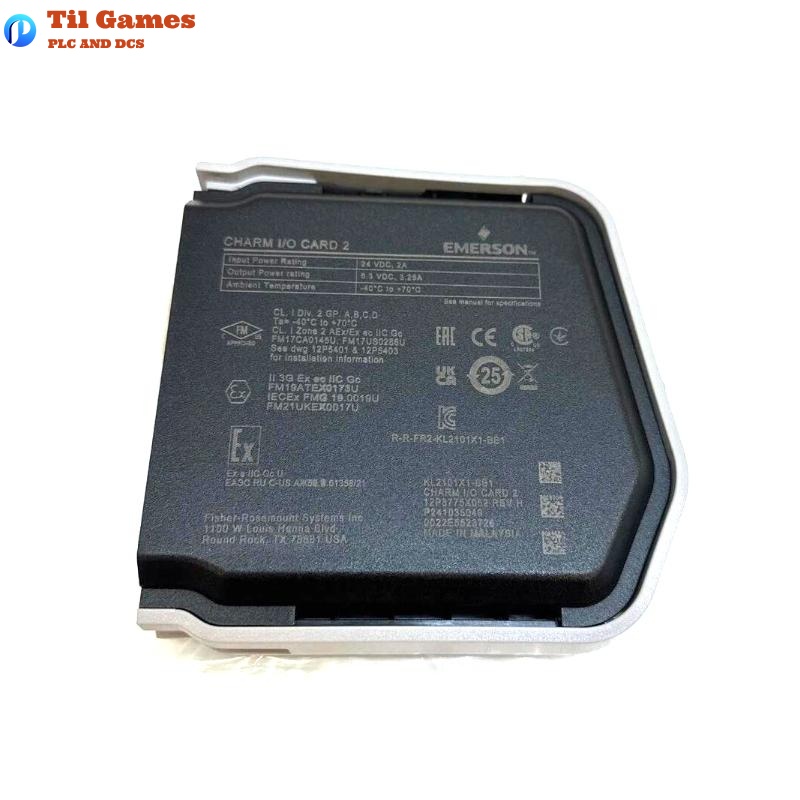

Emerson KL2101X1-BB1 CHARM I/O Card

FAQ

Q1: What is the input power specification for this module?
A1: It requires a 24 VDC power input with a maximum of 2 A.

Q2: What is the output power of the module?
A2: The module outputs 6.3 VDC at up to 3.25 A.

Q3: What is the operating temperature range?
A3: The operating range is from -40°C to +70°C.

Q4: Can this module be hot-swapped under power?
A4: No, it cannot be inserted or removed while powered in hazardous zones.

Q5: Is any user maintenance or calibration needed?
A5: No calibration or maintenance is needed. The unit has no user-serviceable parts.

Q6: How does the module handle vibration?
A6: It resists vibration with 1 mm peak-to-peak from 2–13.2 Hz and 0.7 g from 13.2–150 Hz.

Q7: How is it rated for environmental exposure?
A7: It is rated for ISA-S71.04-1985 Class G3 airborne contaminants and supports 5%–95% relative humidity (non-condensing).

Q8: What are the dimensions and weight of the module?
A8: The dimensions are 144 × 42 × 106 mm and it weighs 0.454 kg.
