Technical Specifications
| Parameter | Details |
|---|---|

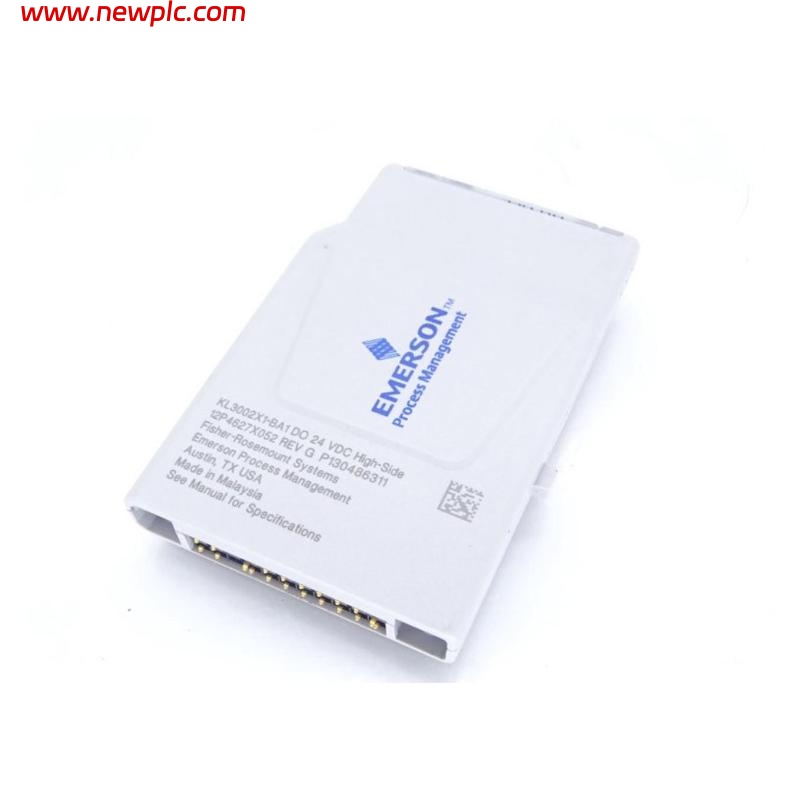

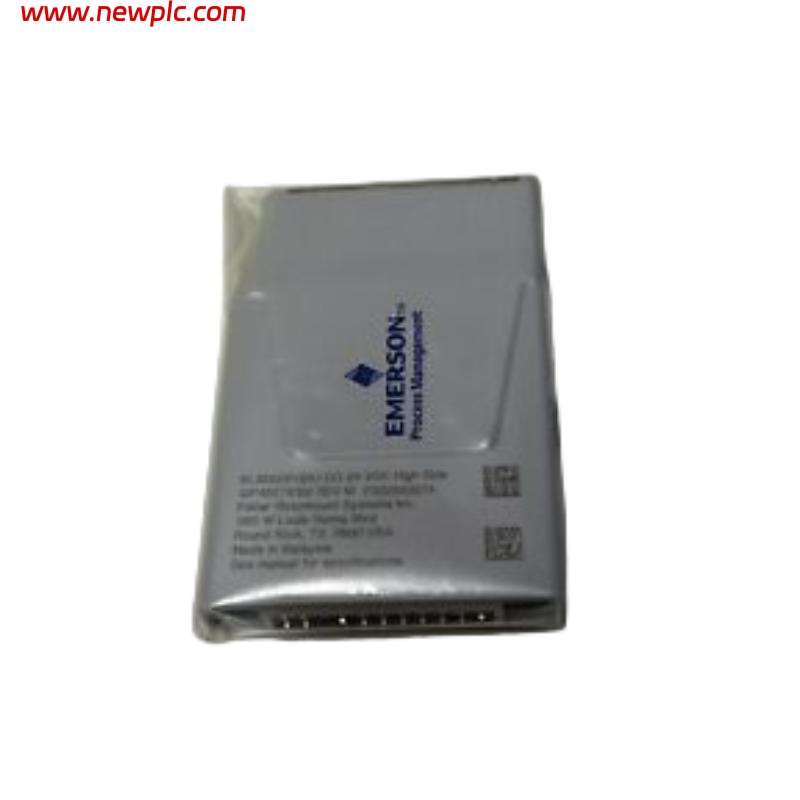

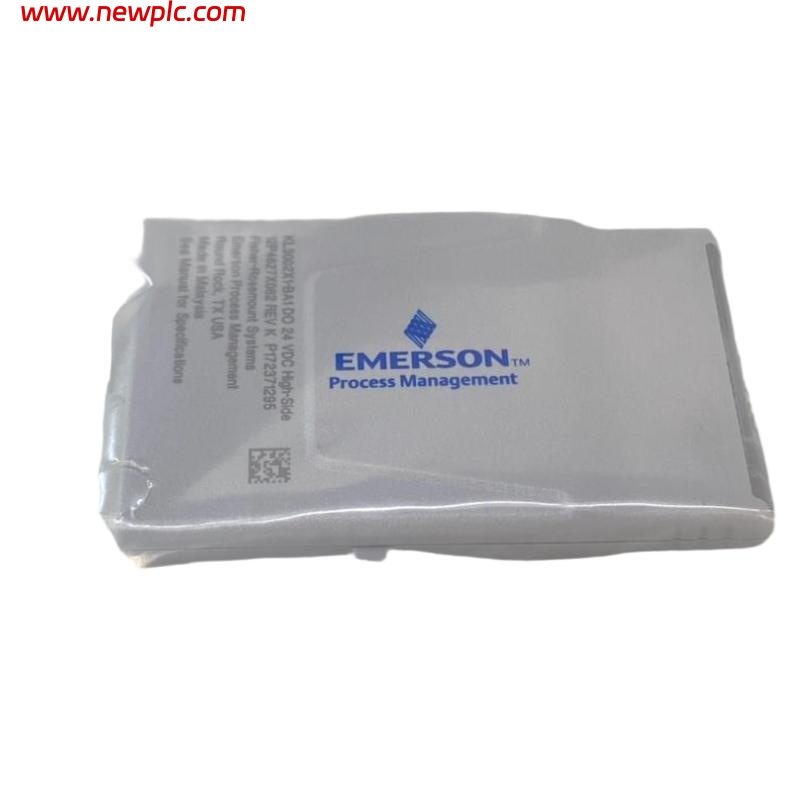

| Product Name | KL3002X1-LS1 High-side discrete output module |
| Module Type | High-side discrete output |
| Number of Channels | 16 |
| Voltage Range | 18–32 VDC |
| Output Current | Max. 0.5 A per channel |
| Isolation Voltage | ≥ 500 V between channels and bus |
| Operating Temperature | -20 ~ +60 ℃ |
| Storage Temperature | -40 ~ +85 ℃ |
| Dimensions (mm) | 150 x 100 x 50mm |
| Weight (kg) | 1.2 kg |
FAQ
FAQ
Q1: How many output channels does KL3002X1-LS1 have?
A1: It provides 16 independent high-side discrete outputs.
Q2: What is the operating voltage range?
A2: The operating voltage range is from 18 to 32 VDC.
Q3: What is the maximum output current per channel?
A3: Up to 0.5 A per channel.
Q4: What is the operating temperature range?
A4: -20 to +60 degrees Celsius.
Q5: What is the isolation voltage?
A5: At least 500 V between channels and the bus.
Q6: What is the weight of the module?
A6: 1.2 kg.
Q7: Where can this module be used?
A7: Commonly used in process control systems, PLC panels, and factory automation.
Q8: What are the dimensions of the module?
A8: 150 x 100 x 50mm.
