Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | SE4003S2B11 |
| Manufacturer | Emerson |
| Product Series | DeltaV™ S-Series Traditional I/O |

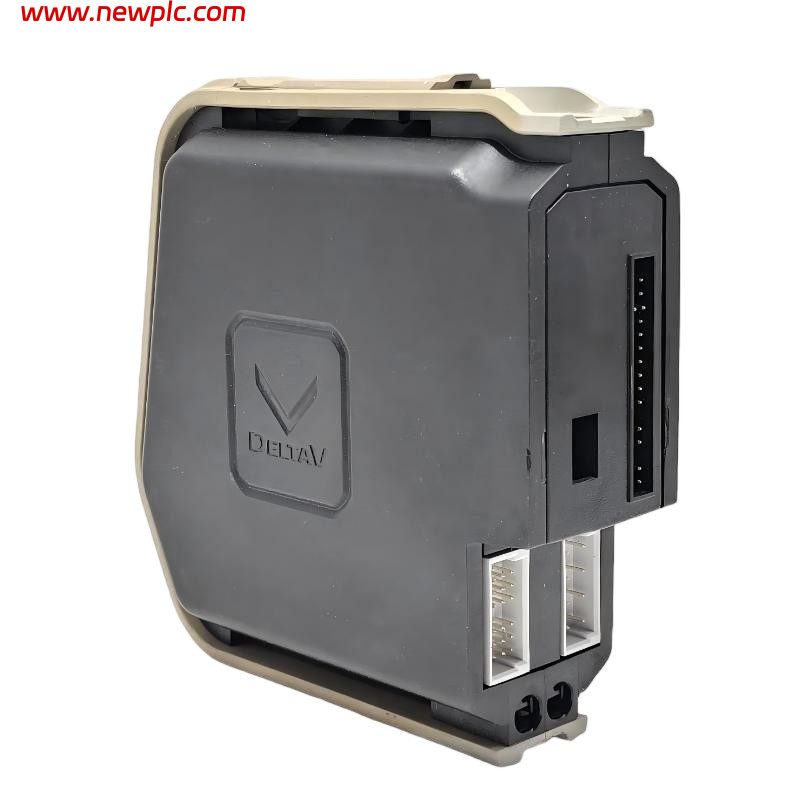

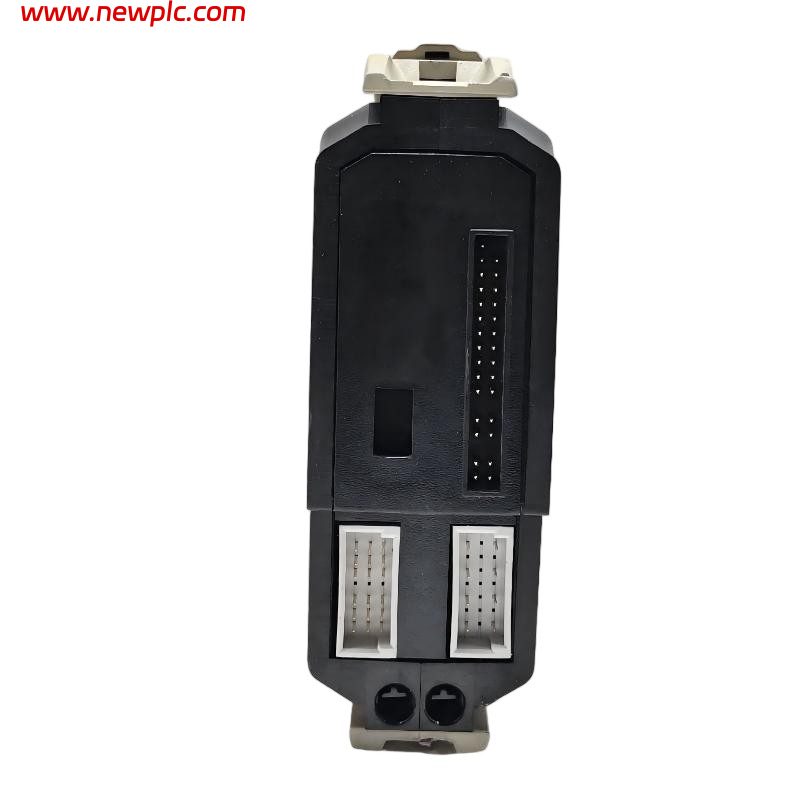

| Product Type | Analog Input Plus Card with 48-Pin AI Mass Terminal Block |
| Application | High-Density Analog Signal Acquisition |
| Input Channels | 16 Channels |
| Signal Type | 4–20 mA Analog Input |
| HART Compatibility | Supported on All Channels |
| Supported Devices | 2-Wire and 4-Wire Field Instruments |
| Input Resolution | 16-bit Typical |
| Accuracy | Up to ±0.25% of Full Scale |
| Isolation | Channel-to-System Isolation |
| Terminal Block Type | 48-Pin AI Mass Terminal Block |
| Mass Connection Board | Included 16-Channel AI Mass Connection Board |
| Wiring Method | Mass Termination Interface |
| Power Consumption | < 8 W |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Mounting Type | DeltaV S-Series Carrier Installation |
| Dimensions (L × W × H) | Approximately 300 mm × 120 mm × 35 mm |
| Weight | Approximately 0.90 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Emerson SE4003S2B11 used for?
The SE4003S2B11 is used to acquire analog process signals such as pressure, temperature, flow, and level measurements from field transmitters in a DeltaV control system.
Q2: How many input channels does the module support?
It supports 16 analog input channels, allowing high-density signal acquisition within a single assembly.
Q3: Does the module support HART communication?
Yes. The module supports HART-enabled 4–20 mA devices, enabling access to additional diagnostic and configuration information from compatible field instruments.
Q4: Can the SE4003S2B11 be used with both 2-wire and 4-wire transmitters?
Yes. The included AI Mass Connection Board is designed to support both 2-wire and 4-wire field devices.
Q5: What are the dimensions of the SE4003S2B11?
The assembly dimensions are approximately 300 mm × 120 mm × 35 mm.
Q6: How much does the SE4003S2B11 weigh?
The approximate weight is 0.90 kg.
Q7: What is the advantage of the 48-pin mass termination design?
The mass termination interface reduces installation time, simplifies field wiring, improves cabinet organization, and supports high-density I/O deployments.
Q8: Does the SE4003S2B11 require routine calibration?
The module itself does not typically require routine calibration. Periodic verification of input signal accuracy, field wiring integrity, and HART communication status is recommended as part of standard maintenance procedures.
