Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Emerson Control Techniques (Now Nidec Control Techniques) |

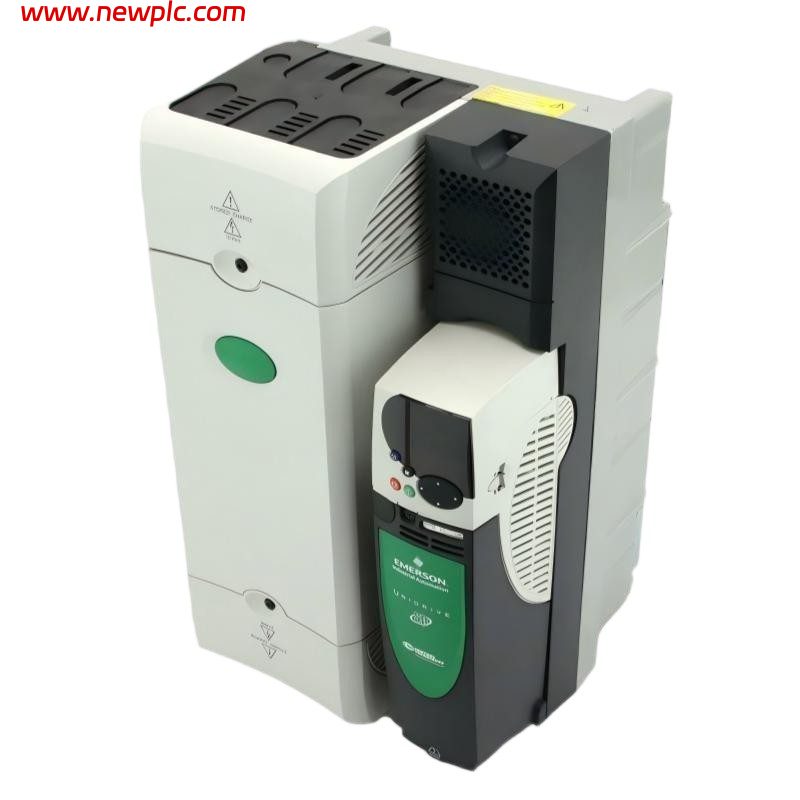

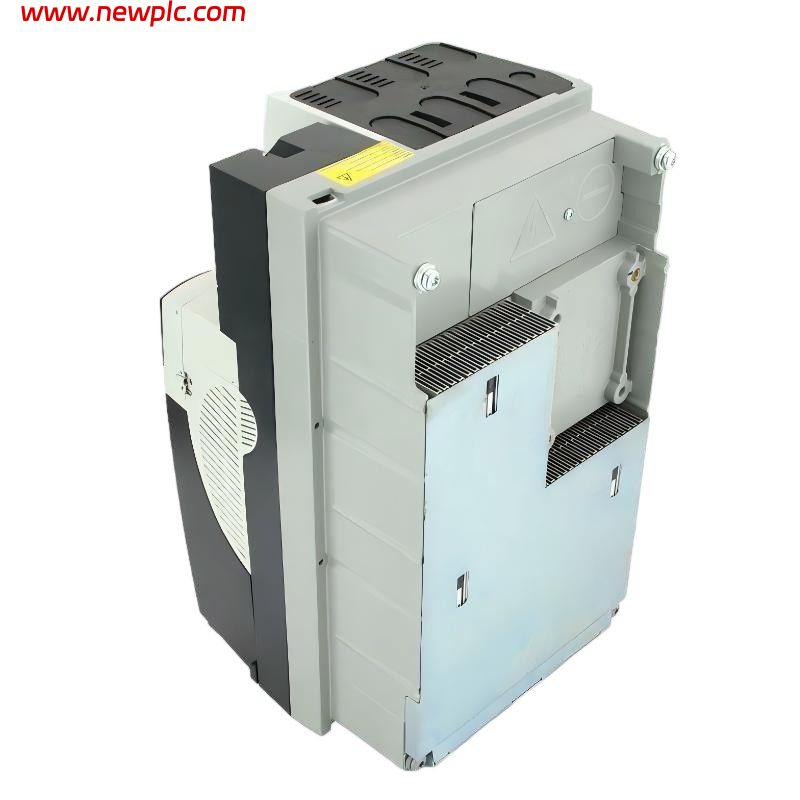

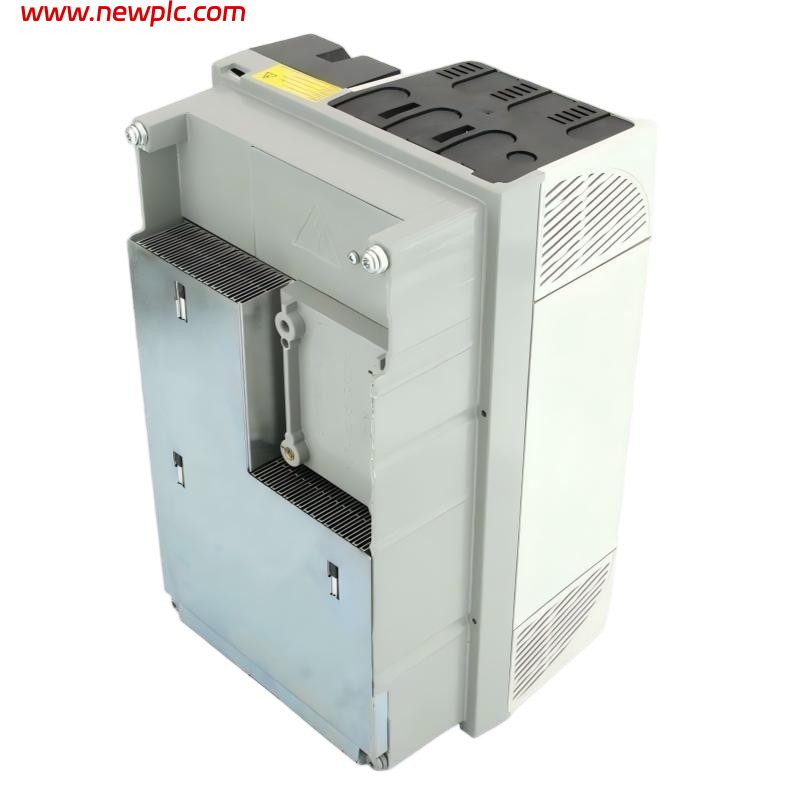

| Product Model | SP4402 |
| Product Type | AC Variable Speed Drive / Servo Drive |
| Series | Unidrive SP |
| Function | Universal drive for induction motors, synchronous motors, and servo motor applications |
| Input Voltage | 380–480 VAC, 3-Phase |
| Rated Voltage | 400/460 VAC |
| Input Frequency | 48–65 Hz |
| Control Modes | Open Loop V/Hz, Open Loop Vector, Rotor Flux Control (RFC), Closed Loop Vector, Servo Control, Regenerative Control |
| Continuous Output Current (Normal Duty) | 83 A |
| Continuous Output Current (Heavy Duty) | 74 A |
| Peak Output Current | 129.5 A |
| Typical Motor Power (Normal Duty) | 45 kW (60 HP) |
| Typical Motor Power (Heavy Duty) | 37 kW (50 HP) |
| Output Frequency | 0–550 Hz |
| Communication (Standard) | Modbus RTU (RS-485) |
| Optional Communication | EtherCAT, EtherNet/IP, PROFINET, PROFIBUS-DP, DeviceNet, CANopen, Modbus TCP/IP, SERCOS |
| Feedback Support | Incremental Encoder, Absolute Encoder, Resolver (optional) |
| Safety Function | Safe Torque Off (STO) supported |
| Dynamic Braking | Built-in Dynamic Braking Transistor |
| PLC Function | Built-in programmable logic functions |
| Protection Rating | IP20 |
| Cooling Method | Forced Air Cooling |
| Mounting Type | Panel Mount |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -40°C to +70°C |
| Application | Pumps, fans, conveyors, compressors, cranes, hoists, extruders, winders, machine tools, and industrial automation systems |
| Dimensions (W × H × D) | 330 × 510 × 298 mm |
| Weight | 34.0 kg |
| Condition | New and original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the Emerson SP4402 used for?
The SP4402 is used for controlling high-power AC motors and servo motors in industrial applications such as conveyors, pumps, compressors, cranes, hoists, extruders, winders, machine tools, and automated production systems.
Q2: What type of product is the SP4402?
The SP4402 is a Unidrive SP universal AC variable speed drive and servo drive that combines inverter control, advanced motion control, and programmable automation functions in one platform.
Q3: What are the electrical ratings of the SP4402?
The drive operates from a 380–480 VAC three-phase power supply and provides 83 A Normal Duty output current and 74 A Heavy Duty output current, suitable for motors up to 45 kW (60 HP).
Q4: What are the dimensions and weight of the SP4402?
The SP4402 has approximate dimensions of 330 × 510 × 298 mm and weighs approximately 34.0 kg.
Q5: Which motor control modes are supported?
The SP4402 supports V/Hz control, open-loop vector control, closed-loop induction motor control, rotor flux control (RFC), servo control, and regenerative control, allowing flexible operation with different motor types.
Q6: Which communication protocols are available?
The SP4402 supports Modbus RTU via RS-485 as standard and can be expanded with optional communication modules including EtherCAT, EtherNet/IP, PROFINET, PROFIBUS-DP, DeviceNet, CANopen, and Modbus TCP/IP.
Q7: Does the SP4402 include braking and safety functions?
Yes. The SP4402 supports Safe Torque Off (STO) and provides dynamic braking capability for controlled stopping and improved system performance.
Q8: What are the advantages of the Emerson SP4402?
The SP4402 provides high-power motor control, excellent overload capability, multiple feedback options, flexible communication expansion, integrated safety functions, built-in PLC functions, and reliable operation for demanding industrial automation applications.
