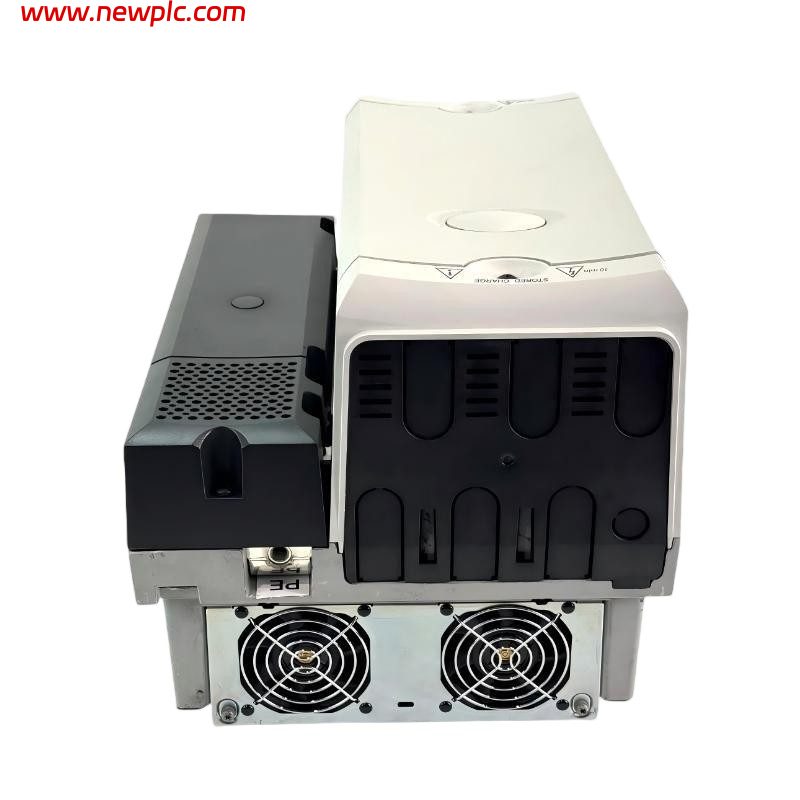

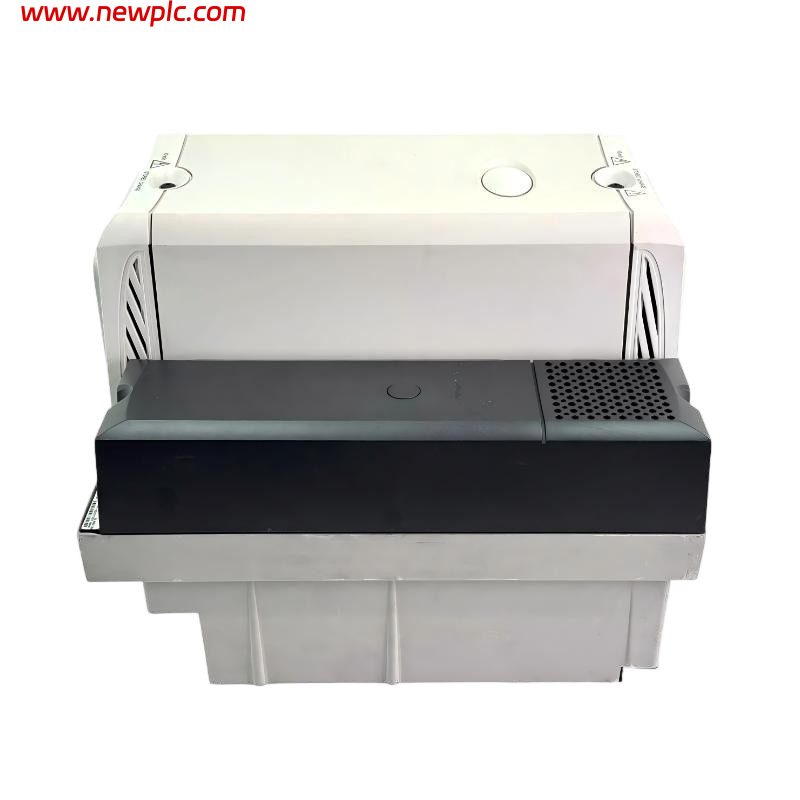

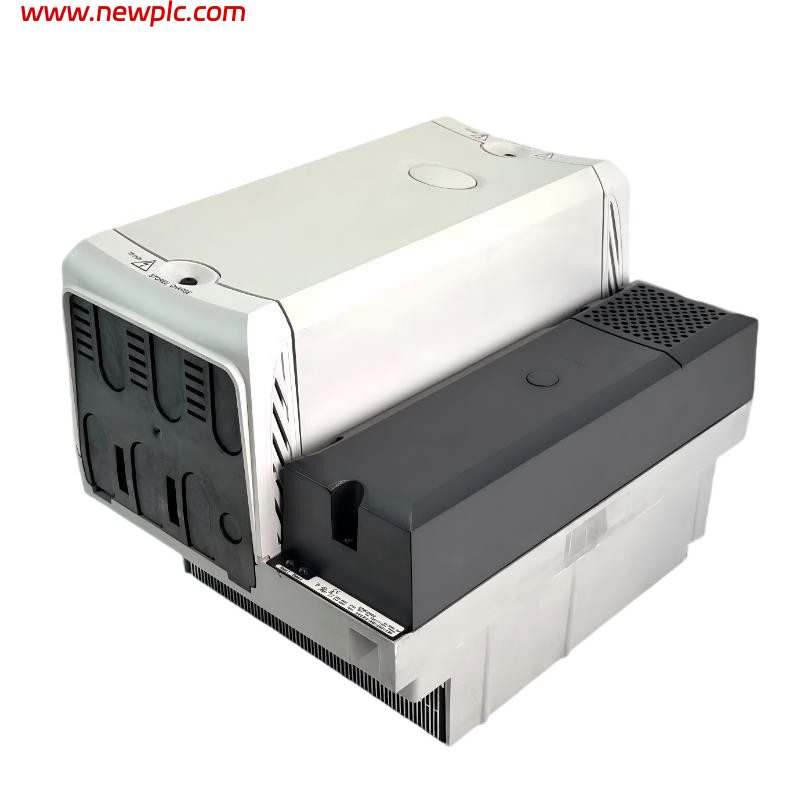

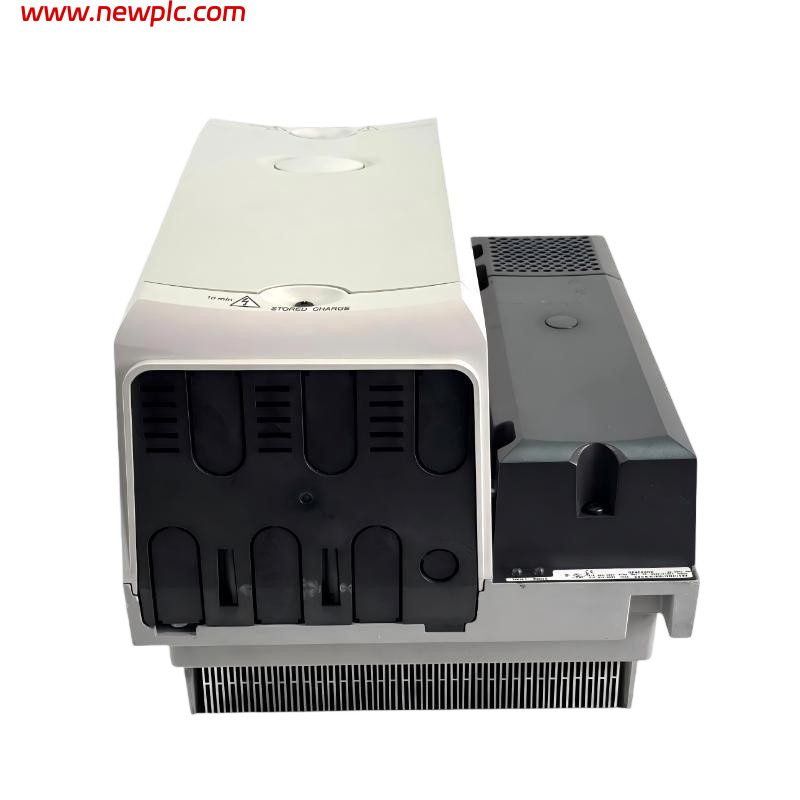

Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | SPMC2402 |
| Manufacturer | Control Techniques / Emerson |
| Product Series | Unidrive SP |
| Product Type | Controlled Input Rectifier Module |
| Rectifier Type | Dual half-controlled thyristor bridge |
| Input Voltage | 380–480 VAC ±10% |
| Input Phase | 3-phase |
| Input Frequency | 50/60 Hz |
| DC Output Voltage | 513–648 VDC |
| Continuous Output Current | Approx. 678 A |
| Peak/Maximum Output Current | Approx. 758 A |
| Soft Start | Integrated |
| Main Application | DC bus supply / front-end rectifier for Unidrive SP systems |
| Compatible Drive Module | SPMD inverter modules |
| Cooling | Forced-air cooling |
| Auxiliary Supply | 24 VDC, 3 A required |
| Control Technology | Thyristor controlled rectification |
| Mounting | Electrical cabinet / panel mounting |
| Product Status | Discontinued |
| Dimensions | Approx. 390 × 280 × 220 mm |
| Product Weight | Approx. 17.7 kg |
FAQ
FAQ
Q1: What is the Control Techniques SPMC2402?
A: It is a controlled three-phase input rectifier module for the Unidrive SP drive system.
Q2: What type of rectifier does the SPMC2402 use?
A: It uses a dual half-controlled thyristor bridge, allowing controlled rectification of the incoming AC supply.
Q3: What is the input voltage of the SPMC2402?
A: The rated input is 380–480 VAC ±10%, three-phase, at 50/60 Hz.
Q4: What DC voltage does the SPMC2402 provide?
A: The specified DC output range is approximately 513–648 VDC, depending on the AC input voltage and operating condition.
Q5: What is the output current rating?
A: Available technical listings specify approximately 678 A continuous output and up to approximately 758 A under the specified conditions.
Q6: What is the SPMC2402 used for?
A: It is primarily used as the AC front-end/DC bus rectifier for Unidrive SP inverter modules, especially in high-power drive systems.
Q7: Does the SPMC2402 have built-in soft start?
A: Yes. The SPMC controlled rectifier has integrated soft-start.
Q8: What are the dimensions and weight of the SPMC2402?
A: The unit is approximately 390 × 280 × 220 mm and weighs approximately 17.7 kg. Because this is an older high-power module, packaging and mounting accessories can significantly increase shipping dimensions and weight.
